Flex 494.631 DCG L 26-6 230 Set Diamond cutting system 230 mm 2600W

Diamond cutting system, 230 mm

• Ready to go straight away, angle grinder with already installed extraction hood in the case. Diamantjet - Standard 230 mm diamond cutting wheel for concrete included
• Powerful angle grinder L 26-6 230 with soft start, restart protection after power failure, overload protection, CDC-electronic feedback control, anti-kickback function
• Fully encapsulated extraction hood for efficient dust extraction
• Direct connection via Flex Clip system
• Extremely sturdy construction. The stabiliser element prevents distortion caused by the side weight of the angle grinder.

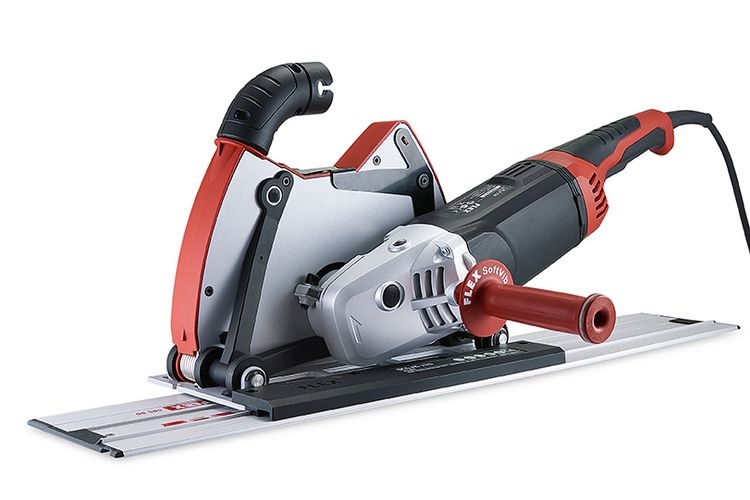

• Base plate with rollers for easy feed. Can be used with or without a guide rail
• Depth stop with scale for cutting depth adjustments and individual cuts (plunge cuts) with or without guide rail (max. 55 mm with, 60 mm without guide rail)
• Side handle can be fitted on either the left or right

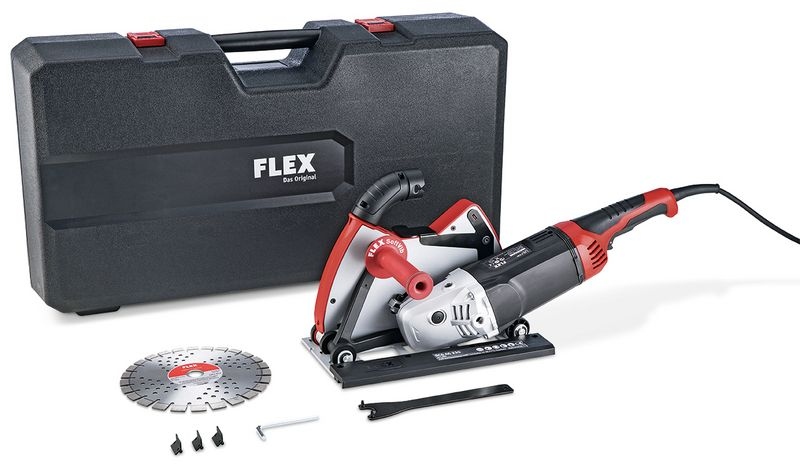

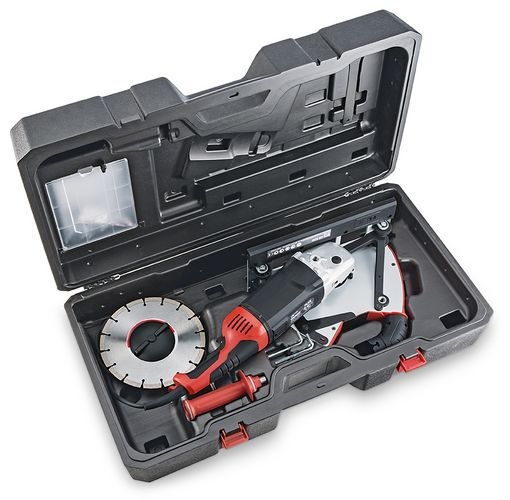

• Case including lid compartment for small parts, storage space for diamond cutting wheel, side handle and 800 mm guide rail.

Specifications

• ​Max. disc diameter 230 mm
• No load speed 6500 rpm
• Power input 2600 watt
• Power output 1800 watt
• Tool fixture M 14
• Cutting depth / with guide rail 60 / 55 mm
• Clamping collar Ø 64 mm
• Cable length 4,0 m

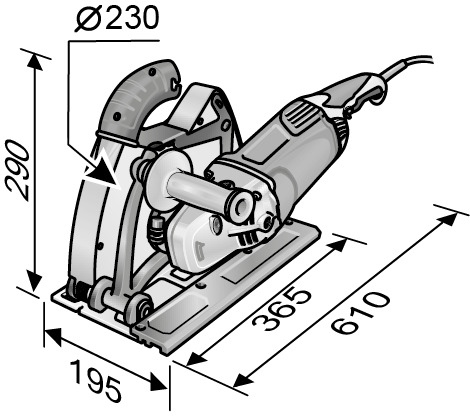

• Size (L x W x H, including extraction hood) 610 x 195 x 290 mm
• Weight with dust extraction guard 9,18 kg

Equipment

• 1 dust extraction guard DCG AG 230 471.895
• 1 diamond cutting disc, universal 500.720
• 1 DCG AG set rubber strips (3 pcs) 494.593
• 1 DCG AG 230 distance ring L26/24/22 494.615
• 1 SoftVib handle 325.384
• 1 clamping flange 338.753
• 1 clamping nut M14 100.080
• 1 hexagon socket wrench, SW 6 104.167
• 1 pin wrench BL 5 100.110
• 1 carrying case with insert 499.579
