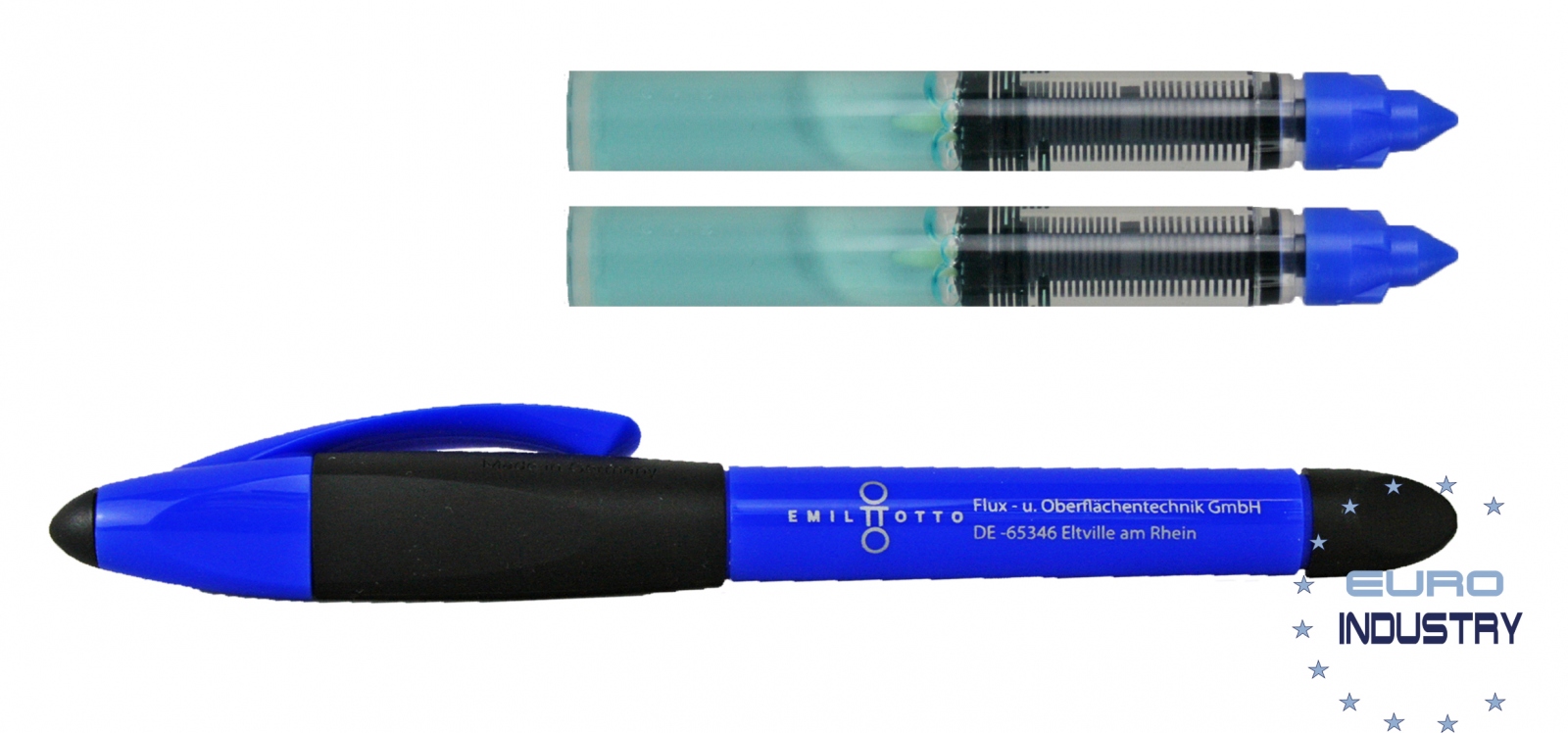

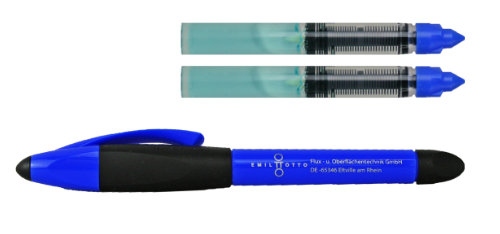

Metal etching pen for aluminium with 2 cartridges 'nigrit AL' 861

• E.O. metal etching pen with two cartridges 'nigrit AL861'
• For the marking of aluminium
• Equally suitable for stainless steel, tool steel, hardenend surfaces and thin walled components

Use details

• The marking surfaces should be cleaned (freely of fat and impurities, unpolished, etc.), so that the necessary contact of the corroding draw with the metal can take place directly and immediately

Assembly instructions

• Both mines have to be inserted as follows into the pen
• The refill mine must be inserted with the blue protective cap in the pen
• The front mine will be placed after removed of the blue cap

Note: The points of the mines are provided with 2 slots and may not be further cut.

METAL ETCHING PEN SETTING UP

Metal etching pen / cartridges disassembled

• A – Closing cap
• B – Rubber grip
• C – Two-sided screw thread centre piece
• D - Pen's end screwing piece

Exemple cartridges

• Cartridge 1a : Cartridge Nigrit 'VA' green without cap
• Cartridge 1b : Cartridge 'VA' green with cap
• Cartridge 2a : Cartridge "K-extra" blue without cap.
• Cartridge 2b : Cartridge "K-extra" blue with cap

Instructions for use

• Part of the pen for the spare cartridge (cartridge must be always closed), that you insert backwards from the back of the part C.

• Cartridge without cap (ready for use) to insert in the part B (Part with the rubber grip), then close it by screwing in the part C. At the end of use, replace the cap, Part A.

​
