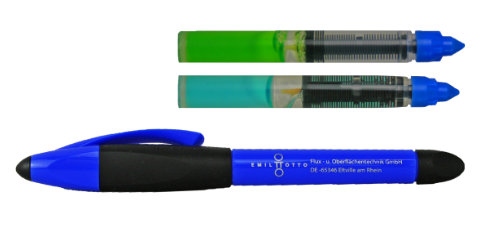

Metal Etching Pen with 2 Minen 1 nigrit VA865 + 1 nigrit blue 862

• The blue cartridge is an etching solution NIGRIT "K-extra" milder quality and allows to engrave steels used in constructionand tooling
• The Green cartridge is " an etching solution NIGRIT "VA" strong quality and allows to engrave on all heavy metals like stainless steel, copper, nickel, lead, alloy, bronze.

Use details

• The marking surfaces should be cleaned (freely of fat and impurities, unpolished, etc.), so that the necessary contact of the corroding draw with the metal can take place directly and immediately

Assembly instructions

• Both mines have to be inserted as follows into the pen
• The refill mine must be inserted with the blue protective cap in the pen
• The front mine will be placed after removed of the blue cap

Note: The points of the mines are provided with 2 slots and may not be further cut.

METAL ETCHING PEN SETTING UP

Metal etching pen / cartridges disassembled

• A – Closing cap
• B – Rubber grip
• C – Two-sided screw thread centre piece
• D - Pen's end screwing piece

Exemple cartridges

• Cartridge 1a : Cartridge Nigrit 'VA' green without cap
• Cartridge 1b : Cartridge 'VA' green with cap
• Cartridge 2a : Cartridge "K-extra" blue without cap.
• Cartridge 2b : Cartridge "K-extra" blue with cap

Instructions for use

• Part of the pen for the spare cartridge (cartridge must be always closed), that you insert backwards from the back of the part C.

• Cartridge without cap (ready for use) to insert in the part B (Part with the rubber grip), then close it by screwing in the part C. At the end of use, replace the cap, Part A.

Regulation (EC) No. 1272/2008
Hazard-determining components for labeling
Hydrochloric acid; Hydrochloric acid ... %
Copper sulfate; Copper(II) sulfate
Selenium dioxide
Bismuth(III) nitrate pentahydrate
Signal word: Warning
Pictograms:

H302 Harmful if swallowed.
H315 Causes skin irritation.
H319 Causes serious eye irritation.
H335 May cause respiratory irritation.
H411 Toxic to aquatic life with long lasting effects.
Hazard statements
P102 Keep out of the reach of children.
P202 Read and understand all safety instructions before use.
P270 Do not eat, drink or smoke when using this product.
P260 Do not breathe dust/fume/gas/mist/vapours/spray.
P271 Use only outdoors or in a well-ventilated area.
P273 Avoid release to the environment.
P280 Wear protective gloves/protective clothing/eye protection/face protection.
P301+P330+P331 IF SWALLOWED: Rinse mouth. DO NOT induce vomiting.
P312 Call a POISON CENTER/doctor if you feel unwell.
P303+P361+P353 IF ON SKIN (or hair): Take off immediately all contaminated clothing. Rinse skin with water or shower.
P363 Wash contaminated clothing before reuse.
P304+P340 IF INHALED: Remove person to fresh air and keep comfortable for breathing.
P310 Immediately call a POISON CENTER/doctor.
P312 Call a POISON CENTER/doctor if you feel unwell.
P305+P351+P338 IF IN EYES: Rinse cautiously with water for several minutes.
If possible, remove contact lenses. Continue rinsing.
P310 Immediately call a POISON CENTER/doctor.
P391 Collect spillage.
P403+P233 Store in a well-ventilated place. Keep container tightly closed.
P405 Store locked up.
P501 Dispose of contents/container to hazardous or special waste collection point.

​

Emil Otto Flux- und Oberflächentechnik GmbH, Eltviller Landstraße 22, 65346 Eltville am Rhein, GERMANY, +49 6123 70 46-0, [email protected], www.emilotto.de
