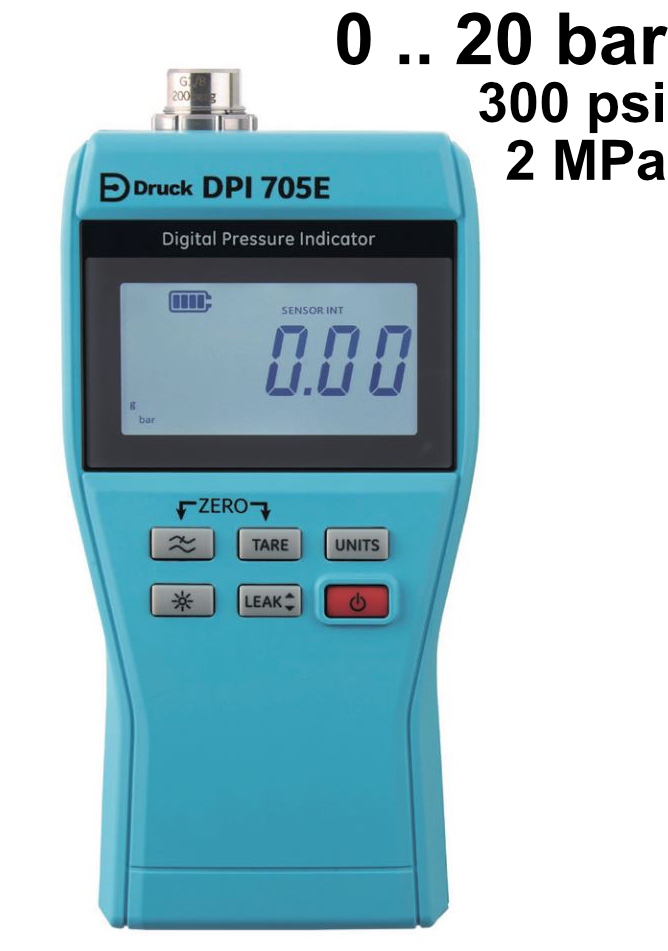

DRUCK DPI 705E Digital pressure gauge with internal sensor 20bar

DRUCK DPI 705E Digital pressure gauge with internal sensor 20bar

pics/ge/druck-dpi-705e-digital-pressure-gauge-20bar.jpg

€ 1010.31 1,010.31 incl. VAT (849.00 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 piece

More…

Manufacturer: GE Druck

Country of origin: GB/0006

Customs tariff number: 90262020

Weight per piece: 600 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

one + two = ?

( Examples: two + three = 5, three - five = -2 )

The Druck DPI 705E Series of handheld pressure and optional temperature indicators combine tough and rugged design with accurate and reliable measurements.

Compact and robust, the DPI 705E Series is designed for single handed operation and provides many essential features required for routine maintenance and system troubleshooting.

Pressure range 0 - 20 bar with standard accuracy

Highlights

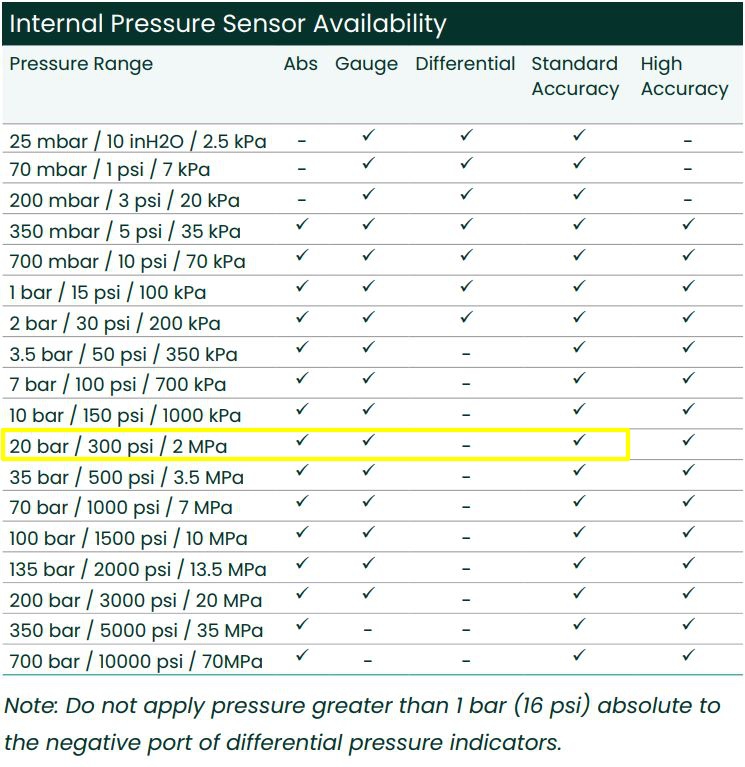

On request available with 48 pressure ranges from ±25 mbar to 1,400 bar (±1.69 psi to 20,000 psi / 2.5 KPa to 140 MPa)
Total 1 year uncertainty down to 0.05% full scale (FS) over temperature range of -10°C to +50°C
Integral calibration record with calibration due count-down display
Rugged, handheld design with backlit high-contrast display
Leak test, tare, maximum/minimum and filter
Hazardous Area (Intrinsically safe) version available (DPI 705E-IS)

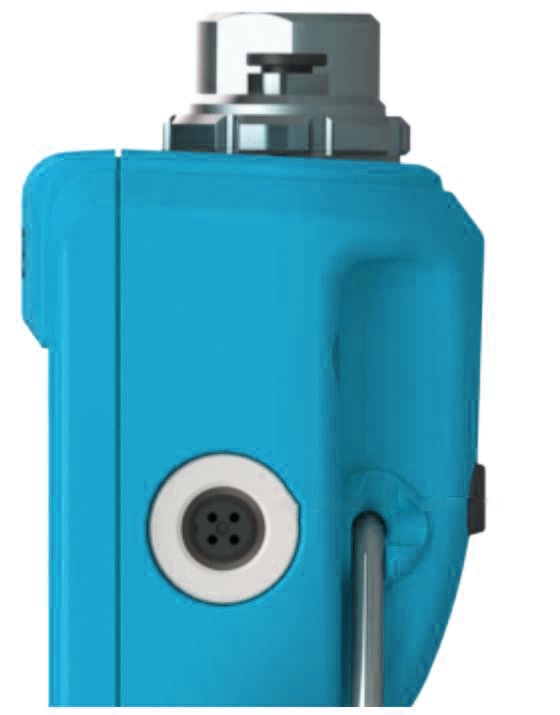

Optional remote plug and play pressure and Resistance Temperature Detector (RTD) sensors
Optional pneumatic and hydraulic hand pumps
Power on and use. No warm up time required.
19 pressure measurement units (See below)
1, 3 or 5 minute leak test
Impact resistant, sealed to IP54
Large digit high-contrast LCD with backlight
Optional carrying case with belt loop
Optional magnetic/loop hanging strap
Long battery life
Integral desk stand and hanger

Technical specifications

Available versions (information data sheet)	a = absolute g = gauge Do not apply pressure greater than 1 bar (16 psi) absolute to the negative port of differential pressure indicators
Pressure ranges	20bar (300psia) (Ranges 25 mbar through to 1400 bar on request)
Accuracy	0.1% FS accuracy (standard)
Pressure Units	mbar, bar, Pa, hPa, Pa, MPa, psi , lb/ft2, kgf/cm2, kgf/m2, mmHg(0°C), mHg(0°C), inHg 0, mmH2O, cmH2O, mH2O, inH 2O (4°C, 20°C), ftH2O (4°C, 20°C)
Calibration Units	mbar, bar, psi, kPa, mPa, hPa, Kgh/cm2
Leak test	User defined 1, 3 or 5 minute leak test
Zero	Zero pressure correction (gauge/differential sensors)
Tare	0 to 100% FS zero offset capability
Filter	10 reading rolling average for unstable pressures
Alarm	User adjustable
Media compatibility	Internal sensor: stainless steel, except positive differential non-corrosive fluid and negative differential dry gas
Ambient Temperature	°C and °F reading of local condition ±1.5°C (±3°F)
Display	16mm LCD with ±99999 readout
Power Management	Low battery indicator and selectable ‘auto off’

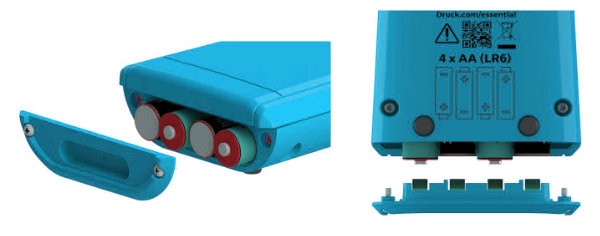

Battery	4 x AA Alkaline/NiCd/NiMH cells Power efficient design, can be used for 8 Hours per day, 6 days per week for 1 Year using a single set of batteries
Storage temperature	-10°C to 50°C (15°F to 120°F)
Safety Conformance	CE marked, RCM
Environmental	IP54 (NEMA 12)
Dimensions	200 x 95 x 43 mm
Weight	563 g
