Major Protect TDLMultinorm jacket 370g/m² blue/gray 42-110,Planam 5210
Major Protect TDLMultinorm jacket 370g/m² blue/gray 42-110,Planam 5210
€ 71.34 71.34 incl. VAT (59.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Planam
Country of origin: CN/0720
Customs tariff number: 62033210
Weight per piece: 1.0 kg
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.

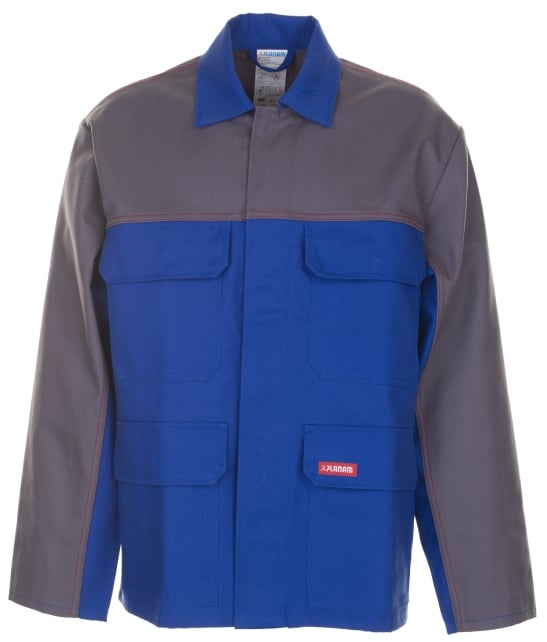

The Planam Major Protect 5210 TDL protective jacket is anti-static, flame-retardant and fluorocarbon finished, offering enhanced protection for welding, heat and industrial applications. The TDL version features reinforced double-layer fabric on the front and sleeves for increased durability and improved protection against sparks, heat and mechanical stress.
Note: Complete protection is only guaranteed when the clothing is worn as a complete suit.
Features
- Reinforced double-layer protection on front and sleeves (TDL construction)
- Front opening with buttons

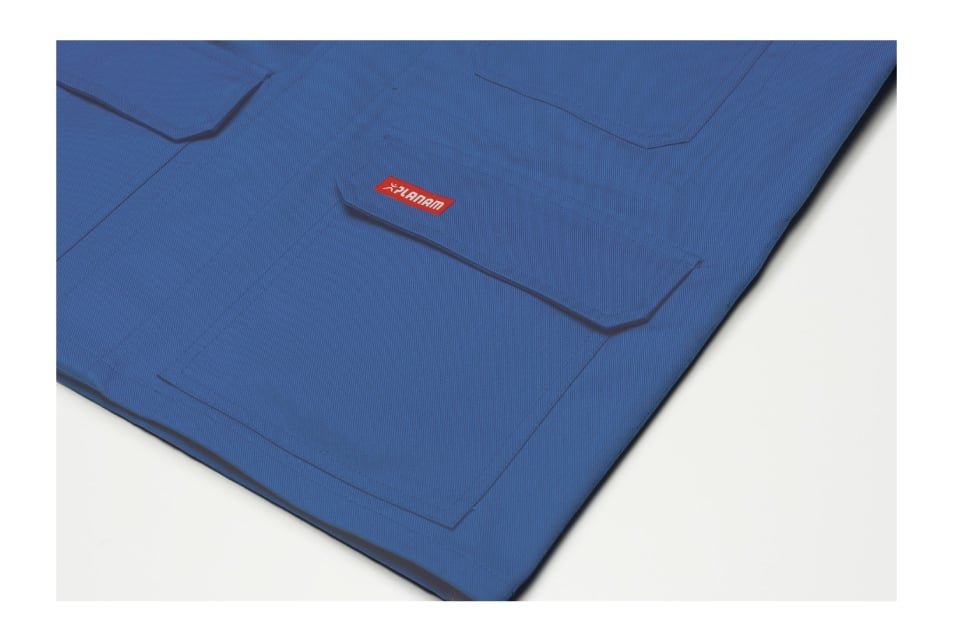

- 2 chest pockets with flaps
- 2 front pockets with flaps
- Flaps to be closed with press studs
- Contents remain safe and secure thanks to the protruding pocket flap
- Designed for demanding working environments with heat, sparks and welding exposure
- Enhanced durability in high-wear areas
- Available sizes: 42 - 64 (standard), 90 - 110 (long)
Standards & Certifications
- UV Standard 801: Certified according to UVS 064970
- Anti-static and flame-retardant protective clothing
- EN ISO 11611, class 1, A1: protection during welding and related processes
- EN ISO 11612 A1 (horizontal flame); B1 (convective heat); C1 (radiant heat source); E3 (liquid iron)
- EN ISO 20471-2 (requirements for high visibility warning clothing)
- EN 13034 Typ 6 (protective clothing against liquid chemicals)
- EN ISO 1149-5 (electrostatic properties)
- EN 61482-1-2 class 1 (protection against the thermal risks of an electric arc)
- UV standard 801, UV label level 80
Technical Data
| Material | 64% cotton, 35% polyester, 1% carbon fibres |
| Fabric | 2/2 diagonal twill with reinforced double-layer front and sleeves |
| Weight | Approx. 370 g/m² |
| Finish | Anti-static, flame-retardant and fluorocarbon finished |
| Color | Royal blue/Grey |
| Maintenance | Max. 5 wash cycles |
Areas of use
Care instructions
You can find here a detailed size chart.
Planam is a German brand specialized in the design of professional workwear for over 30 years.
PLANAM Arbeitsschutz Vertriebs GmbH, Letter Strasse 50, 33442 Herzebrock-Clarholz, GERMANY, +49 5245 8606-0, [email protected], www.planam.de
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| 42 / XS | 4030913073156 | 5210042 |
| 44 / S | 4030913073163 | 5210044 |
| 46 / S | 4030913073170 | 5210046 |
| 48 / M | 4030913073187 | 5210048 |
| 50 / M | 4030913073194 | 5210050 |
| 52 / L | 4030913073200 | 5210052 |
| 54 / L | 4030913073217 | 5210054 |
| 56 / XL | 4030913073224 | 5210056 |
| 58 / XL | 4030913073231 | 5210058 |
| 60 / XXL | 4030913073248 | 5210060 |
| 62 / XXL | 4030913073255 | 5210062 |
| 64 / XXXL | 4030913073262 | 5210064 |
| 90 / S (long) | 4030913073279 | 5210090 |
| 94 / S (long) | 4030913073286 | 5210094 |
| 98 / M (long) | 4030913073293 | 5210098 |
| 102 / M (long) | 4030913073309 | 5210102 |
| 106 / L (long) | 4030913073316 | 5210106 |
| 110 / L (long) | 4030913073323 | 5210110 |
