Fridavo No.136b - Steel, galvanized - Spiral spring hinge, Single direction - Model M - online purchase

Manufacturer: Fritz Dannert

Country of origin: DE/0004

Customs tariff number: 83026000

Weight per piece: 1.0 kg

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

three + five = ?

( Examples: two + three = 5, three - five = -2 )

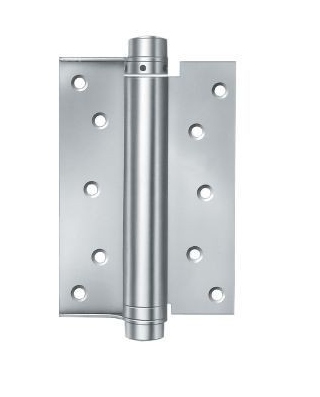

Fridavo "steel, galvanized" - spiral spring hinge

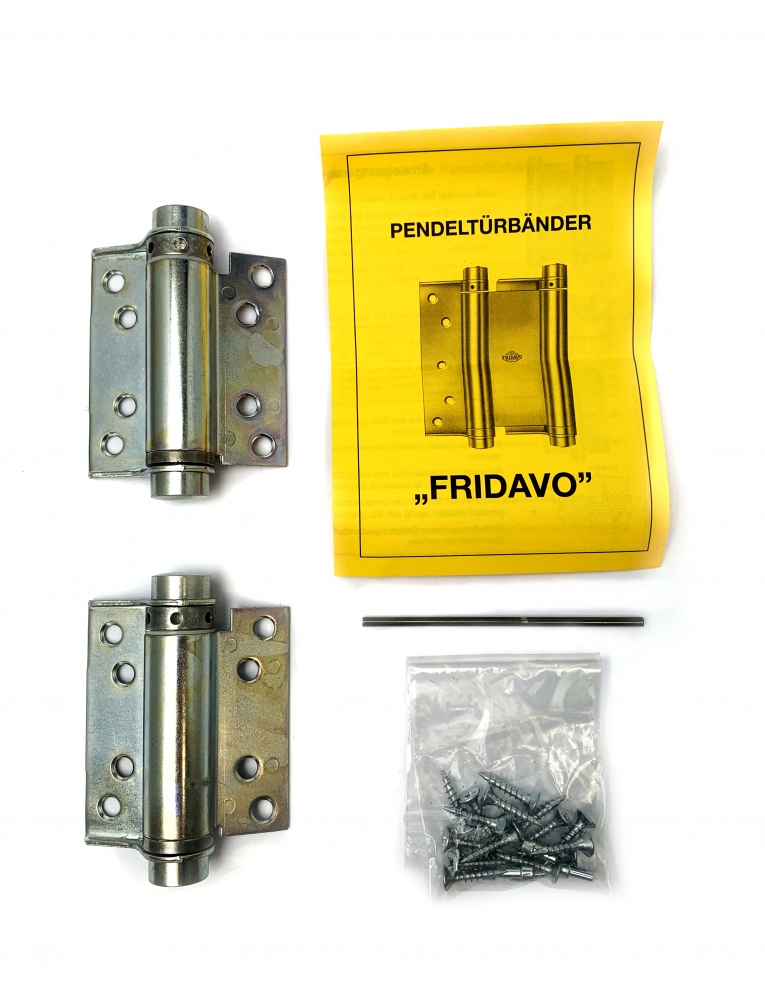

Packaging unit: 1 pair
Single direction
Model M
Spiral spring made of special spring wire
When assembling the tapes must be ensured that the trade are placed vertically above one another
Product may vary from picture

Size: 0

Length of hinge in mm: 75
calculated on:
- Door width in mm: 610
- Door height in mm: 1800
- Door thickness in mm: 18-25
- Door weight in Kg: 15

Size: 1

Length of hinge in mm: 100
calculated on:
- Door width in mm: 735
- Door height in mm: 1800
- Door thickness in mm: 25-30
- Door weight in Kg: 22

Size: 5

Length of hinge in mm: 125
calculated on:
- Door width in mm: 735
- Door height in mm: 2000
- Door thickness in mm: 30-35
- Door weight in Kg: 27

Size: 9

Length of hinge in mm: 150
calculated on:
- Door width in mm: 735
- Door height in mm: 2500
- Door thickness in mm: 34-40
- Door weight in Kg: 40

Size: 13

Length of hinge in mm: 175
calculated on:
- Door width in mm: 860
- Door height in mm: 2500
- Door thickness in mm: 40-45
- Door weight in Kg: 55

Size: 17

Length of hinge in mm: 200
calculated on:
- Door width in mm: 985
- Door height in mm: 2600
- Door thickness in mm: 45-50
- Door weight in Kg: 70

Size: 21

Length of hinge in mm: 250
calculated on:
- Door width in mm: 985
- Door height in mm: 2800
- Door thickness in mm: 50-60
- Door weight in Kg: 100

Size: 25

Length of hinge in mm: 300
calculated on:
- Door width in mm: 1235
- Door height in mm: 3000
- Door thickness in mm: 60-75
- Door weight in Kg: 145

0, 1, 5, 9, 13, 17, 21, 25

No files available for download

Property	GTIN/EAN	MPN (Manufacturer Part Number)
0	4015912003625	136B/ 0/075
1 (1 pcs in stock)	4015912013624	136B/ 1/100
5	4015912053620	136B/ 5/125
9	4015912093626	136B/ 9/150
13	4015912133629	136B/13/175
17	4015912173625	136B/17/200
21	4015912213628	136B/21/250
25	4015912253624	136B/25/300

Fridavo No.136b - Steel, galvanized - Spiral spring hinge, Single direction - Model M
