- Pos.-No. 23197470
- Next item →
Fridavo No.139a - Steel, stainless - Spiral spring hinge, Single direction - Model M
from € 142.74 142.74 incl. VAT (119.95 excl. VAT), per piece *
Availability: on request
Packaging unit: 1 piece
Manufacturer: Fridavo
Country of origin: DE/0004
Customs tariff number: 83026000
Weight per piece: 1.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
- Fridavo "steel, stainless" - spiral spring hinge
- Single direction
- Model M
- Spiral spring made of special spring wire
- When assembling the tapes must be ensured that the trade are placed vertically above one another
- Product may vary from picture

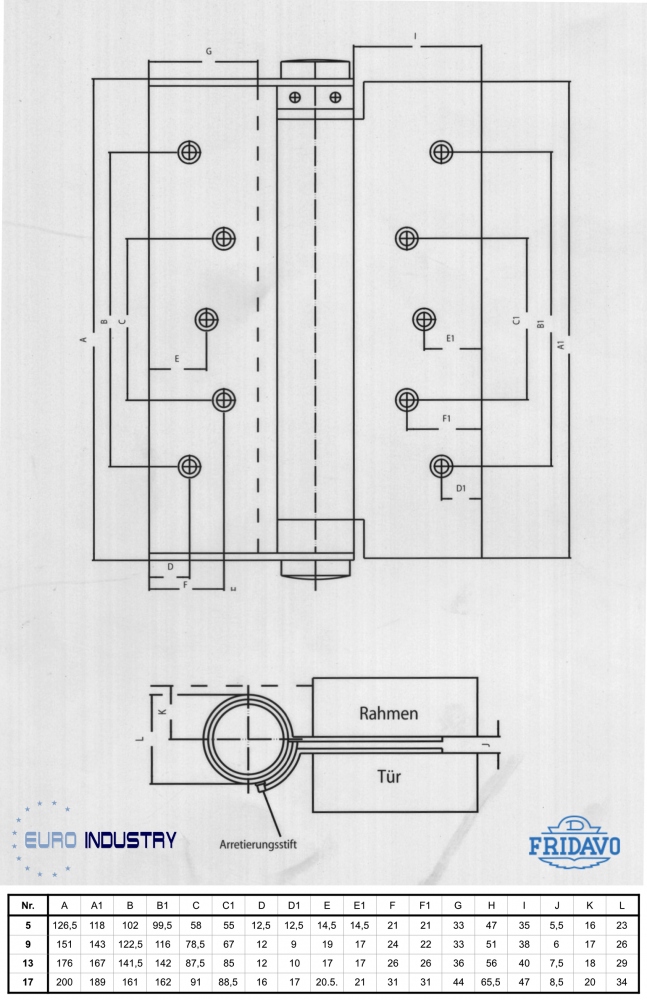

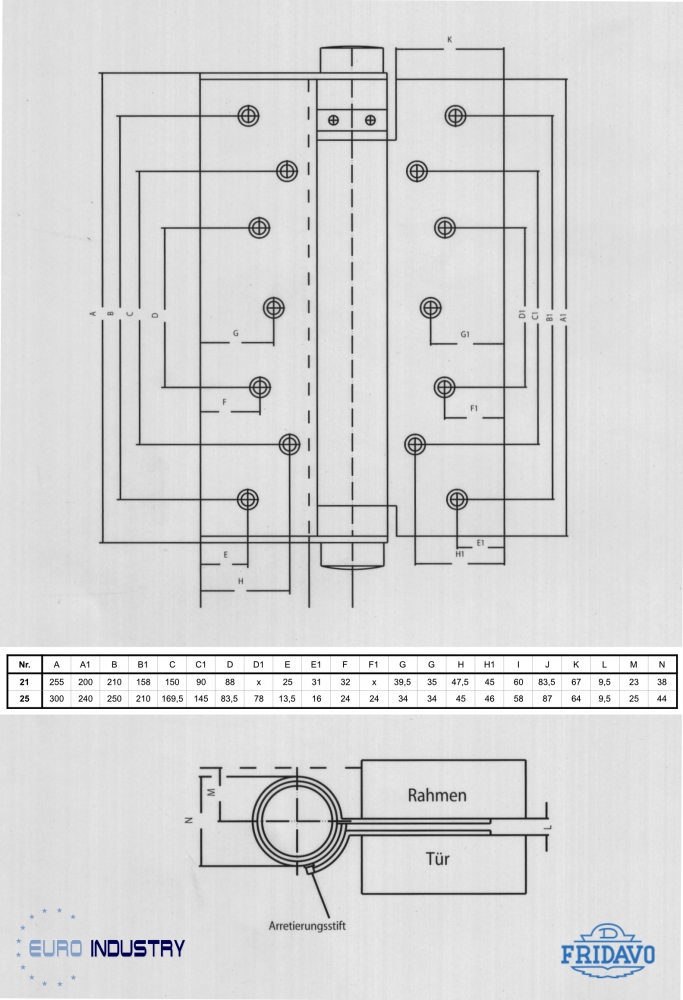

Spring hinge, | Nr. | 0 | 1 | 5 | 9 | 13 | 17 | 21 | 25 |
Joint length | mm | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 |
Calculated on: |
|
|
|
|
|
|
|
| |
Door width | mm | 610 | 735 | 735 | 735 | 860 | 985 | 985 | 1235 |
Door hight | mm | 1800 | 1900 | 2000 | 2500 | 2500 | 2600 | 2800 | 3000 |
Door thickness | mm | 18 – 25 | 25 – 30 | 30 – 35 | 35 – 40 | 40 – 45 | 45 – 50 | 50 – 60 | 60 – 75 |
max. Door weigth | kg | 15 | 22 | 27 | 40 | 55 | 70 | 100 | 145 |
Size: 0
- Length of hinge in mm: 75
- calculated on:
- Door width in mm: 610
- Door height in mm: 1800
- Door thickness in mm: 18-25
- Door weight in Kg: 15
Size: 1
- Length of hinge in mm: 100
- calculated on:
- Door width in mm: 735
- Door height in mm: 1800
- Door thickness in mm: 25-30
- Door weight in Kg: 22
Size: 5
- Length of hinge in mm: 125
- calculated on:
- Door width in mm: 735
- Door height in mm: 2000
- Door thickness in mm: 30-35
- Door weight in Kg: 27
Size: 9
- Length of hinge in mm: 150
- calculated on:
- Door width in mm: 735
- Door height in mm: 2500
- Door thickness in mm: 34-40
- Door weight in Kg: 40
Size: 13
- Length of hinge in mm: 175
- calculated on:
- Door width in mm: 860
- Door height in mm: 2500
- Door thickness in mm: 40-45
- Door weight in Kg: 55
Size: 17
- Length of hinge in mm: 200
- calculated on:
- Door width in mm: 985
- Door height in mm: 2600
- Door thickness in mm: 45-50
- Door weight in Kg: 70
Size: 21
- Length of hinge in mm: 250
- calculated on:
- Door width in mm: 985
- Door height in mm: 2800
- Door thickness in mm: 50-60
- Door weight in Kg: 100
Size: 25
- Length of hinge in mm: 300
- calculated on:
- Door width in mm: 1235
- Door height in mm: 3000
- Door thickness in mm: 60-75
- Door weight in Kg: 145
Fritz Dannert GmbH & Co. KG, Rosendahler Strasse 141, 58285 Gevelsberg, GERMANY, +49 2332 91091-10, [email protected], www.fridavo.de
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| 0 | 4015912003915 | 139A/ 0/075 |
| 1 | 4015912013914 | 139A/ 1/100 |
| 5 | 4015912053910 | 139A/ 5/125 |
| 9 | 4015912093916 | 139A/ 9/150 |
| 13 | 4015912133919 | 139A/13/175 |
| 17 | 4015912173915 | 139A/17/200 |
| 21 | 4015912213918 | 139A/21/250 |
| 25 | - | 139A/25/300 |
* Price in Euro including VAT, plus forwarding charges.
In parentheses: price in Euro excluding VAT, plus forwarding charges.
Clients outside the EU as well as companies outside of Germany don't pay any VAT (excepting for shipping in Germany)!
