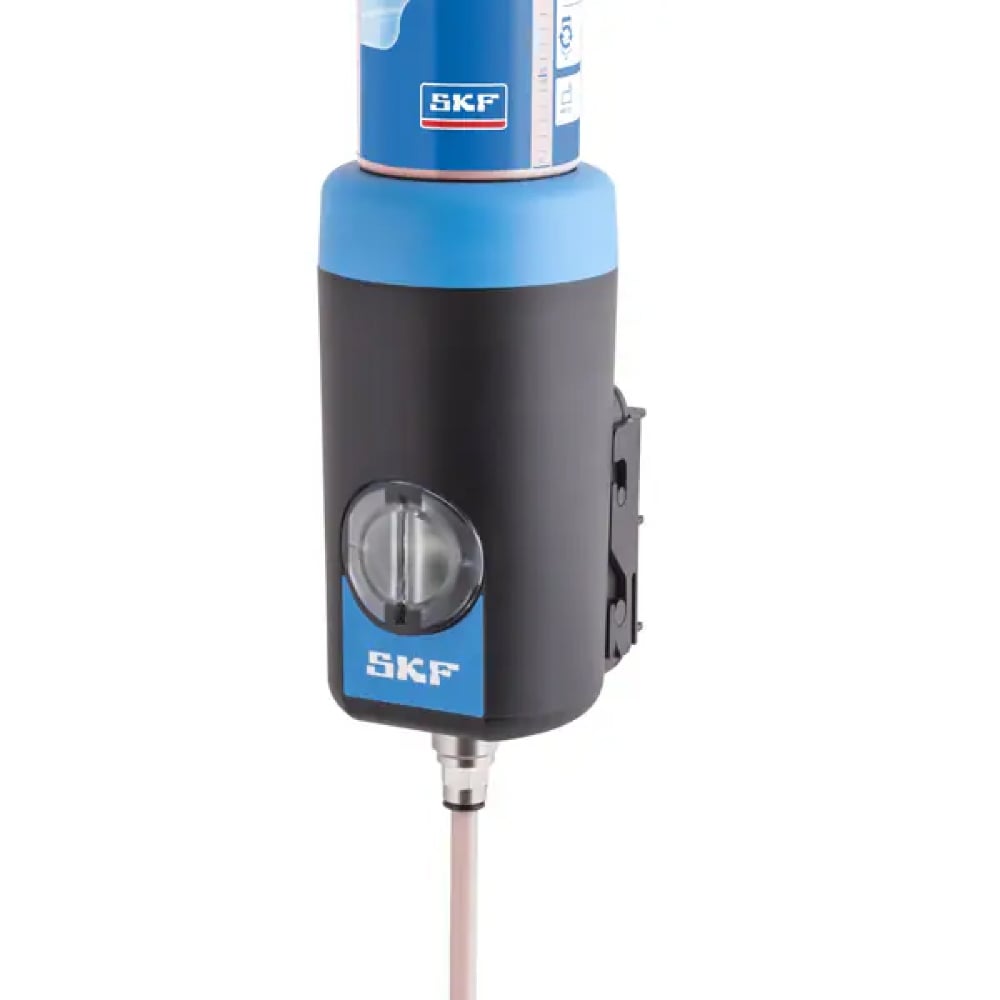

SKF TLMR 101 Single-point lubricator drive, battery powered
€ 303.39 303.39 incl. VAT (254.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: SKF
Country of origin: FI/0032
Customs tariff number: 27101999
Weight per piece: 863 g
No problem. Simply fill out the form and we will answer you as soon as possible.
SKF TLMR 101 is an electro-mechanical single point lubricant dispenser, battery powered and delivered without grease. With a high dispensing pressure, it is designed for long feed distances and difficult-to-reach or unsafe lubrication points, especially in applications with wide temperature ranges and vibration.
- Version: TLMR 101 drive unit, without grease
Applications
- Difficult-to-reach lubrication points
- Unsafe lubrication points requiring remote or extended feed line lubrication
- Engine rooms
- Hot fan applications
- Wind turbine applications
- Applications with vibration and wide temperature ranges
Features
- Flexible, temperature-independent dispense rate from 1 to 24 months
- High discharge pressure for long feed distances

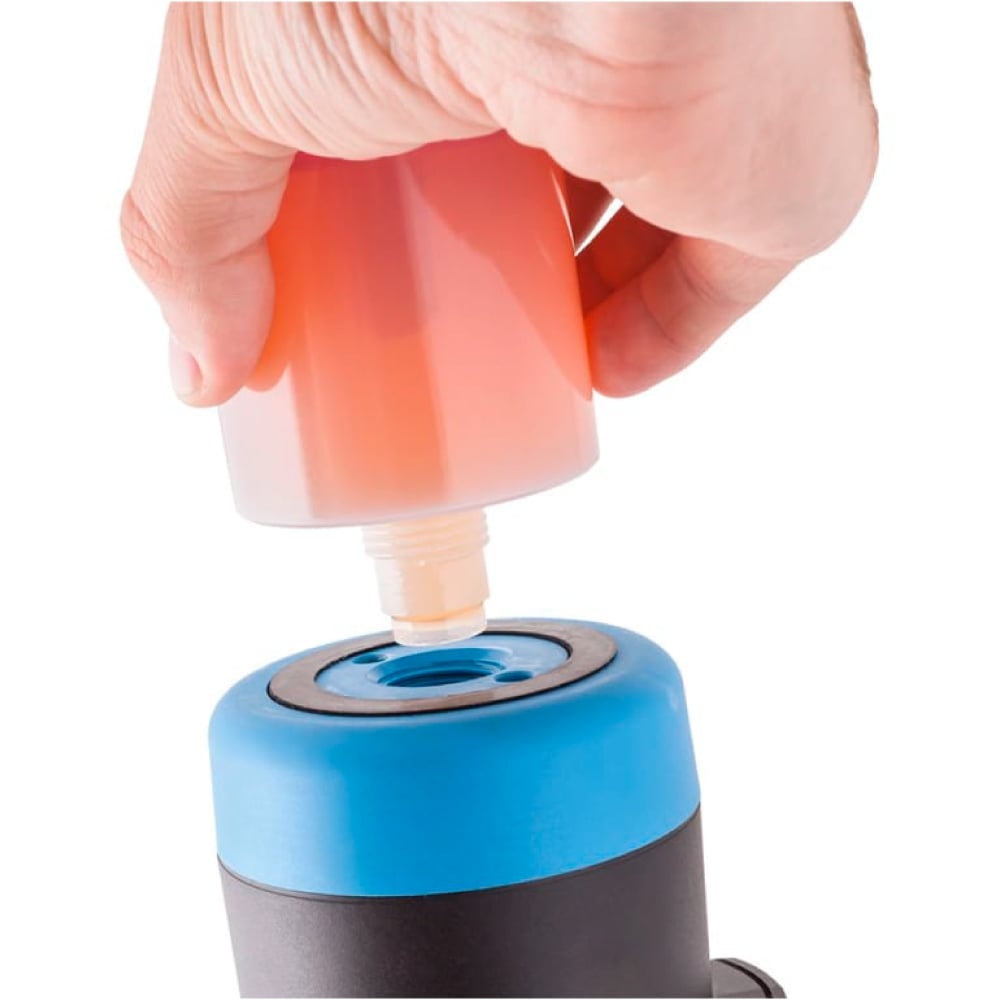

- Can be used with available 120 ml and 380 ml SKF grease cartridges
- Robust design suitable for operation in the presence of vibrations
- User-adjustable emptying time or purge function
- Battery powered
Specifications & Approvals
- Degree of protection: DIN EN 60529: IP 67
- Degree of protection: DIN 40 050-9: IP 6k9k
Technical data
| Manufacturer no. | TLMR 101 |
| Product type | Electro-mechanical single point lubricant dispenser |
| Maximum pressure | 435 psi (30 bar) |
| Ambient temperature range | -25 to +70 °C |
| Connecting thread | G 1/4 |
| Drive mechanism | Electro-mechanical |
| Maximum feed line length | 5 m |
| Nominal emptying time | User adjustable: 1, 2, 3, 6, 9, 12, 18 and 24 months or purge |
| Power source | 4x AA lithium batteries, included with refill cartridge |
| Compatible cartridge sizes | 120 ml and 380 ml |
| eClass code | 23-06-10-14 |
| UNSPSC code | 15121902 |
Product description
The SKF TLMR 101 is a battery-powered electro-mechanical single point lubricant dispenser for 120 ml and 380 ml SKF grease cartridges. It can operate at long distances with a maximum discharge pressure of 30 bar and is suitable for difficult-to-reach lubrication points, hot environments and applications with vibration.
Recommended accessories
A wide accessory range for SKF TLMR is available, including LAPA angle connectors, LAPE extensions, LAPF tube connectors, LAPG grease nipples, LAPM Y connectors, LAPN reducer nipples, LAPT flexible tubes, LAPV non-return valves, LAPB brushes and TLMR spare parts. Compatible refill cartridges include LGEP 2/MR380B, LGEV 2/MR380B, LGFP 2/MR380B, LGHB 2/MR380B, LGWA 2/MR120B, LGWA 2/MR380B and LGWM 2/MR380B.
SKF TLMR101, SKF TLMR 101 drive, SKF TLMR 101 automatic lubricator, SKF TLMR dispenser
SKF GmbH, Gunnar-Wester-Straße 12, 97421 Schweinfurt, GERMANY, +49 9721 56-0, [email protected], www.skf.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 7316575884932 | TLMR 101 |
