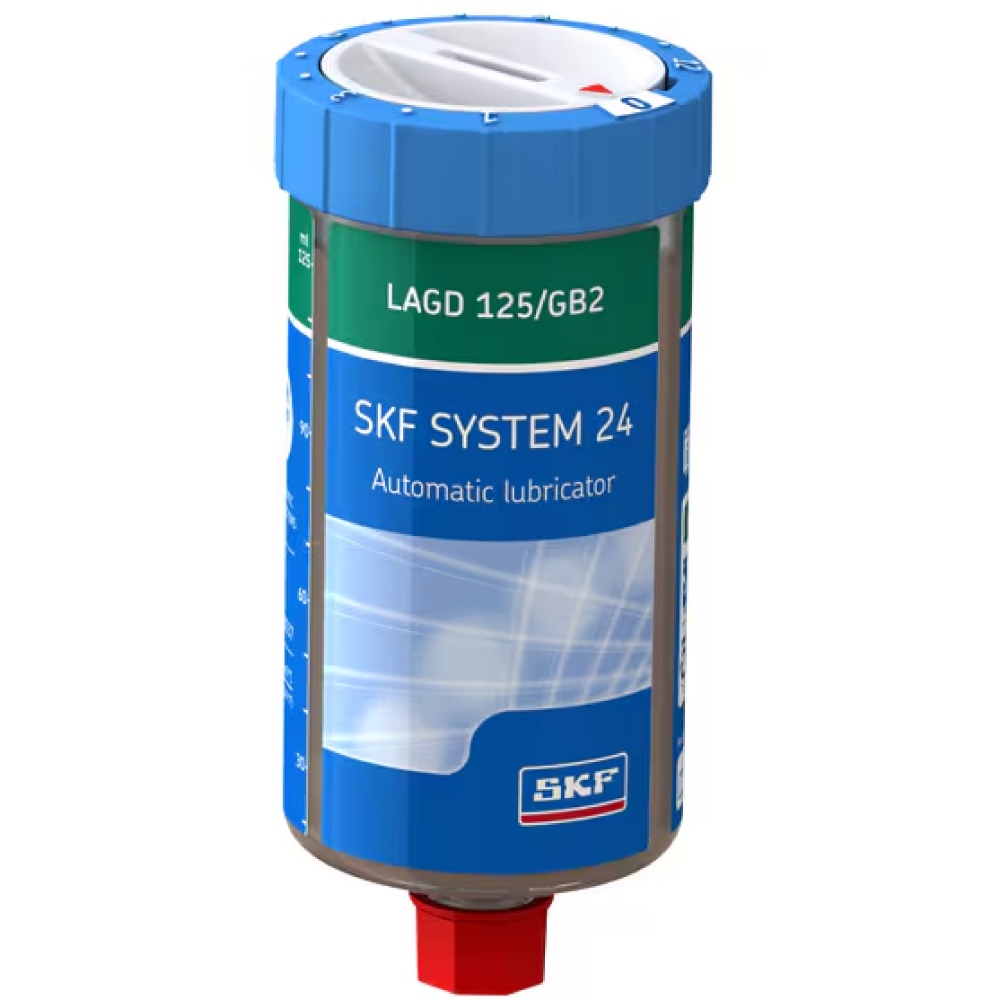

SKF LAGD 125/GB2 SYSTEM 24 Single point lubricator with LGGB 2, 125ml

SKF LAGD 125/GB2 SYSTEM 24 Single point lubricator with LGGB 2, 125ml

€ 42.78 42.78 incl. VAT (35.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: SKF

Country of origin: FI/0032

Customs tariff number: 84798997

Weight per piece: 200 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

six - one = ?

( Examples: two + three = 5, three - five = -2 )

SKF LAGD 125/GB2 is a gas-driven single-point automatic lubricator, pre-filled with SKF LGGB 2 environmentally acceptable biodegradable bearing grease. It is designed for simple, safe and precise relubrication in applications where grease may enter the environment, such as water treatment, irrigation, locks, dams and bridges.

Pack size: 125 ml unit

Applications

Applications where grease can leak into the environment
Mining and conveying equipment
Water treatment and irrigation
Locks, dams and bridges
Lubrication points requiring biodegradable bearing grease

Features

Flexible dispense rate adjustable from 1 to 12 months
Transparent container allows visual inspection of dispense rate
Compact size for restricted areas
Tool-free activation and time setting
Gas cell producing inert gas
Improved reliability and optimized maintenance

Specifications & Approvals

ATEX zone 0 approved
II 1G Ex ia IIC T6 Ga
II 1D Ex ia IIIC T200 85°C Da
I M1 Ex ia I Ma
Degree of protection: IP 68

Technical data

Manufacturer no.	LAGD 125/GB2
Lubricant type	Biodegradable bearing grease
Lubricant	SKF LGGB 2
Maximum pressure	72.5 psi (5 bar)
Ambient temperature range	-20 to +60 °C
Lubricant operating temperature range	-20 to +90 °C
Connecting thread	R 1/4
Nominal emptying time	Adjustable, 1-12 months
Maximum feed line length	0.3 m
Recommended storage temperature	20 °C
Shelf life	2 years
Net weight	0.2 kg

Product description

The SKF SYSTEM 24 LAGD 125/GB2 is filled with SKF LGGB 2 biodegradable bearing grease for applications where environmental impact is a concern. These gas-driven single-point automatic lubricators allow easy, safe and accurate relubrication.

Recommended accessories

A wide accessory range for SKF SYSTEM 24 is available, including LAPA angle connectors, LAPC brackets and clamps, LAPE extensions, tube connectors, reducer nipples and flexible tubes. Contact us for the complete selection.

SKF LAGD125/GB2, SKF LAGD 125-GB2, SKF LAGD125 GB2, SKF SYSTEM 24 LAGD 125/GB2

Information on product safety (Manufacturer, Contact)

SKF GmbH, Gunnar-Wester-Straße 12, 97421 Schweinfurt, GERMANY, +49 9721 56-0, [email protected], www.skf.com

skf-lagd-125-gb-2-tds-datasheet.pdf (787.74 KB)
