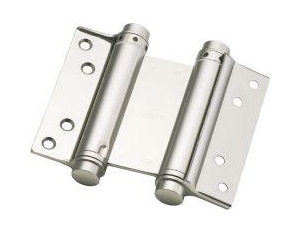

Fridavo No.128 Spiral springswing door hinges, double-acting

• Fridavo "Solid brass, nickel, matt or polished" - spiral spring swing door hinges
• Packaging unit: 1 pair
• Double-acting, Sleeve made of a piece of high quality SM-steel rolled
• Model M
• Spiral spring made ​​of special spring wire
• When assembling the tapes must be ensured that the trade are placed vertically above one another
• The spring of the upper band to be more excited because this band has to exert a greater force
• Product may vary from picture

Size: 29

• Length of hinge in mm: 75
• calculated on:
  • Door width in mm: 610
  • Door height in mm: 1800
  • Door thickness in mm: 18-25
  • Door weight in Kg: 15

Size: 30

• Length of hinge in mm: 100
• calculated on:
  • Door width in mm: 735
  • Door height in mm: 1800
  • Door thickness in mm: 25-30
  • Door weight in Kg: 22

Size: 33

• Length of hinge in mm: 125
• calculated on:
  • Door width in mm: 735
  • Door height in mm: 2000
  • Door thickness in mm: 30-35
  • Door weight in Kg: 27

Size: 36

• Length of hinge in mm: 150
• calculated on:
  • Door width in mm: 735
  • Door height in mm: 2500
  • Door thickness in mm: 34-40
  • Door weight in Kg: 40

Size: 39

• Length of hinge in mm: 175
• calculated on:
  • Door width in mm: 860
  • Door height in mm: 2500
  • Door thickness in mm: 40-45
  • Door weight in Kg: 55

Size: 42

• Length of hinge in mm: 200
• calculated on:
  • Door width in mm: 985
  • Door height in mm: 2600
  • Door thickness in mm: 45-50
  • Door weight in Kg: 70

Fritz Dannert GmbH & Co. KG, Rosendahler Strasse 141, 58285 Gevelsberg, GERMANY, +49 2332 91091-10, [email protected], www.fridavo.de
