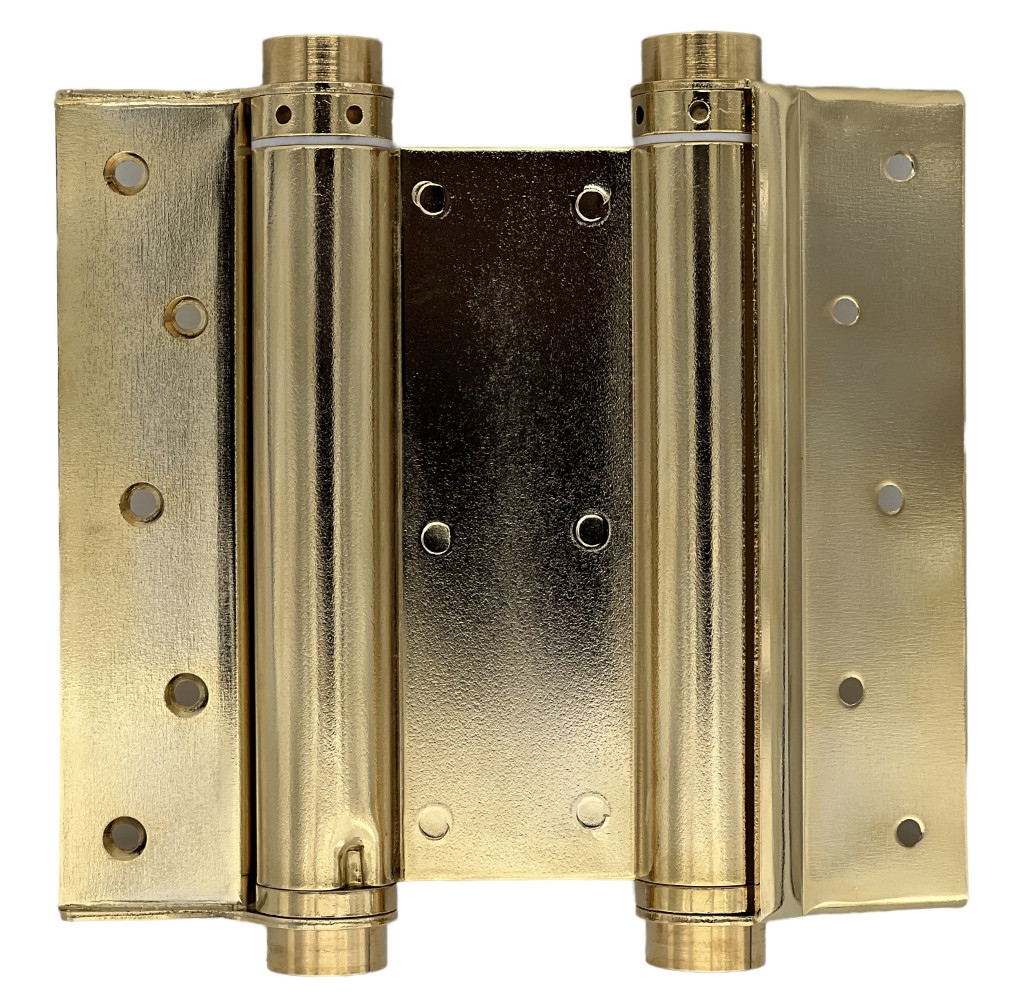

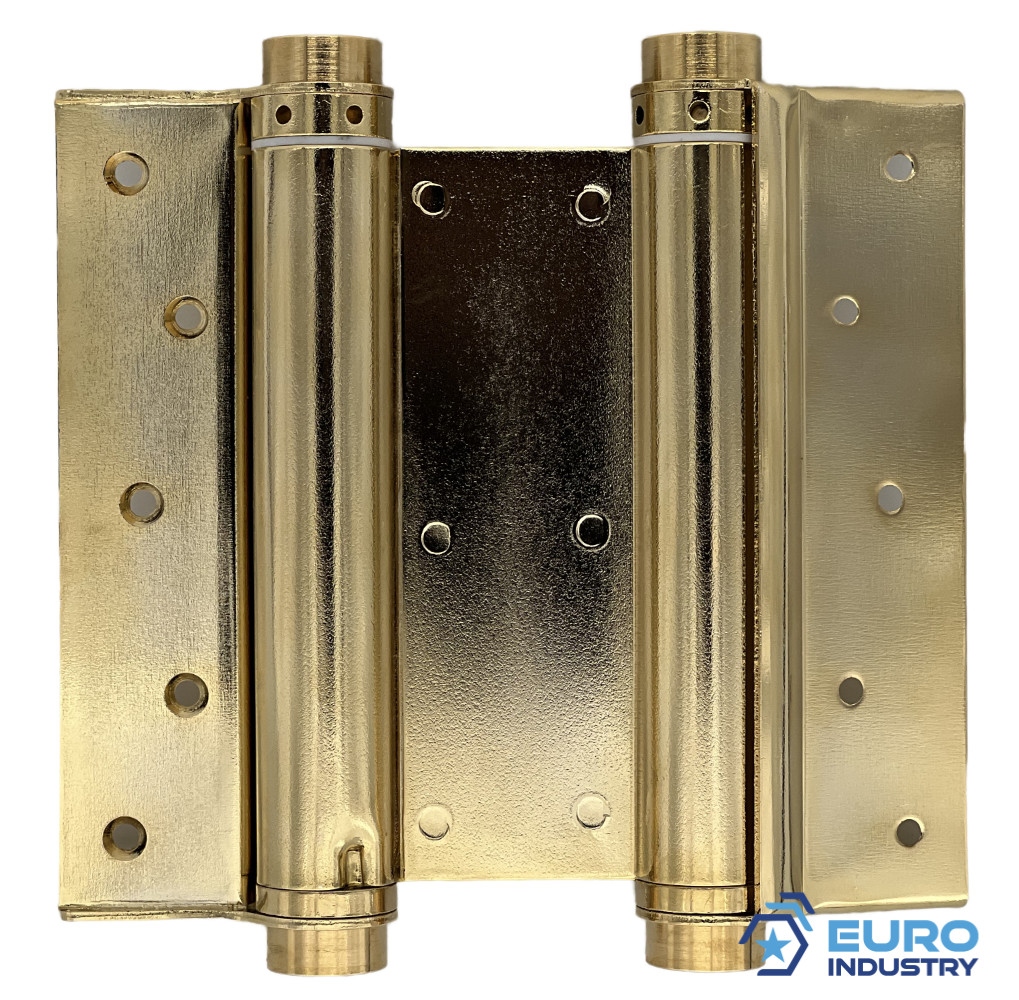

Fridavo No.122 - Steel, brass - Spiral springswing door hinges, double-acting - Model M
from € 64.44 64.44 incl. VAT (54.15 excl. VAT), per piece *
Availability: on request
Packaging unit: 1 pair
Manufacturer: Fritz Dannert
Country of origin: DE/0004
Customs tariff number: 83026000
Weight per piece: 6.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
- Fridavo "steel, brass" - spiral spring swing door hinges
- Packaging unit: 1 pair
- Double-acting
- Model M
Swing door hinge, Size | Nr. | 28 | 29 | 30 | 33 | 36 | 39 | 42 | 45 | 48 |
Joint legth | mm | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 |
Calculated on: |
|
|
|
|
|
|
|
|
| |
Door width | mm | 610 | 610 | 735 | 735 | 735 | 860 | 985 | 985 | 1235 |
Door height | mm | 1170 | 1800 | 1900 | 2000 | 2500 | 2500 | 2600 | 2800 | 3000 |
Door thikness | mm | 18-25 | 18 – 25 | 25 – 30 | 30 – 35 | 35 – 40 | 40 – 45 | 45 – 50 | 50 – 60 | 60 – 75 |
max. Door weigth | kg | 10 | 15 | 22 | 27 | 40 | 55 | 70 | 100 | 145 |

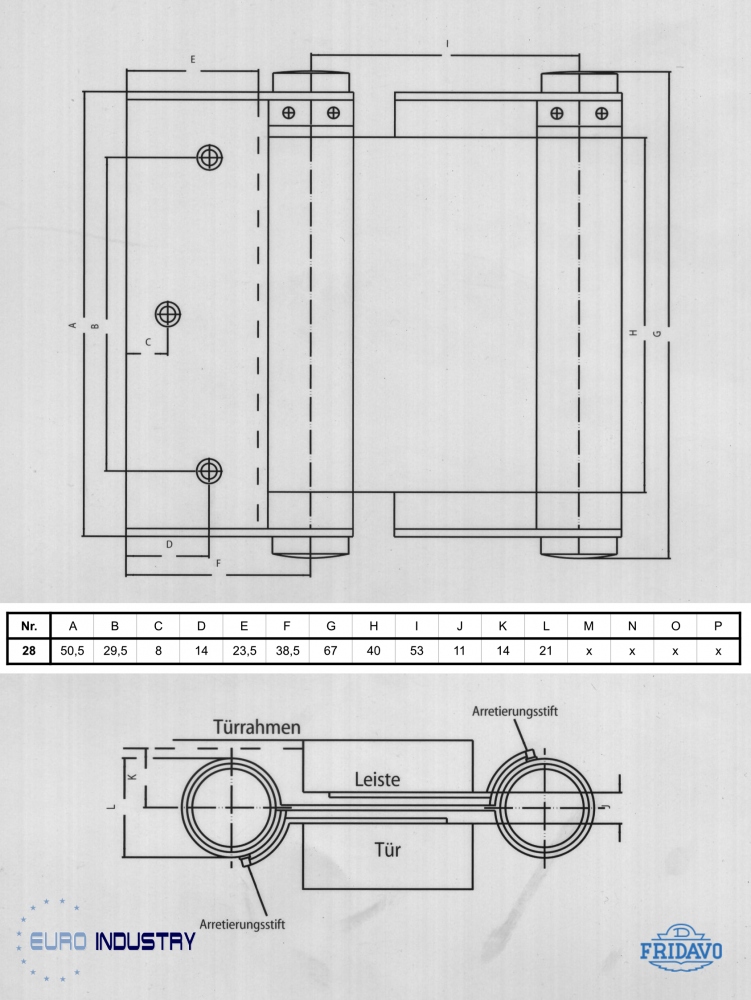

Size: 28 (for Saloon-doors)
- Length of hinge in mm: 50
- calculated on:
- Door width in mm: 610
- Door height in mm: 1170
- Door thickness in mm: 18-25
- Door weight in Kg: 10
Size: 29
- Length of hinge in mm: 75
- calculated on:
- Door width in mm: 610
- Door height in mm: 1800
- Door thickness in mm: 18-25
- Door weight in Kg: 15
Size: 30
- Length of hinge in mm: 100
- calculated on:
- Door width in mm: 735
- Door height in mm: 1800
- Door thickness in mm: 25-30
- Door weight in Kg: 22
Size: 33
- Length of hinge in mm: 125
- calculated on:
- Door width in mm: 735
- Door height in mm: 2000
- Door thickness in mm: 30-35
- Door weight in Kg: 27
Size: 36
- Length of hinge in mm: 150
- calculated on:
- Door width in mm: 735
- Door height in mm: 2500
- Door thickness in mm: 34-40
- Door weight in Kg: 40
Size: 39
- Length of hinge in mm: 175
- calculated on:
- Door width in mm: 860
- Door height in mm: 2500
- Door thickness in mm: 40-45
- Door weight in Kg: 55
Size: 42
- Length of hinge in mm: 200
- calculated on:
- Door width in mm: 985
- Door height in mm: 2600
- Door thickness in mm: 45-50
- Door weight in Kg: 70
Size: 45
- Length of hinge in mm: 250
- calculated on:
- Door width in mm: 985
- Door height in mm: 2800
- Door thickness in mm: 50-60
- Door weight in Kg: 100
Size: 48
- Length of hinge in mm: 300
- calculated on:
- Door width in mm: 1235
- Door height in mm: 3000
- Door thickness in mm: 60-75
- Door weight in Kg: 145
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| 28 | 015912281221 | 122/28/40 |
| 29 | 4015912291220 | 122/29/075 |
| 30 | 4015912301226 | 122/30/100 |
| 33 | 4015912331223 | 122/33/125 |
| 36 | 4015912361220 | 122/36/150 |
| 39 | 4015912391227 | 122/39/175 |
| 42 | 4015912421221 | 122/42/200 |
| 45 | - | 122/45/250 |
| 48 | - | 122/48/300 |
