Fuchs Gleitmo 605 Dry solid film lubricant for small bulk parts 1kg

Fuchs GLEITMO 605 is a dry solid film lubricant for bulk part coating (-40 / +110 °C), designed to achieve defined friction coefficients on screws/bolts according to the specifications of the automotive industry (VDA).

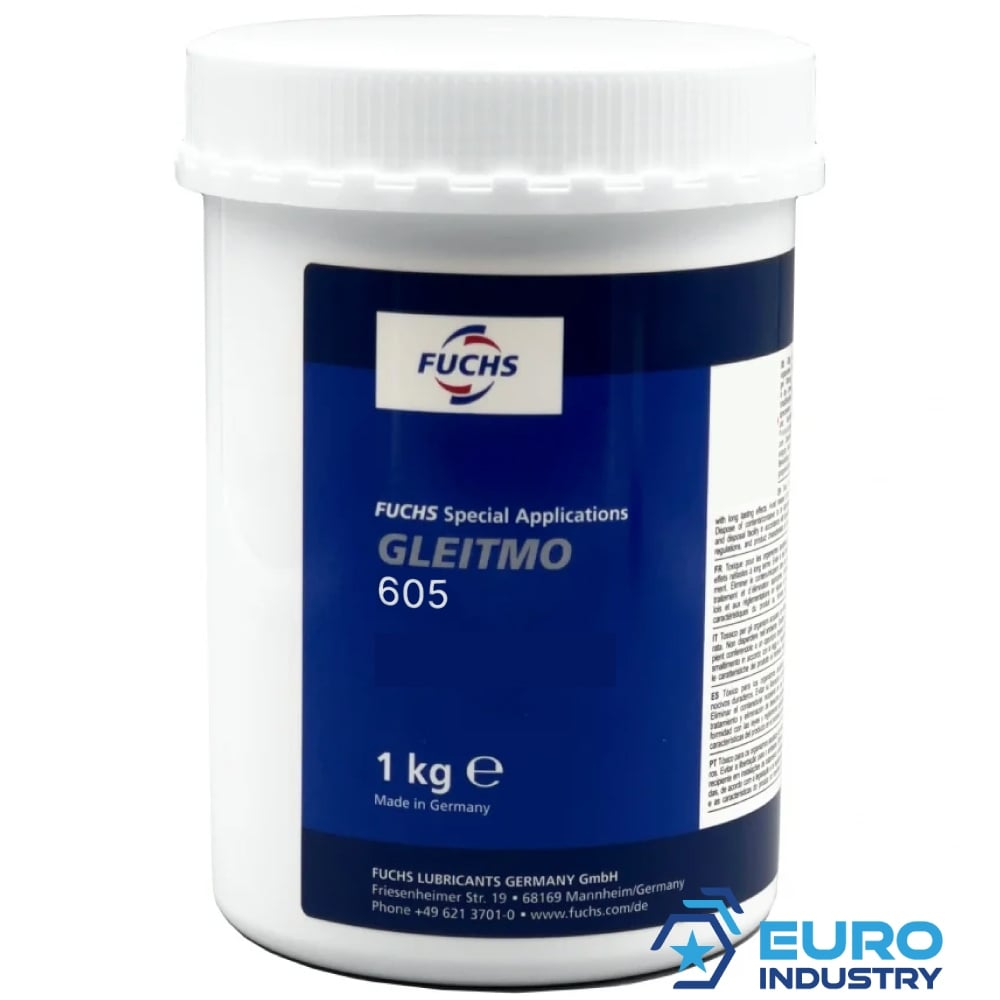

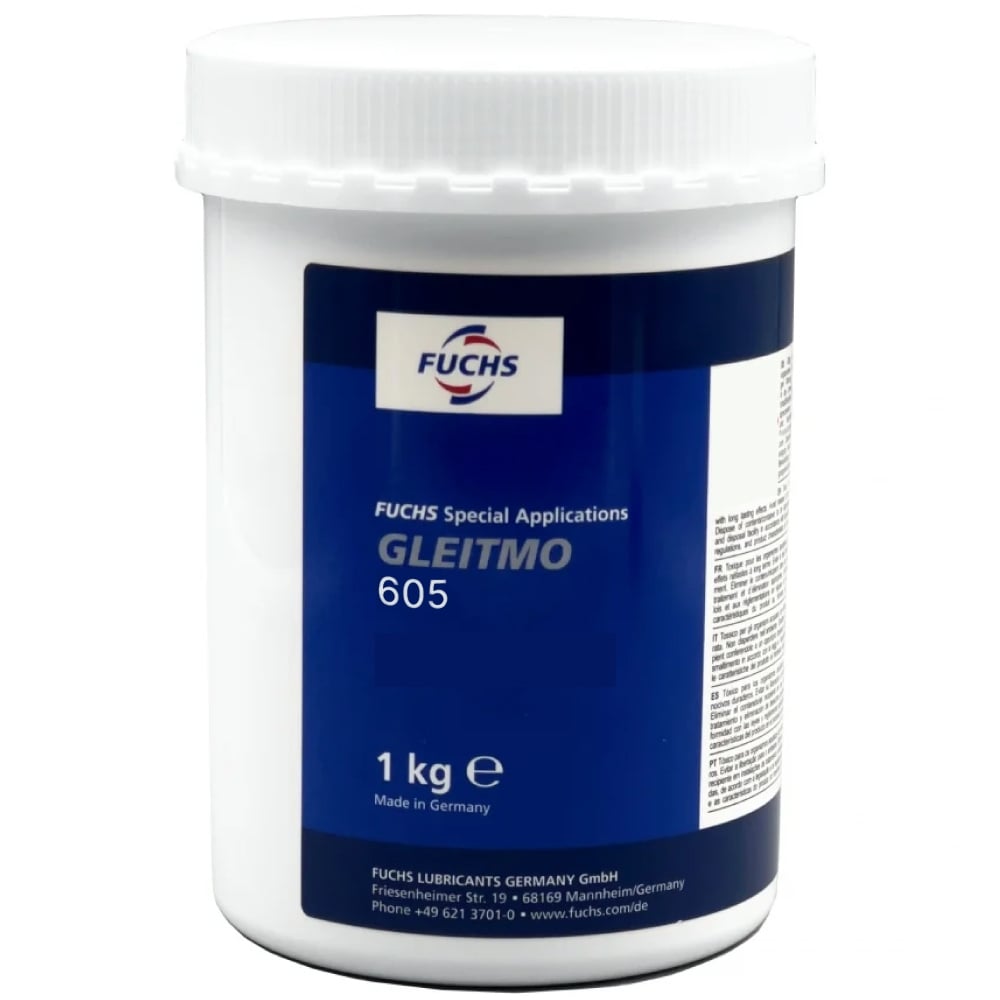

• Pack size: 1 kg tin
• Also available in: 25 kg pail, 150 kg drum

Applications

• Lubrication of connecting elements such as nuts, metric screws/bolts, chipboard screws, sheet metal screws, clamping screws, cap nuts for cutting ring joints, etc.
• Automotive
• Machinery, equipment
• Steel, metals

Specifications & Approvals

• Meets the requirements of the automotive industry (VDA) for screw lubrication
• DIN EN ISO 16047 (screw test)

Characteristics

• Temperature range: -40 / +110 °C
• Is suitable for small bulk parts
• Saves assembly time and is particularly suitable for automatic screw-driving systems
• Is clean and non-greasing
• Has a very good surface adhesion on a large number of materials
• Is environmentally and user friendly
• Provides an absolutely touch-proof, clear-glossy lubrication film
• Contains a UV additive for a UV coating inspection (340-380 nm)

Technical specifications

Product Description

GLEITMO 605 is a suspension of high-molecular polymers in water. GLEITMO 605 has been designed to achieve defined friction coefficients on screws/bolts according to the specifications of the automotive industry (VDA).

Processing Instructions

• Depending on the requirements, GLEITMO 605 can be diluted with water (at least of drinking water quality).
• As a rule, GLEITMO 605 is used at dilution ratios of 1 : 3 (for centrifuge coating procedures, stringent requirements) up to 1 : 7 (for dipping).
• Water is added to GLEITMO 605 while constantly stirring.
• The parts to be coated must be free of grease.
• Drums and centrifuges commonly used in the galvanizing industry have proved to be very convenient.
• After the coating process it is recommended to dry the parts by hot air (up to a part temperature of approx. 80 °C).
• Packaging of coated parts only in absolutely dry condition.
• For additional notes regarding coating and bath maintenance please refer to the Technical Information on GLEITMO 605.

Protect against freezing! In closed original containers at room temperature storable up to 24 months.

Hazard statements (CLP)

Hazard statements (H-statements)

• H318: Causes serious eye damage.

Precautionary statements (P-statements)

Prevention:

• P280: Wear protective gloves/ protective clothing/ eye protection/ face protection.

Response:

• P305+P351+P338: IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing.
• P310: Immediately call a POISON CENTER or doctor.

Additional labelling

• Contains: Ethoxylated alcohol.

Storage and disposal

• No specific storage or disposal information provided in the safety data sheet.

Other relevant information

• No further labelling elements required based on the provided section 2.2.

FUCHS LUBRICANTS GERMANY GmbH, Friesenheimer Str. 19, 68169 Mannheim, GERMANY, +49 621 3701-0, [email protected], www.fuchs.com
