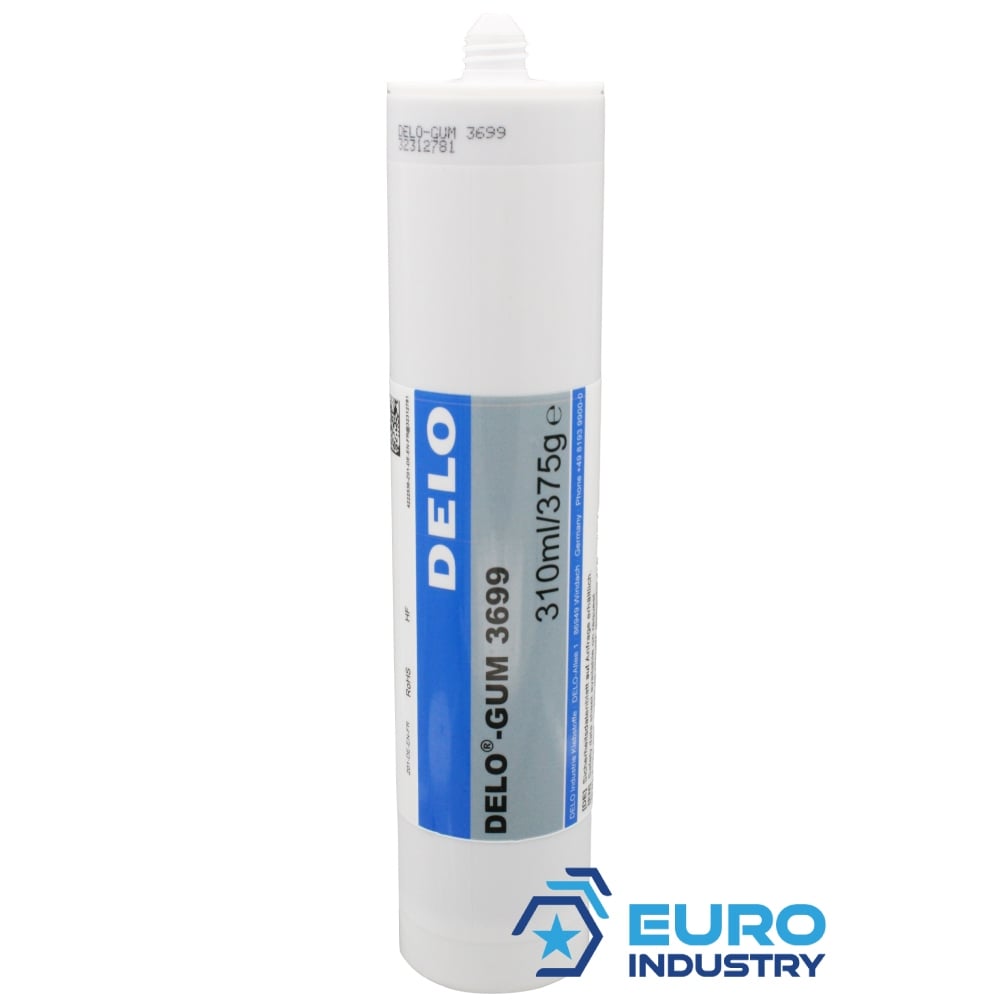

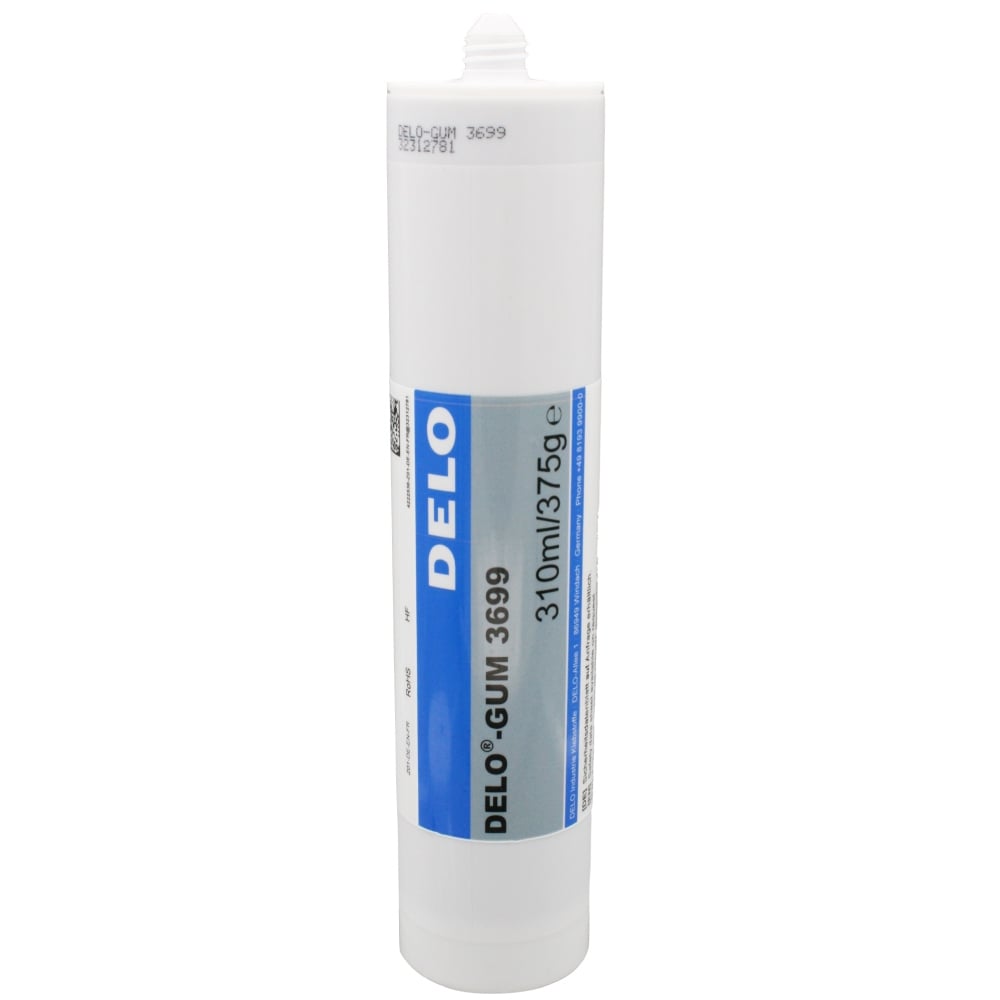

DELO-GUM 3699 High-temperature RTV-1 Silicone Sealant red 375g
€ 118.94 118.94 incl. VAT (99.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: DELO
Country of origin: DE/0004
Customs tariff number: 35061000
Weight per piece: 450 g
No problem. Simply fill out the form and we will answer you as soon as possible.
DELO-GUM 3699 is a one-component, acetoxy-curing RTV-1 silicone rubber with high temperature resistance up to +300 °C. It cures at room temperature by ambient humidity, is solvent-free, pasty/non-sag and suitable for elastic, stress-compensating sealing and bonding of various materials.
- Pack size: 310 ml / 375 g cartridge
Applications
- Elastic sealing of housings, flanges and assemblies
- Stress-compensating bonds in industry and mechanical engineering
- Thermally cycled systems (typical −50 °C to +300 °C)
Features
- RTV-1, acetoxy cure; solvent-free
- Very high temperature resistance up to +300 °C
- Pasty/non-sag; good adhesion to many substrates
- Fast skin formation (~5 min) and cure (~2 mm/24 h)
- RoHS compliant (2015/863/EU)
Technical Data
| Physical properties | |
|---|---|
| Colour (cured) | Red |
| Density (23 °C) | approx. 1.2 g/cm³ |
| Consistency | Pasty, non-sag |
| Condensation by-product | Acetic acid |
| Mechanical properties | |
| Tensile strength | approx. 3 MPa |
| Elongation at break | approx. 300 % |
| Shore hardness A | approx. 35 |
| Curing | |
| Skin formation time | approx. 5 min (23 °C / 50 % r.h.) |
| Cure rate | approx. 2 mm / 24 h (23 °C / 50 % r.h.) |
| Thermal properties | |
| Service temperature range (typ.) | −50 °C to +300 °C |
Application Notes
- Ready to use; direct application from the cartridge
- Surfaces dry, free from dust/grease; cleaning e.g. with DELOTHEN
- Cures with ambient moisture; slight acetic acid release
Recommended Accessories
- Dispensing tools: manual (WEICON 10000441), pneumatic (LOCTITE 97002)
- Nozzles: standard nozzles (8 cm), long nozzles 175 mm
- Cleaner: DELOTHEN NK1 400 ml
Storage & Shelf Life
- Unopened: 12 months at +15 °C to +30 °C
- Store cool, dry and in the original container
DELO Industrie Klebstoffe GmbH & Co. KGaA, DELO-Allee 1, 86949 Windach, GERMANY, +49 8193 9900-0, [email protected], www.delo.de
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | 100014049 |
