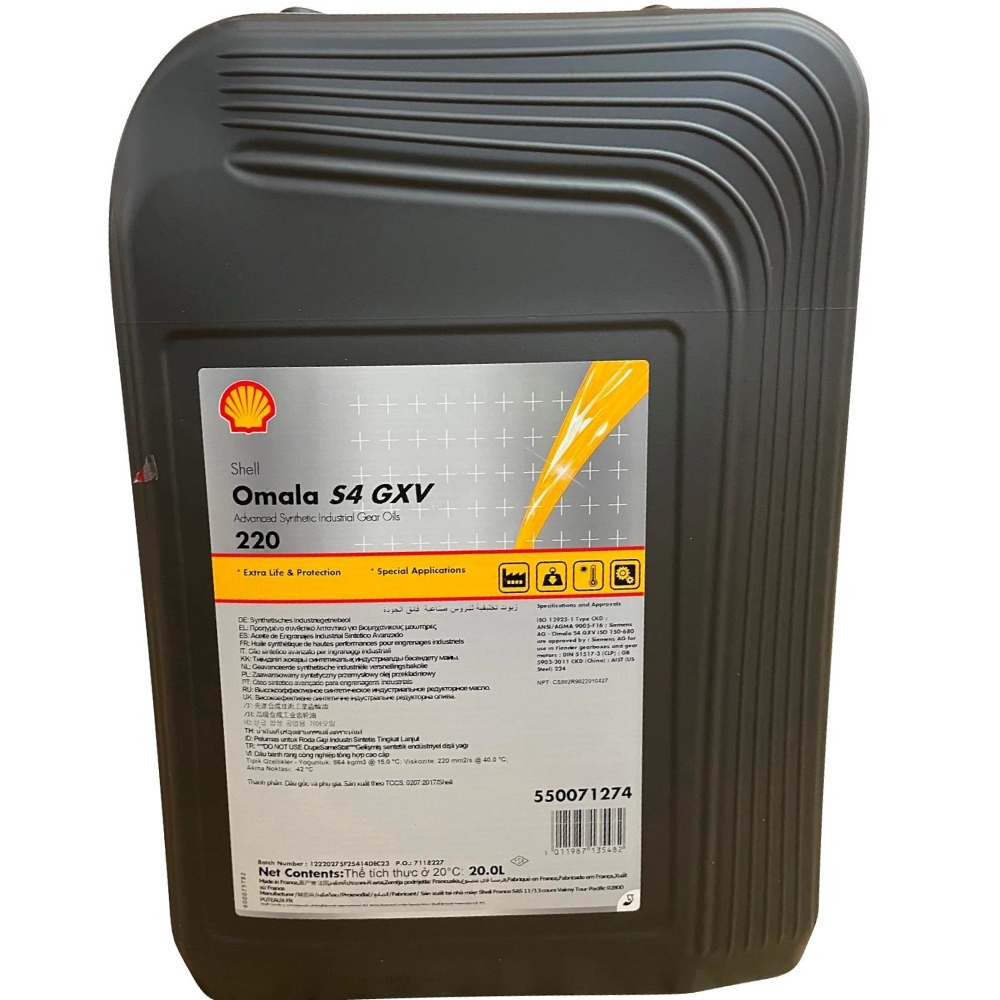

Shell Omala S4 GXV 220 Synthetic Gear Oil CKD 220, 20L

Shell Omala S4 GXV 220 is an advanced synthetic heavy duty industrial gear oil (CKD, ISO VG 220), approved by Siemens AG, offering outstanding lubrication performance under severe operating conditions, including reduced friction, long service life, high resistance to micro-pitting for optimal gear protection and superb compatibility with seals.

• Pack size: 20 L canister
• Also available in: 209 L drum

Applications

• Gear motor systems and other inaccessible installations where extra long life is required and maintenance is infrequent
• Enclosed industrial gear systems operating under severe conditions (high load, very low or elevated temperatures, wide temperature variations)
• Lubrication of bearings and other components in circulating and splash-lubricated systems
• Recommended for industrial reduction gear systems using a wide range of seals, including nitrile rubber and fluoroelastomers

Specifications & Approvals

• ISO 12925-1 Type CKD
• ANSI/AGMA 9005-F16
• Siemens AG – Approved for use in Flender gearboxes and gear motors (ISO 150 – 680)
• DIN 51517-3 (CLP)
• China National Standard GB 5903-2011 CKD
• AIST (US Steel) Req. No. 224

Benefits

• Long oil life - maintenance saving: Provides outstanding resistance to breakdown over long duration and/or high temperature operation (up to 120°C bulk temperature)
• Excellent wear and corrosion protection: Excellent load carrying capacity and high resistance to micro-pitting for long component life even under shock loading
• Maintaining system efficiency: Improved low temperature performance and lower friction in comparison to mineral oil-based products
• Superb compatibility with seals: Meets the demanding requirements of Siemens for Flender gearboxes and gear motors

Technical specifications

Manufacturer number	550071274
Grade	ISO 220
Kinematic Viscosity @ 40°C, mm2/s, ASTM D445	220
Kinematic Viscosity @ 100°C, mm2/s, ASTM D445	30
Viscosity Index, ASTM D2270	171
Flash Point (COC), °C minimum, ASTM D92	240
Pour Point, °C, ASTM D97	-42
Density @ 15°C, kg/m3, ASTM D4052	864
Four Ball EP Weld load, kg minimum, ASTM D2783	250
FZG Load Carrying Test failure load stage, minimum, A/8,3/90	14

Product Description

Shell Omala S4 GXV 220 is an advanced synthetic heavy duty industrial gear oil formulated with an advanced additive system and specially selected synthetic base fluids. It provides outstanding resistance to thermal and oxidative breakdown, excellent wear and corrosion protection, high resistance to micro-pitting, and superb compatibility with seals. This formulation helps to significantly extend service intervals and maintain system efficiency.
Omala S4 GXV220, Omala S4GXV 220, Omala S4 GXV-220



Information on product safety (Manufacturer, Contact)

Shell Deutschland GmbH, New-Orleans-Straße 4, 20457 Hamburg, Deutschland, +49 (0) 40 6324 - 0, [email protected], www.shell.com
