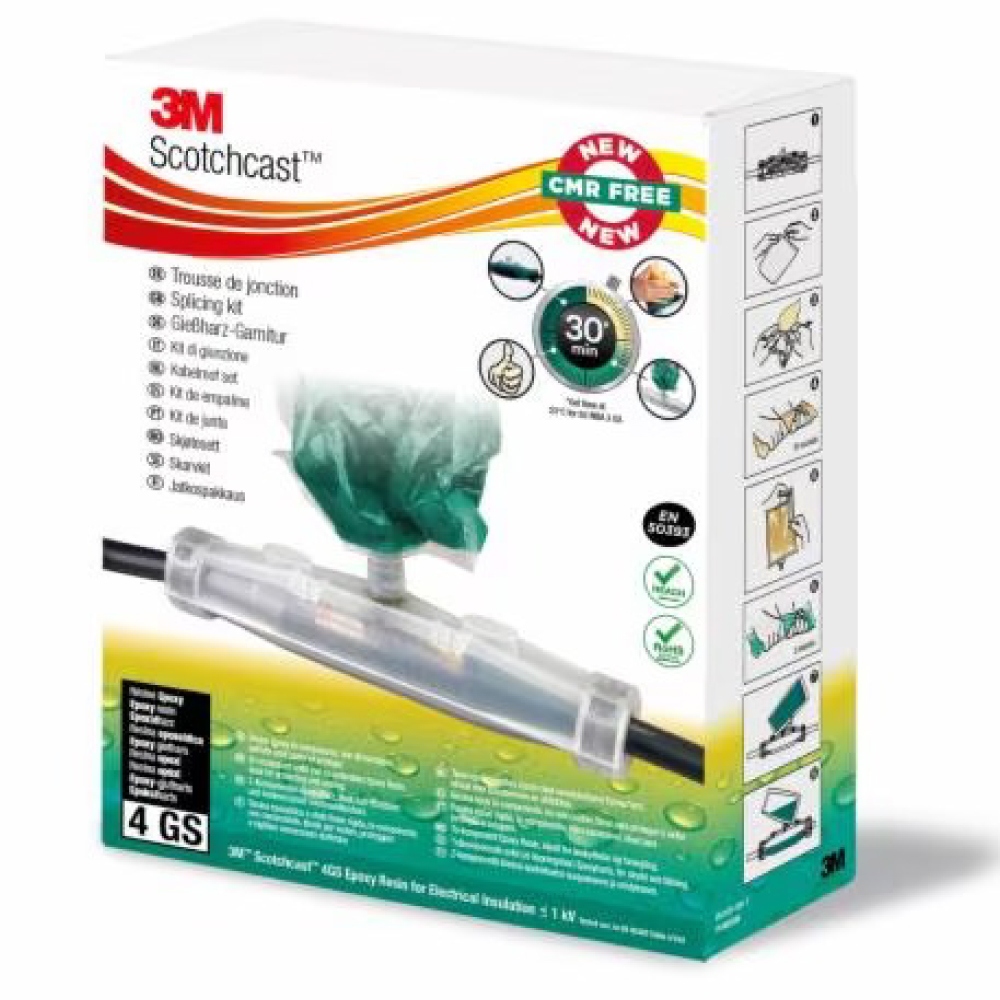

3M Scotchcast 92-NBA 0 GS Inline Joint Kit with Resin 4GS
3M Scotchcast 92-NBA 0 GS Inline Joint Kit with Resin 4GS
€ 30.88 30.88 incl. VAT (25.95 excl. VAT), per piece *
Availability: on request
Packaging unit: 1 piece
Manufacturer: 3m Scotch
Country of origin: FR/0001
Customs tariff number: 35061000
Weight per piece: 400 g
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
3M Scotchcast 92-NBA 0 GS inline joint kit with Scotchcast 4GS epoxy resin. Designed for 1-core up to 5-core non-shielded, polymeric, low-voltage energy cables up to 0.6/1.0 (1.2) kV. The kit includes Scotchcast 4GS resin with colour mixing indicator delivered in a two-chamber plastic pouch with integrated spout and an aluminium Guard Bag, plus a one-part transparent mould body for simple handling and easy control of connector distances.
- Pack size: 1 kit (mould body + 1 × 90 ml resin bag)
Specifications / Approvals
- Rated voltage U0/U (Umax): 0.6/1 (1.2) kV
- Type Test passed per EN 50393 Table 3: Type I Joint, Sequence A1
- Resin: 3M Scotchcast 4GS (CMR-, Isocyanate-, Halogen- and SVHC-free), REACH & RoHS compliant
- Operating temperature: −40 °C to +110 °C (continuous), 130 °C overload
Applications
- Electrical insulation and mechanical protection of joints with compression or mechanical connectors
- Indoor and outdoor, underground and submerged applications
Characteristics
- Transparent one-part mould body with Snap-Fit closing system
- Closed Mixing & Pouring (CMP) system in two-chamber pouch; colour mixing indicator
- Strong adhesion to metals and plastics; enhanced water/humidity resistance during curing
- Pre-cut foam sealing elements for reliable sealing without tooling
- Abrasive sponge for jacket preparation; closure cap to prevent pollution
- Shelf life of resin: 36 months (5–40 °C, <75% r.h., sealed Guard Bag)
Technical specifications
| Body size | NB-A0 |
| Length L (mm) | 148 |
| Diameter D (mm) | 32 |
| Height H (mm) | 65 |
| Type of resin | Epoxy |
| Resin identification | Scotchcast 4GS |
| Number of resin bags | 1 × 90 ml |
Handling
- Keep resin bags at 10 °C or warmer before mixing. In cooler ambient conditions, store in a warmer area until ready to mix.
- Resin is supplied in a two-chamber pouch with integrated spout and aluminium Guard Bag for humidity protection.
- The re-openable seam and integrated spout with membrane provide a Closed Mixing and Pouring (CMP) system.
- After opening the seam, mix both components until resin turns to a homogenous green colour (darker green when fully cured). Colour gradation may vary with storage or temperature.
- To pour, connect the spout with the dome and turn 180° to open the membrane.
- The CMP system enables resin handling without skin contact.
- Foam sealing elements can be adapted to cable diameters by removing pre-cut adapter rings.
- A web spacer ensures minimum required distance between connectors (usable for 3-core and 4-core cables).
- Apply closure cap onto the dome for protection against pollution.
- Remaining resin in the pouch may be disposed of as household waste after curing.
- For detailed resin data (Gel-Time, Pot-Life, viscosity, density), refer to the resin data sheet.
Shelf Life and Storage
- 3M™ Scotchcast™ 4GS resin shelf life: 36 months from production date (5–40 °C, <75% r.h.) in sealed Guard Bag.
- Expiry date printed on Guard Bag and carton label.
- Storage at elevated temperatures may bleach the blue colorant and alter mixed colour gradation, without affecting performance.
- Storage beyond labelled expiry does not necessarily mean unusable. Applicability must then be verified by the user.
Hazard statements (CLP)
Hazard pictogram(s):
Product identifier (contains)
- 4,4'-Methylen-diphenyldiglycidylether CAS: 1675-54-3 EC: 216-823-5 45–55%
- Formaldehyde, oligomeric reaction products with 1-Chloro-2,3-epoxypropane and phenol CAS: 9003-36-5 EC: 500-006-8 45–55%
Hazard statements (H-statements)
- H315 – Causes skin irritation.
- H319 – Causes serious eye irritation.
- H317 – May cause an allergic skin reaction.
- H410 – Very toxic to aquatic life with long lasting effects.
Precautionary statements (P-statements)
Prevention:
- P273 – Avoid release to the environment.
- P280 – Wear protective gloves.
Response:
- P305 + P351 + P338 – IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing.
- P333 + P313 – If skin irritation or rash occurs: Get medical advice/attention.
- P391 – Collect spillage.
3M Deutschland GmbH, Carl-Schurz-Straße l, 41453 Neuss, Deutschland, 02131-14-2914 / 0, [email protected], www.3m.com/msds
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | - | 3M 92-NBA 0 GS |
