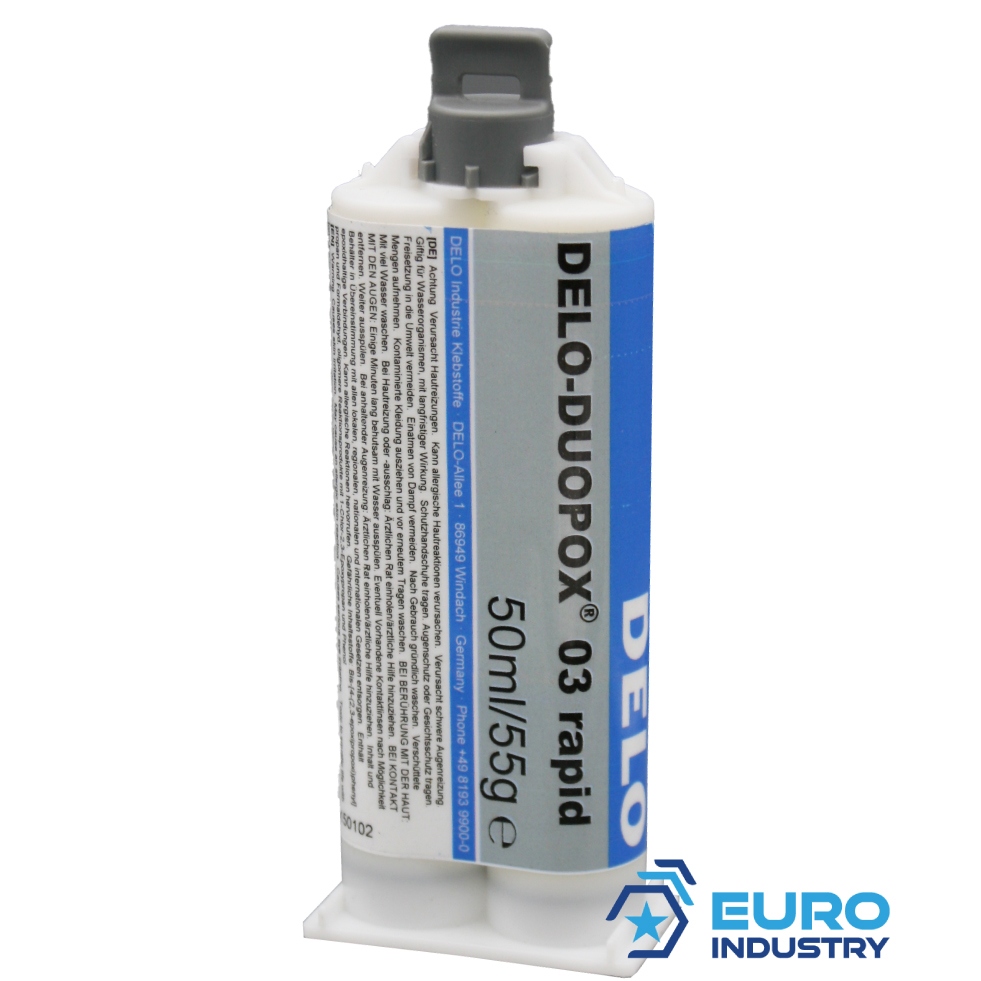

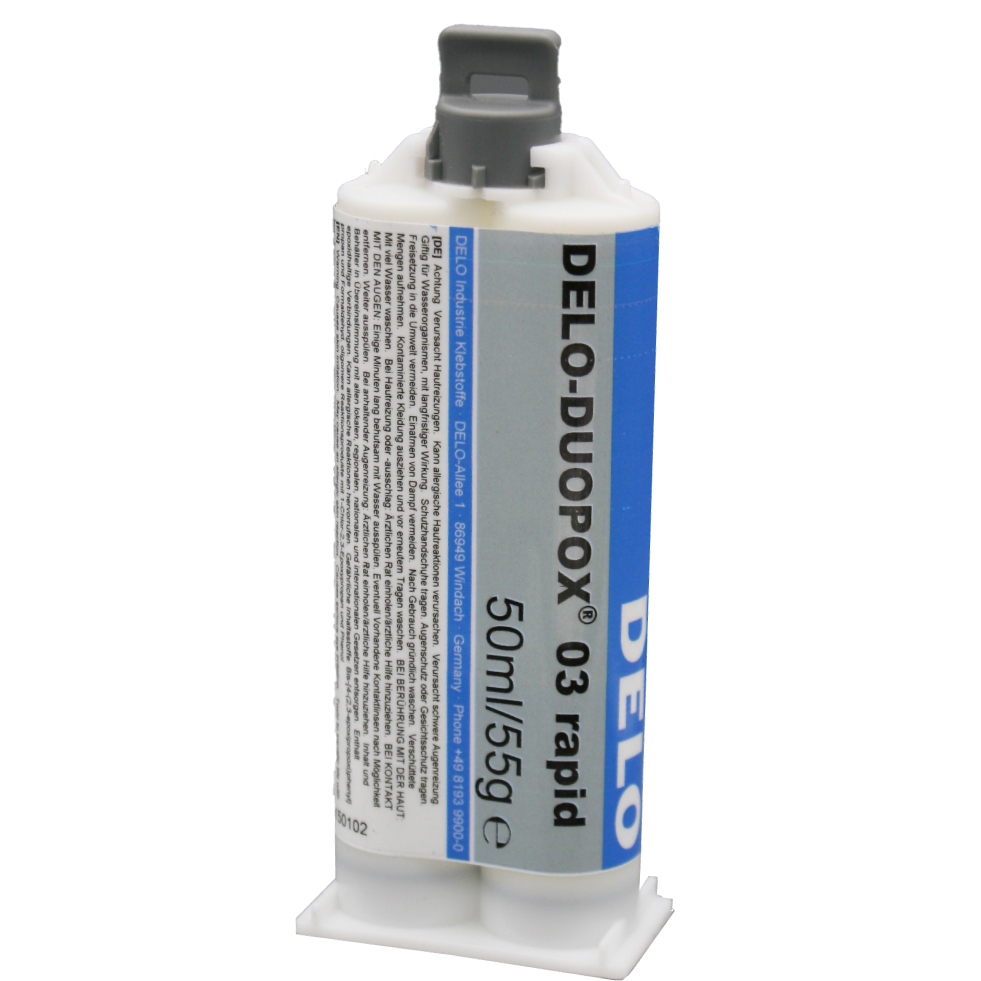

Delo-Duopox 03 Rapid Two-Part Epoxy Adhesive for electronics 50ml

Delo-Duopox 03 Rapid Two-Part Epoxy Adhesive for electronics 50ml

€ 35.64 35.64 incl. VAT (29.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: DELO

Country of origin: DE/0004

Customs tariff number: 35061000

Weight per piece: 80 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

four - one = ?

( Examples: two + three = 5, three - five = -2 )

DELO-DUOPOX® 03 rapid (formerly Automix® 03 rapid) is a medium-viscosity, unfilled 2-component epoxy adhesive for fast assembly bonding. It cures at room temperature and is suitable for metals, plastics, and electronic components.

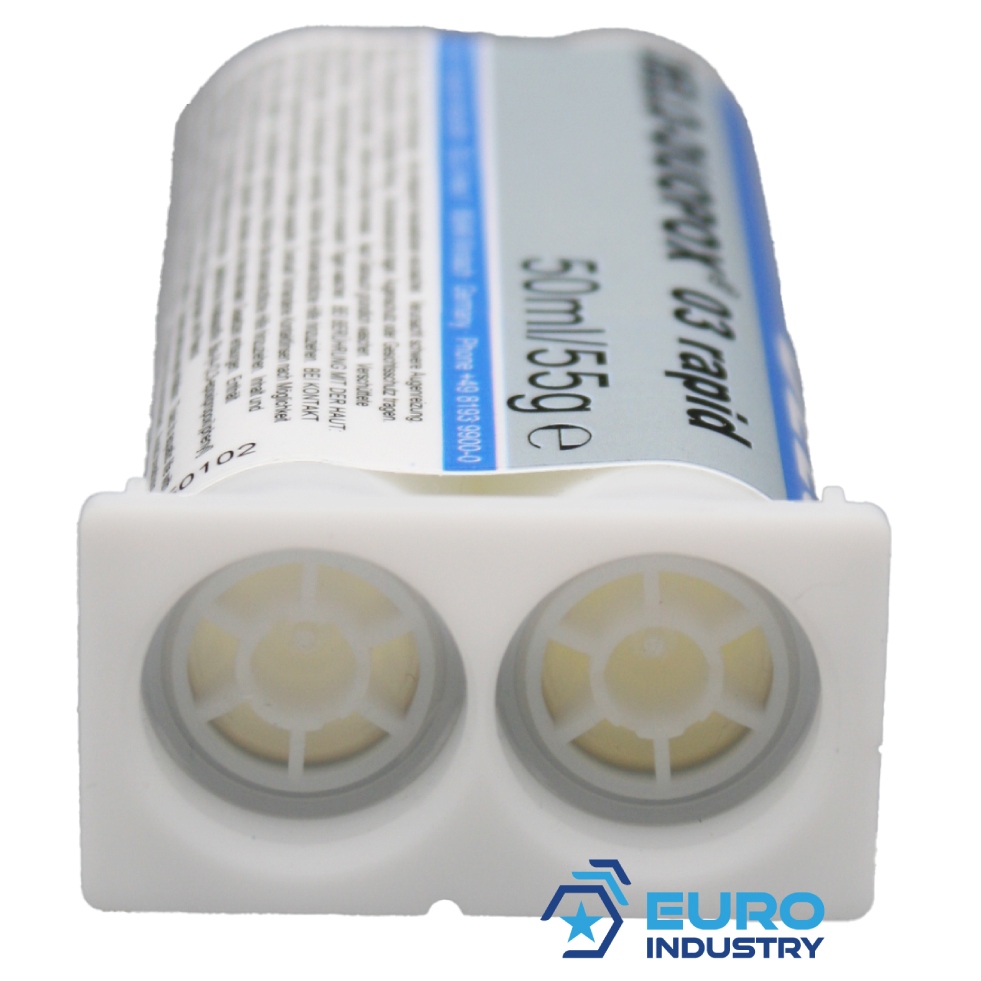

Pack size: 50 ml dual cartridge
Other sizes available on request

Applications

General structural bonding in mechanical and tool construction
Assembly of components in electronics, electrical and precision engineering
Quick repairs in workshops and maintenance
Bonds with small gap tolerances (e.g., metal, PC, ABS, POM)

Features

Fast curing: handling strength after 11 min, functional strength after 2 h
Full cure: 24 h at 23 °C or 40 min at 80 °C
Application directly from DELO-AUTOMIX cartridge
RoHS compliant (2015/863/EU), tested to UL 94 HB
Temperature resistance from –40 °C to +80 °C (short-term up to 140 °C)

Technical Data

Physical Properties
Chemical base	Epoxy resin, 2C
Color (cured)	Yellowish transparent
Density component A / B	1.15 / 1.14 g/cm³
Viscosity A / B	13,000 / 18,000 mPa·s

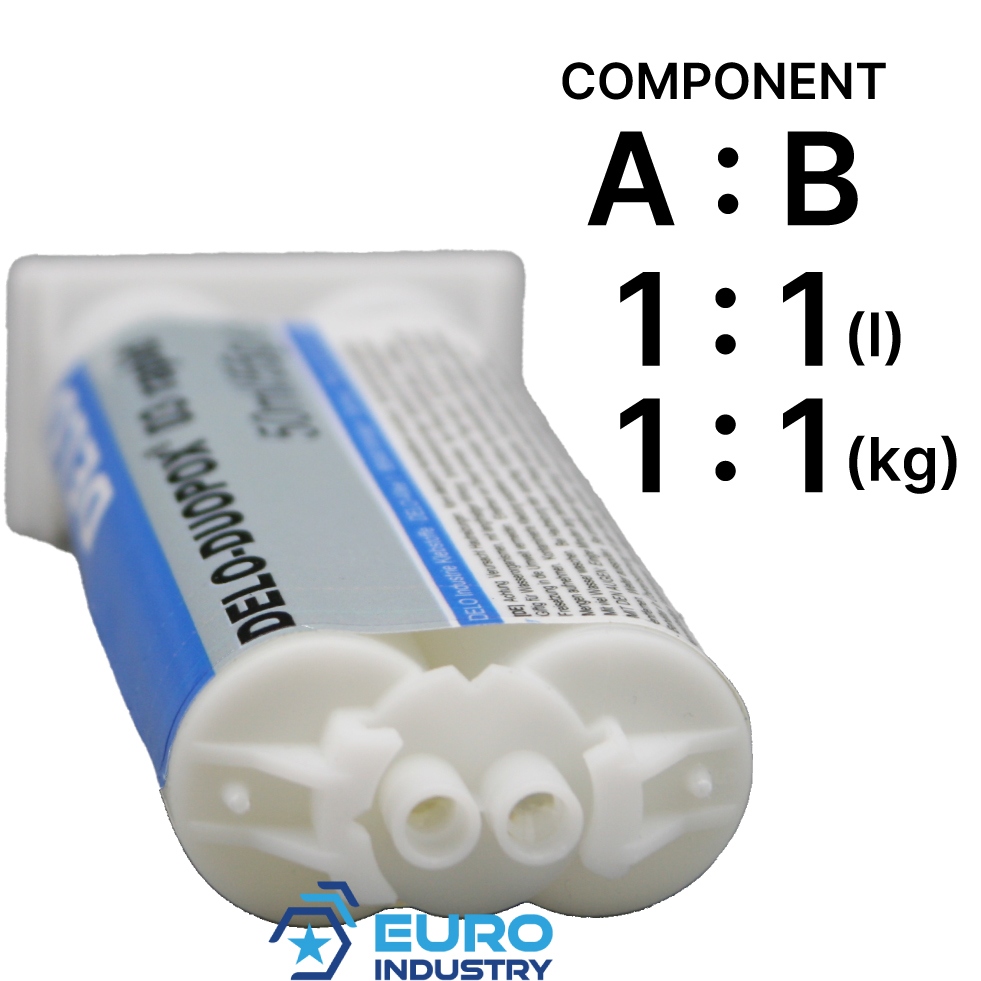

Mix ratio (volume / weight)	1:1 / 1:1
Working life (3 g at 23 °C)	3 min
Reaction temperature (20 g mix)	140 °C
Shrinkage	4 vol.%
Water absorption (24 h)	1 wt.%
Mechanical Properties
Shear strength (Al/Al 1.6 mm / 6 mm)	13 MPa / 16 MPa
Tensile strength	31 MPa
Elongation at break	19 %
Modulus of elasticity	2,000 MPa
Shore hardness D	75
Impact strength (St/St)	1.1 N/mm
Thermal Properties
Service temperature range	–40 °C to +80 °C
Short-term stability	up to +140 °C
Glass transition temperature (est.)	approx. 65–70 °C
Thermal expansion	242 ppm/K
Electrical Properties
Dielectric strength	18 kV/mm
Surface resistivity	>1 × 10¹¹ Ω
Volume resistivity	>1 × 10¹³ Ω·cm
Tracking resistance (CTI)	600
Dielectric constant	2.9

* All values determined at 23 °C / 50 % r.h. under laboratory conditions.

Curing

Handling strength: after approx. 11 min at 23 °C
Functional strength: after approx. 2 h
Final strength: after 24 h at room temperature or 40 min at 80 °C

Recommended Accessories

Mixing nozzle: Mixer 050 short
Dispensing gun: DELO-XPress
Cleaner: Delothen NK1 400ml spray

Storage & Shelf Life

Unopened shelf life: 12 months at 23 °C
Store in a cool, dry, and light-protected place

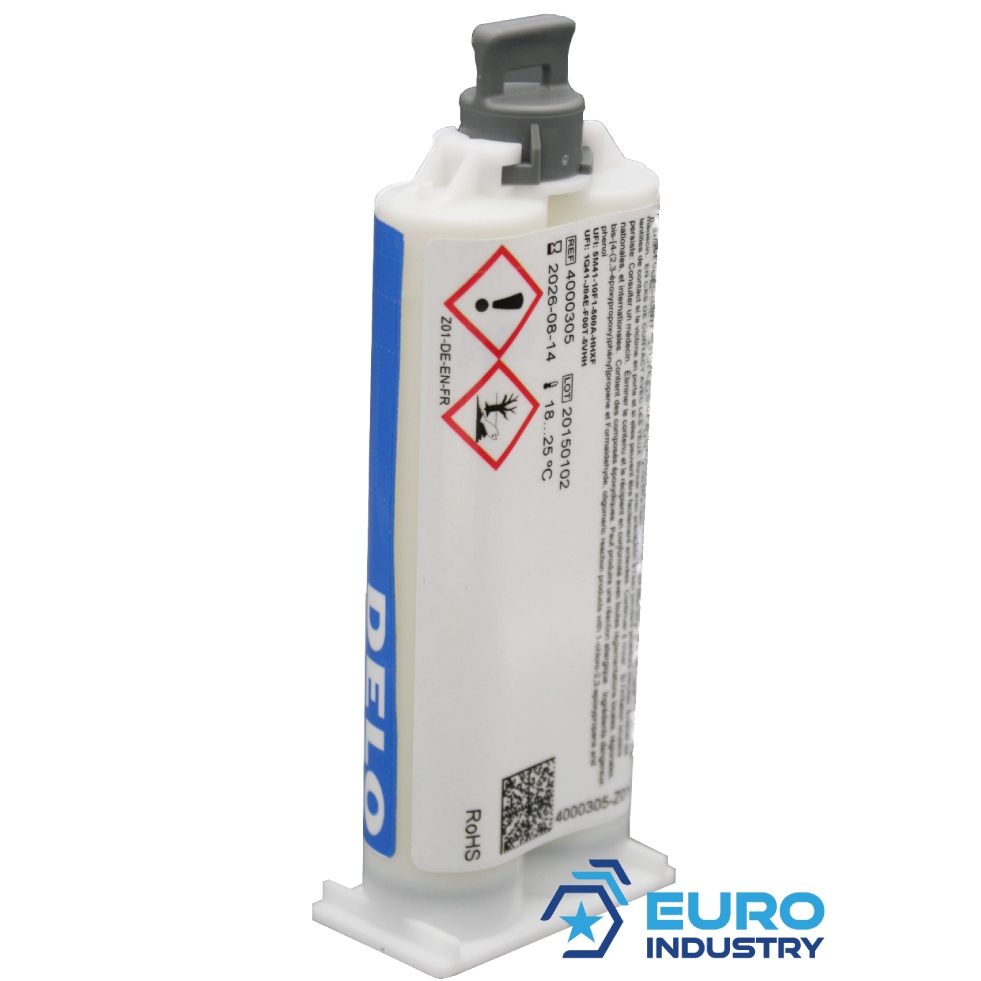

Hazard Information (CLP)

Signal word: Warning (Part A & B)

Hazard Statements (H-statements)

H315: Causes skin irritation. (Part A)
H317: May cause an allergic skin reaction. (Part A)
H319: Causes serious eye irritation. (Part A & B)
H411: Toxic to aquatic life with long lasting effects. (Part A)

Precautionary Statements (P-statements)

Prevention:

P280: Wear protective gloves (breakthrough time 1–4 h, e.g. Viton® recommended). (Part A)
P280: Wear eye protection or face protection. (Part A & B)
P273: Avoid release to the environment. (Part A)

Response:

P361: Take off immediately all contaminated clothing. (Part A)
P302 + P352: IF ON SKIN: Wash with water. (Part A)
P305 + P351 + P338: IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing. (Part A & B)
P337 + P313: If eye irritation persists: Get medical advice/attention. (Part B)

Additional Labeling (EUH-statements)

EUH208: Contains epoxy compounds. May cause allergic reactions. (Part A)

Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,

Information on product safety (Manufacturer, Contact)

DELO Industrie Klebstoffe GmbH & Co. KGaA, DELO-Allee 1, 86949 Windach, GERMANY, +49 8193 9900-0, [email protected], www.delo.de

No files available for download

Property	GTIN/EAN	MPN (Manufacturer Part Number)
-	-	DELO4000305
