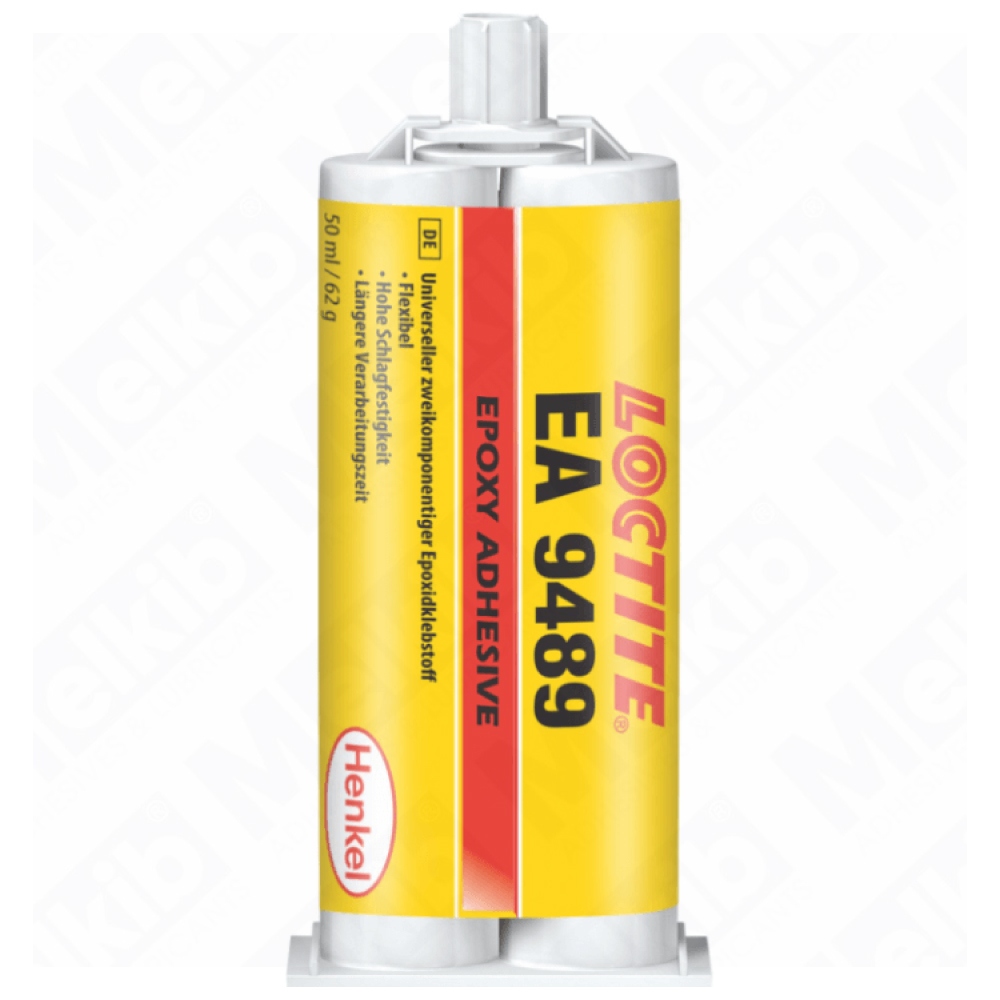

LOCTITE® EA 9489 (known as Hysol® 9489) is a 2-part, grey epoxy adhesive that is formulated for an extended working life of 60 - 120 min, thus allowing more time to adjust parts during assembly.

Size: 50 ml dual cartridge (IDH no. 2056901)
Also available in: 400 ml dual cartridge

Application

Repairing strain gauges, sealing seams on fiberglass components
Repairing printed circuit boards
Bonding stainless steel inserts, and rubber hose to steel tubing.

Characteristics

Extended working life
Toughened
Medium viscosity
Flexible bondline

Technical specifications

Chemical basis	Epoxy (Resin) / Polyamide (Hardener)
Color (resin / hardener / mixture)	Light beige / Grey opaque / Grey
Mix ratio (volume / weight)	1:1 / 100:85
Specific Gravity @ 25°C (resin / hardener)	1.32–1.38 / 1.06–1.12 g/cm³
Viscosity @ 25°C (resin / hardener)	60,000–175,000 / 20,000–45,000 mPa·s (Brookfield RVT, 10 rpm)
Pot life (200 g, 25 °C)	60–110 min
Fixture time (light handling)	approx. 300 min (at 22 °C)
Glass transition temperature (Tg, ASTM E1640-99)	54 °C
Shore hardness (ISO 868)	D 60
Lap Shear Strength on Aluminum (abraded, 22 °C)	4 N/mm²

Recommended Accessories

Mixing nozzle: Loctite 984569, Teroson 2900614 (short)
Manual dispenser: Loctite 96001

LOCTITE EA9489, Hysol 9489

Hazard Statements (CLP)

Signal Word: Danger (Part A) / Warning (Part B)
Hazard Statements:

H314 Causes severe skin burns and eye damage (Part B).
H315 Causes skin irritation (Part A).
H317 May cause an allergic skin reaction (Part A and B).
H319 Causes serious eye irritation (Part A).
H411 Toxic to aquatic life with long-lasting effects (Part A).
Precautionary Statements:
Prevention:
P273 Avoid release to the environment (Part A).
P280 Wear protective gloves/protective clothing/eye protection/face protection (Part B).
Response:
P302+P352 IF ON SKIN: Wash with plenty of water and soap (Part A).
P333+P313 If skin irritation or rash occurs: Get medical advice/attention (Part A and B).
P337+P313 If eye irritation persists: Get medical advice/attention (Part A).
P303+P361+P353 IF ON SKIN (or hair): Remove all contaminated clothing immediately. Wash skin with water [or shower] (Part B).
P305+P351+P338 IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing (Part B).
P310 Immediately call a POISON CENTER or doctor (Part B).
