Loctite EA 9461 Two Part Epoxy Adhesive for thermoplastics grey 50ml

Loctite EA 9461 Two Part Epoxy Adhesive for thermoplastics grey 50ml

pics/Loctite/Copyright EIS/Cartridge/EA 9461/loctite-ea-9461-structural-bonding-epoxy-adhesive-grey-50ml-cartridge-001.jpg

€ 26.12 26.12 incl. VAT (21.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Henkel

Country of origin: IT/0005

Customs tariff number: 35061000

Weight per piece: 110 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

three + two = ?

( Examples: two + three = 5, three - five = -2 )

LOCTITE® EA 9461 (also known as Hysol 9461) is a 2-part, grey, structural bonding epoxy that cures at room temperature to provide a toughened bond. Its thixotropic properties make it good for gap filling and it provides both high peel and shear strength.

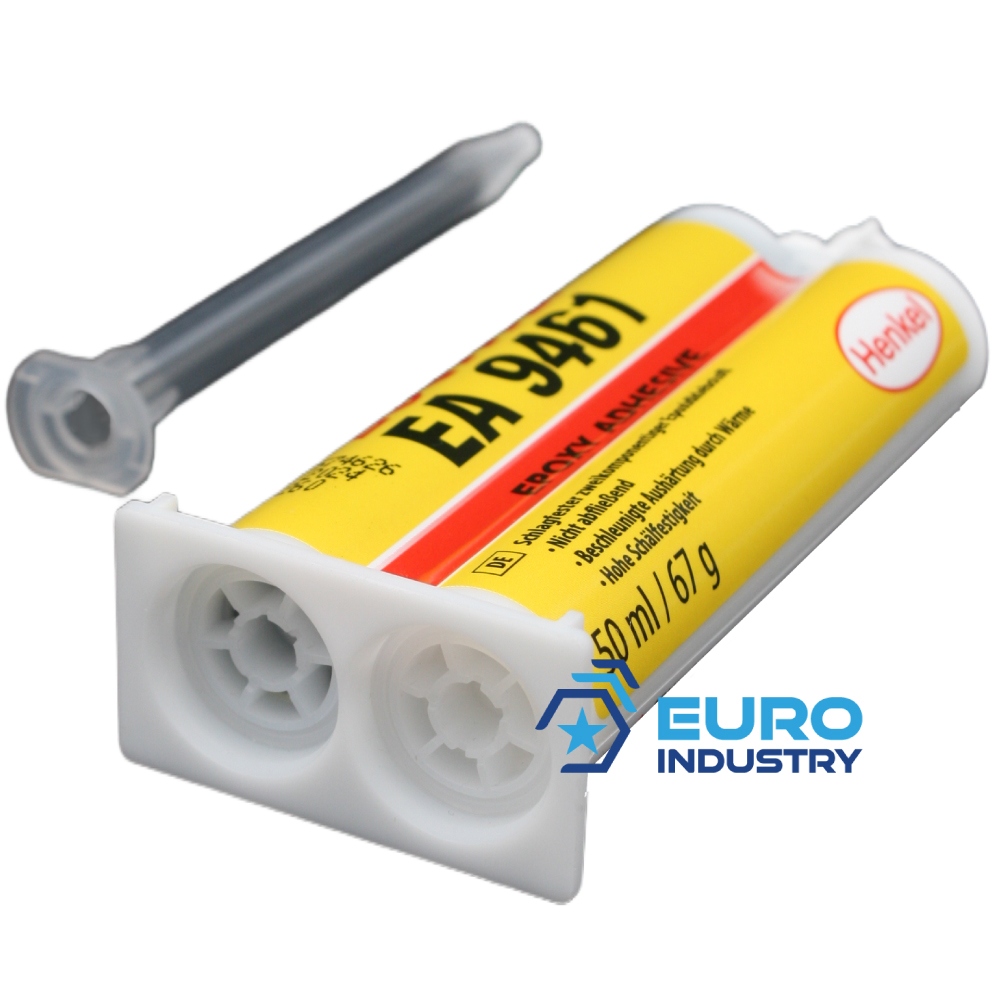

Pack size: 50 ml / 67g double cartridge (Loctite no. 2061254)
Available as well in 400ml double cartridge

Application

Ideal for joining dissimilar substrate materials including metals, engineering thermoplastics and thermoset laminates such as SMC.

Characteristics

Creates a tough bond
Thixotropic and non-sagging
Good for gap filling
High peel and shear strength

Technical Information

Chemical basis	Epoxy (resin) / Amine (hardener)
Color (resin / hardener / mixture)	White opaque / Black opaque / Grey paste
Mix ratio (volume / weight)	1:1 / 100:100
Density (resin / hardener)	1.35 / 1.31 g/cm³ (at 25 °C)
Viscosity (mixture)	Thixotropic (Non-sagging paste)
Pot life (100 g, 22 °C)	40 min
Fixture time	240 min (at 22 °C)
Max Operating Temperature	+120 °C
Shore hardness	D 80
Adhesion on aluminium (abraded)	21 N/mm² (Lap Shear Strength)

Recommended Accessories

Mixing nozzle: Loctite 984569, Teroson 2900614 (short)
Manual dispenser: Loctite 96001

Hazard Information (CLP)

Hazard pictogram:

Signal word:

Warning (Part A) / Danger (Part B)

Hazard statements:

H314 Causes severe skin burns and eye damage. (Part B)
H315 Causes skin irritation. (Part A)
H317 May cause an allergic skin reaction. (Both Parts)
H319 Causes serious eye irritation. (Part A)
H411 Toxic to aquatic life with long-lasting effects. (Part A)

Precautionary statements:

Prevention:
- P273 Avoid release to the environment. (Part A)
- P280 Wear protective gloves/protective clothing/eye protection/face protection. (Part B)
Response:
- P302+P352 IF ON SKIN: Wash with plenty of water and soap. (Part A)
- P303+P361+P353 IF ON SKIN (or hair): Remove all contaminated clothing immediately. Rinse skin with water [or shower]. (Part B)
- P333+P313 If skin irritation or rash occurs: Get medical advice/attention. (Both Parts)
- P337+P313 If eye irritation persists: Get medical advice/attention. (Part A)
- P305+P351+P338 IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing. (Part B)
- P310 Immediately call a POISON CENTER or doctor. (Part B)

Loctite EA9461, Loctite EA-9461

Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,

Information on product safety (Manufacturer, Contact)

Henkel AG & Co. KGaA, Henkelstr. 67, 40589 Düsseldorf, GERMANY, +49 211 7970, [email protected], www.henkel.com

loctite-9461-structural-bonding-epoxy-adhesive-grey-datasheet.pdf (77.86 KB)
