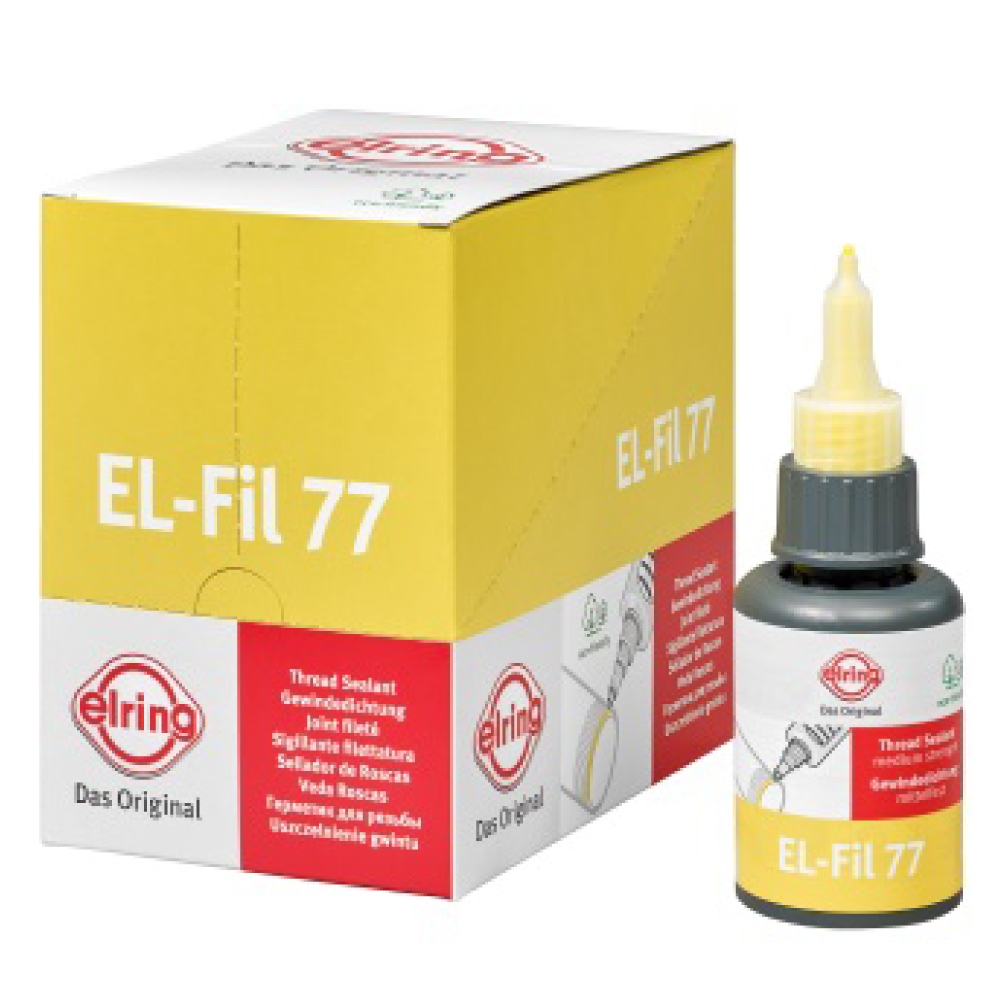

Elring 954.020 EL-Fil 77 Anaerobic pipe thread sealant yellow 50ml
€ 20.17 20.17 incl. VAT (16.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Elring
Country of origin: DE/0004
Customs tariff number: 32141010
Weight per piece: 90 g
No problem. Simply fill out the form and we will answer you as soon as possible.
Elring EL-Fil 77 is a high-strength, non-hazardous anaerobic pipe thread sealant for reliable sealing of metallic threaded joints exposed to oil, fuel, water, and coolant. It forms a resistant sealing film upon metallic contact and exclusion of air, ensuring long-term, temperature-resistant performance even at low temperatures.
- Pack size: 50 ml concertina bottle (954.020)
Applications
- Thread sealing for pipes and fittings up to M80
- Maintenance and repair in industrial and automotive systems
- Outdoor applications and low-temperature conditions
- Suitable for contact with oil, grease, fuel, coolant, and salt water
Features
- Single-component anaerobic sealant
- Colour: yellow
- Non-hazardous formulation (no CLP labeling required)
- Immediate sealing effect after assembly
- Excellent resistance to common industrial media
- Temperature resistance from –55 °C to +180 °C
Technical Data
| Physical Properties | |
|---|---|
| Chemical basis | Modified acrylate |
| Components | Single component |
| Colour | Yellow |
| Density | 1.09 – 1.13 g/ml (DIN 53217) |
| Viscosity (25 °C) | 20 000 – 40 000 mPas |
| Mechanical Properties | |
| Handling hardness | 10 – 15 min (EN ISO 10964) |
| Functional hardness | 3 – 6 h |
| Complete curing | 12 – 24 h |
| Breakaway torque | 20 – 30 Nm (EN ISO 10964) |
| Thermal Properties | |
| Temperature range | –55 °C to +180 °C |
Instructions for use
- Remove old sealant residues and clean surfaces with solvent.
- Ensure surfaces are clean, dry, and free of oil or grease.
- Optimum application temperature: +23 °C.
- Apply sealant evenly and continuously onto the thread by squeezing the concertina bottle.
- No airing time required; assemble components immediately per manufacturer’s specifications.
- Sealing function is immediate after assembly.
Storage
- Store in a cool (+5 °C – +23 °C), dark, and dry place.
- Minimum shelf life: 24 months in unopened container.
- Batch number format: YYWW (filling date).
ElringKlinger AG, Max-Eyth-Straße 2, 72581 Dettingen/Erms, Deutschland, +49 7123 724 0, [email protected]
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 4041248851906 | 954.020 |
