Loctite 1487439 Static Mix Nozzle for dual cartridges 200/400ml, 10pcs

Loctite 1487439 Static Mix Nozzle for dual cartridges 200/400ml, 10pcs

pics/Loctite/mischduesen/henkel-loctite-984570-statische-mischdüse-fuer-200ml-400ml-kartuschen-c-system-idh-1487439-titelbild.jpg

€ 35.64 35.64 incl. VAT (29.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 box

More…

Manufacturer: Loctite

Country of origin: CH/0039

Customs tariff number: 84799015

Weight per piece: 100 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

one + five = ?

( Examples: two + three = 5, three - five = -2 )

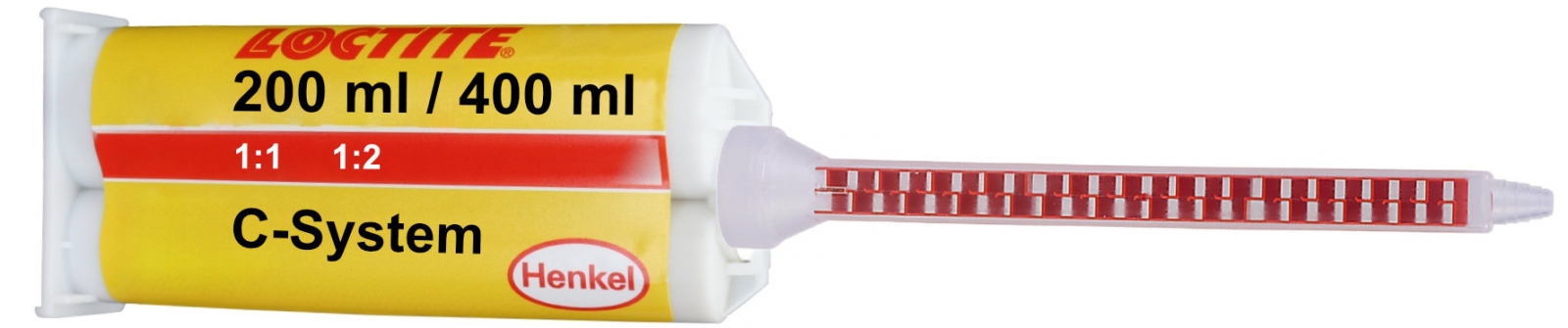

LOCTITE® 984570 (IDH 1487439) is a static mixing nozzle for 200 ml and 400 ml 2-component dual cartridges (C-system). Designed for common mix ratios 1:1 (200 ml) and 2:1 (400 ml), it ensures reproducible, process-stable mixing of two-component adhesives.

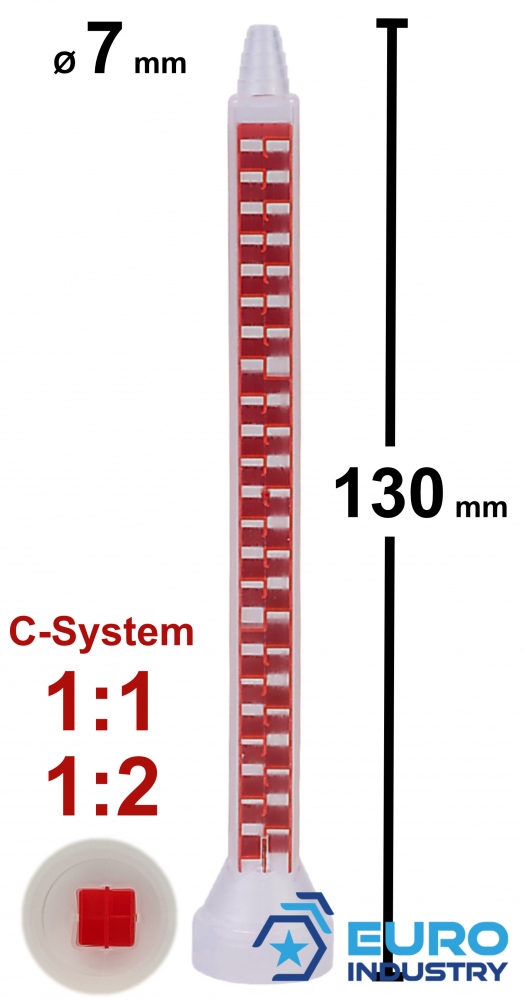

Specifications

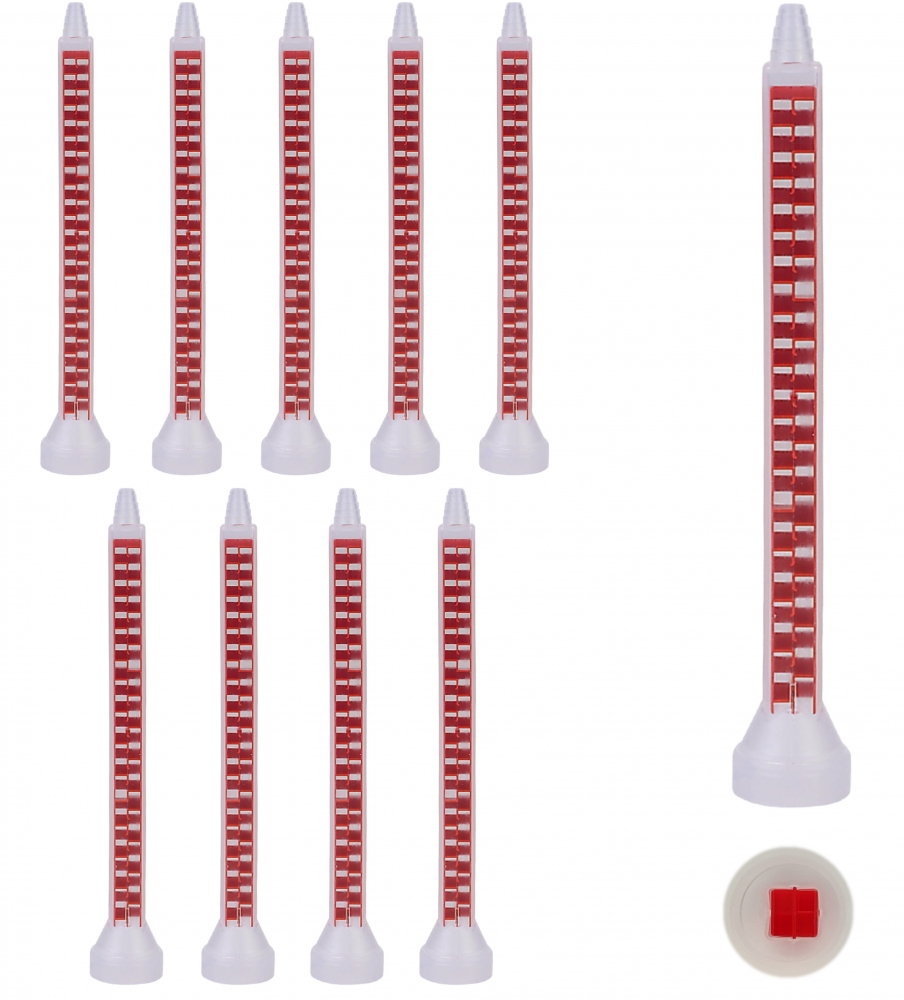

Pack size: 10 nozzles
Tip orifice: Ø 7 mm
Length: 130 mm
Mixing elements: 24
Geometry: Quadro, stepped tip
Cartridge type: 200/400 ml dual cartridge, C-system (cup connection)
Mix ratios: 1:1 (200 ml), 2:1 (400 ml)

Compatible structural adhesives from our shop (selection)

Description	Pack / ratio	IDH No.	Feature, colour
LOCTITE® EA 3421	200 ml / 1:1	2063258	Gap-filling, amber clear
LOCTITE® EA 9466	400 ml / 2:1	2057343 / 451200	General purpose, light beige
LOCTITE® EA 9489	400 ml / 2:1	2056904	Slow cure, grey
LOCTITE® EA 9483	400 ml / 2:1	2056389	Free-flowing, crystal clear

Benefits

Consistent mix quality without manual pre-mixing
Clean, directed bead for precise joint filling
Fast cartridge changeover on line and in the workshop

Recommended accessories

Loctite 984570, Quadro static mixing nozzle, 200 ml 1:1, 400 ml 2:1, 10 pcs

Information on product safety (Manufacturer, Contact)

Henkel AG & Co. KGaA, Henkelstr. 67, 40589 Düsseldorf, GERMANY, +49 211 7970, [email protected], www.henkel.com

No files available for download
