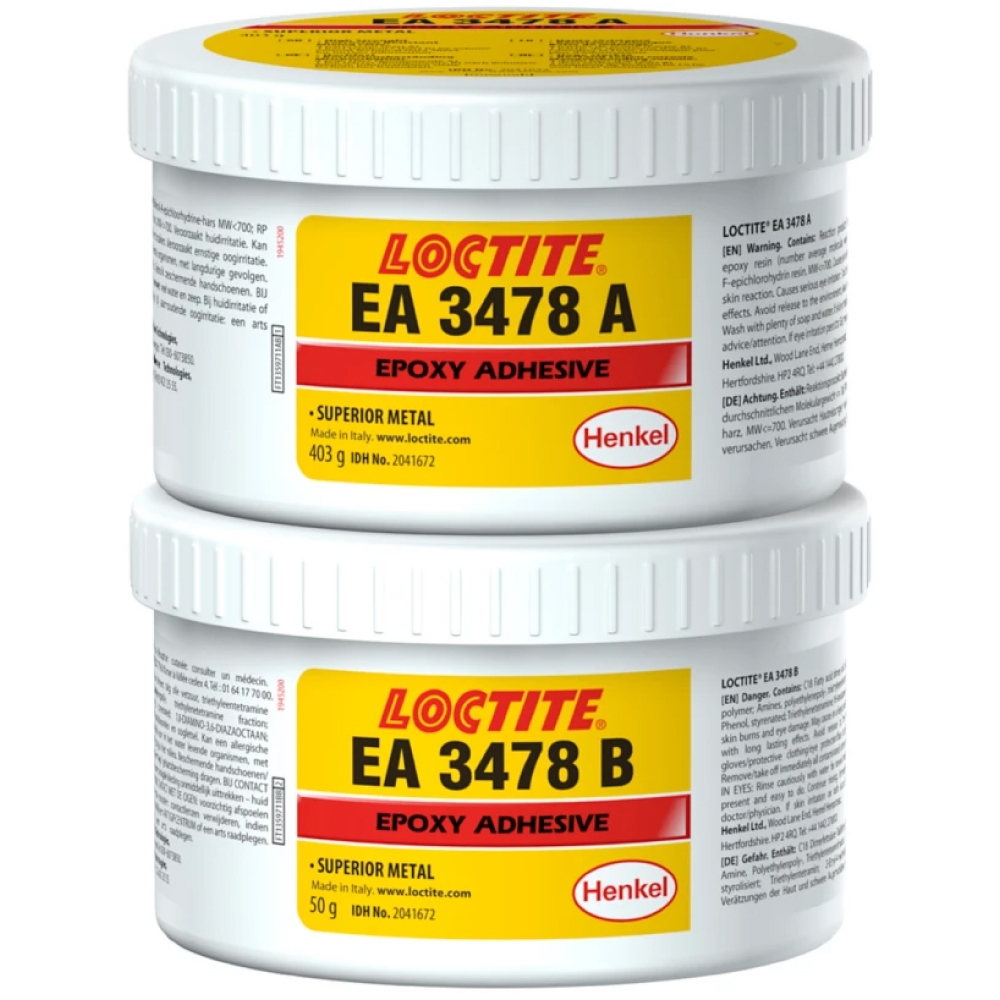

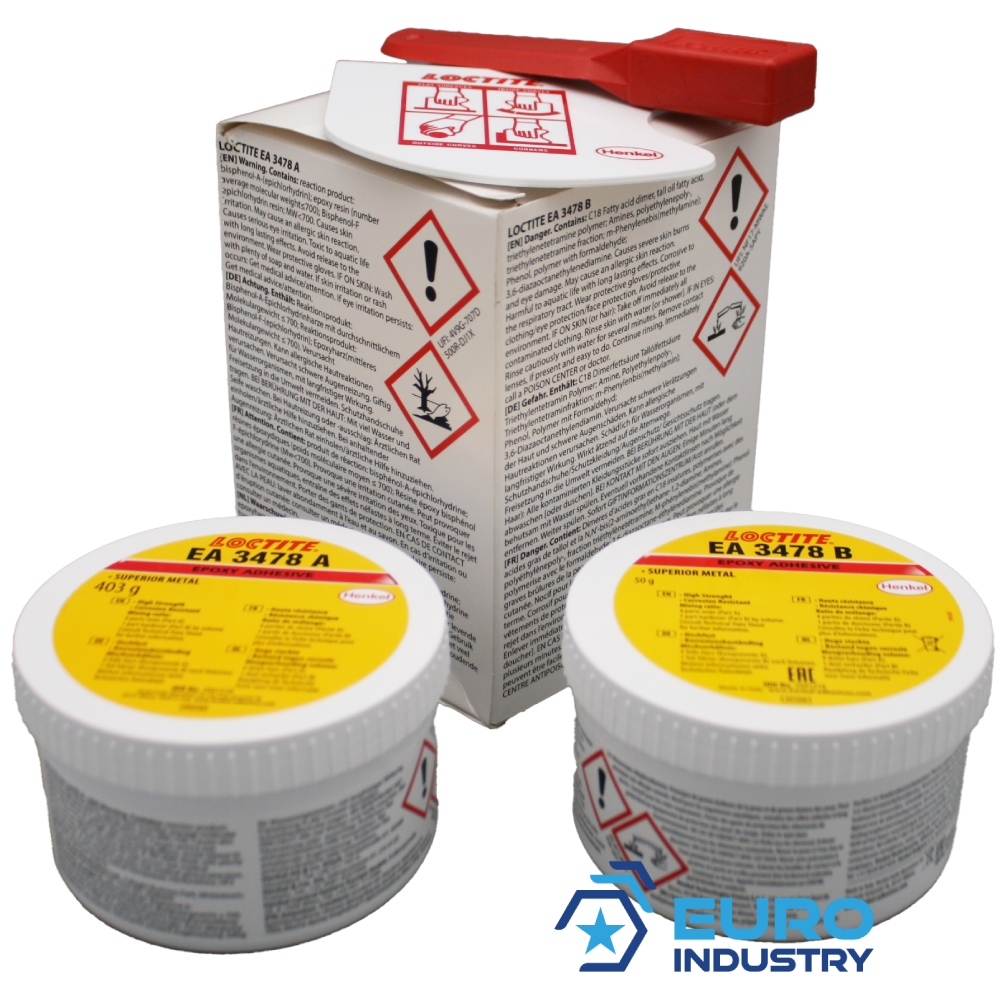

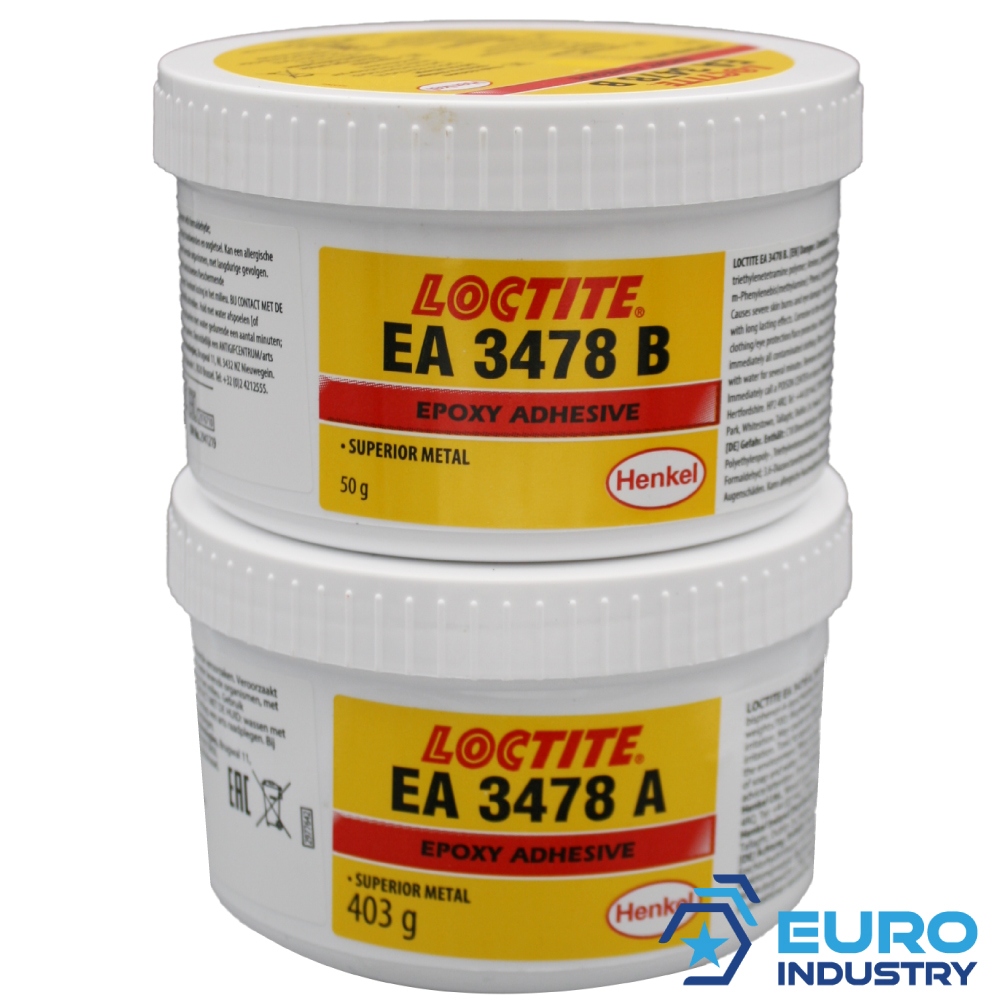

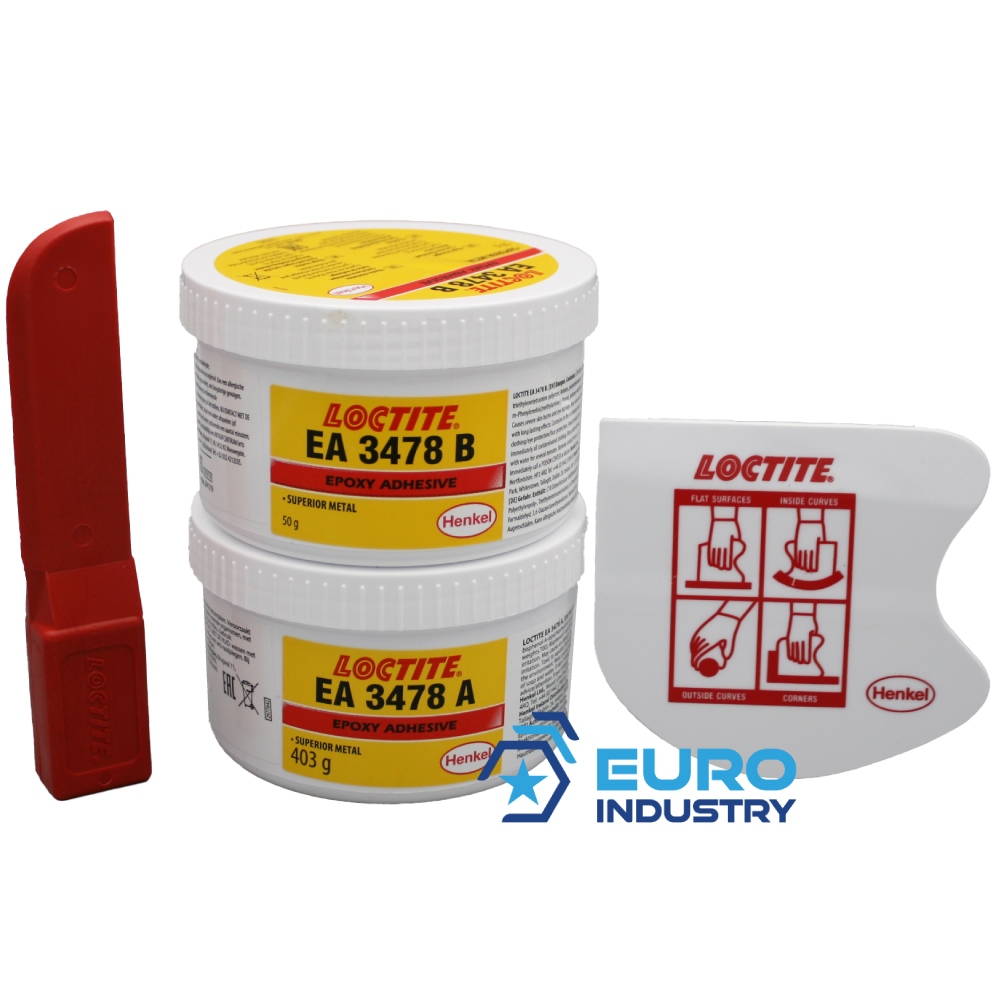

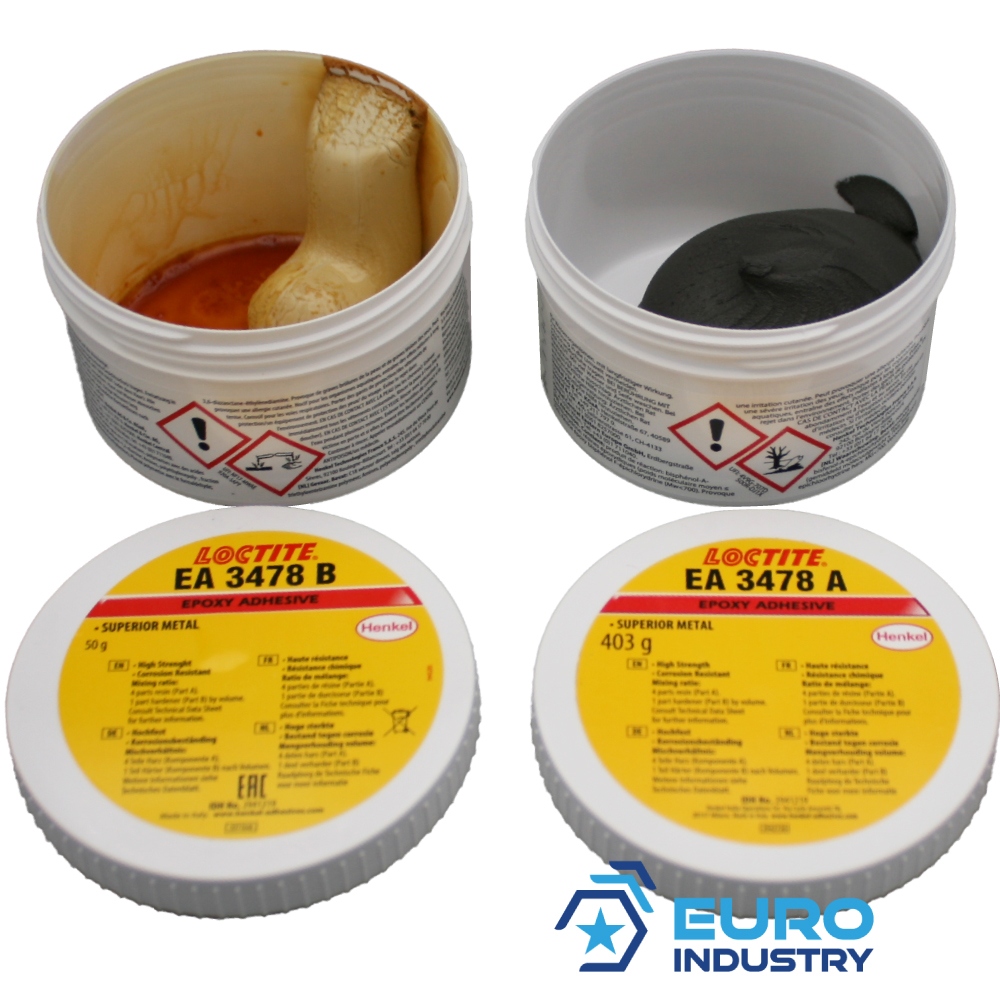

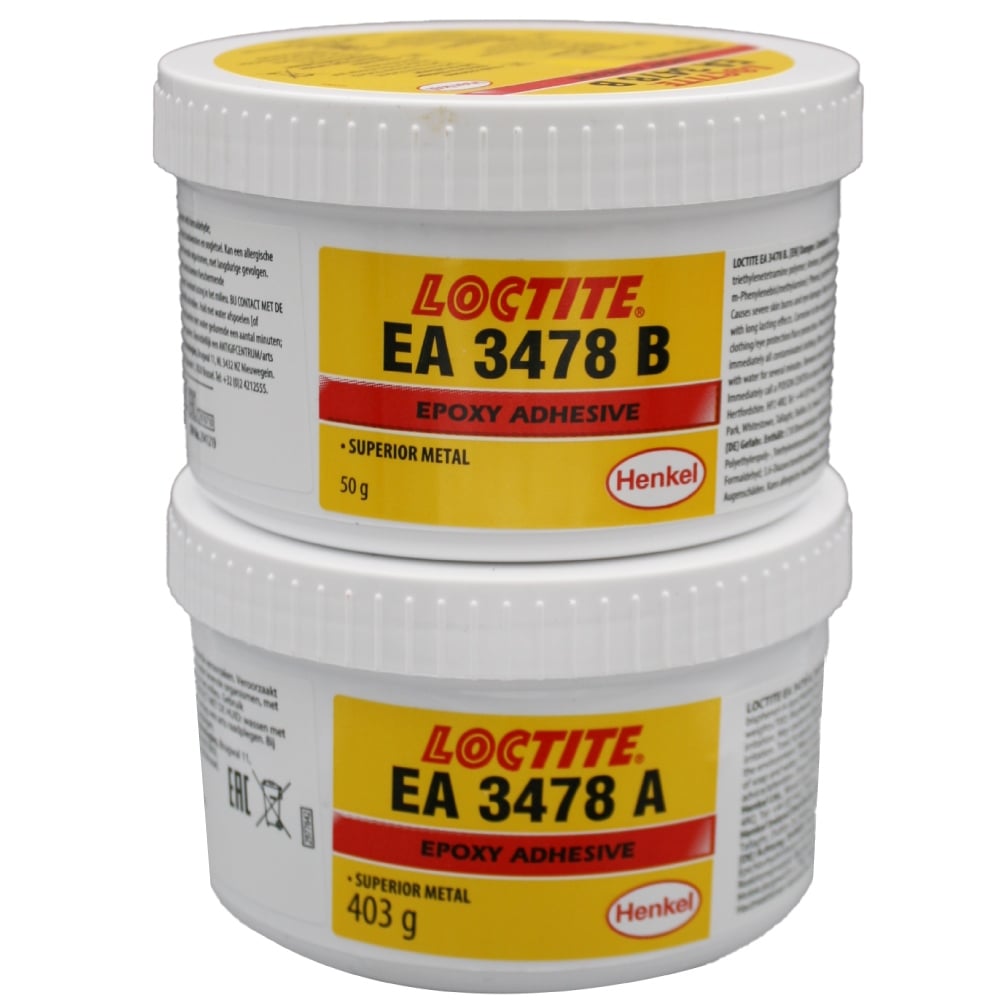

Loctite 3478 Superior Metal Two Part Epoxy Resin System grey 453g set
Loctite 3478 Superior Metal Two Part Epoxy Resin System grey 453g set
€ 154.64 154.64 incl. VAT (129.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Henkel
Country of origin: IT/0005
Customs tariff number: 32141010
Weight per piece: 580 g
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
LOCTITE® 3478™ Superior Metal is a two-component epoxy repair compound filled with ferrosilicon for the rebuilding and protection of worn metal surfaces.
- Pack size: 453 g kit A+B (Loctite no. 2041672)
Applications
- Rebuilding worn fits, housings, shafts, and bearing locations
- Filling pitting and surface damage
- Restoring dimensional accuracy of metal components
Features
- Ferrosilicon-filled – excellent resistance to wear, corrosion, and chemicals
- Durable up to -29 °C to +121 °C in dry conditions
- Paste-like consistency for easy application on vertical surfaces
- Strong adhesion to properly prepared metal surfaces
- Minimizes downtime through fast cure and reliable strength
Technical Data
| Product Properties | |
|---|---|
| Chemical Base | Epoxy resin (filled with ferrosilicon) |
| Components | 2-part – Resin (A) + Hardener (B) |
| Color (A / B / mixed) | Metallic grey / White / Dark grey |
| Mix Ratio (volume / weight) | 4:1 / 7.25:1 |
| Viscosity (A / B) | 1,200,000–2,100,000 / 1,800,000–3,000,000 mPa·s |
| Density (A / B) | 2.50–2.71 / 1.42–1.48 g/cm³ |
| Work Life at 25 °C | 20 minutes |
| Functional Cure at 25 °C | 6 hours |
| Full Cure at 25 °C | 24 hours |
| Coverage | 232 cm² at 6 mm thickness (per 453 g kit) |
| Mechanical Properties (Cured) | |
| Compressive Strength (ISO 604) | 125 N/mm² (18,000 psi) |
| Tensile Strength (ISO 527-2) | 38 N/mm² (5,500 psi) |
| Shear Strength, steel blasted (ISO 4587) | 17 N/mm² (2,500 psi) |
| Shore Hardness D (ISO 868) | 90 |
| Temperature Resistance | -29 °C to +121 °C (dry) |
Instructions for Use
- Clean and sandblast or abrade surfaces for best results
- Mix resin and hardener in a 4:1 ratio by volume until uniform color is achieved
- Apply to prepared area and allow to cure undisturbed
Storage
- Store dry at 8–21 °C
- Do not store below 8 °C or above 28 °C
- Do not return unused material to original container
Hazard Information (CLP)
Hazard Statements (H-phrases)
- H315: Causes skin irritation.
- H317: May cause an allergic skin reaction.
- H319: Causes serious eye irritation.
- H411: Toxic to aquatic life with long lasting effects.
Precautionary Statements (P-phrases)
Prevention:
- P273: Avoid release to the environment.
- P280: Wear protective gloves.
Response:
- P302+P352: IF ON SKIN: Wash with plenty of water and soap.
- P333+P313: If skin irritation or rash occurs: Get medical advice/attention.
- P337+P313: If eye irritation persists: Get medical advice/attention.
Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,
Henkel AG & Co. KGaA, Henkelstr. 67, 40589 Düsseldorf, GERMANY, +49 211 7970, [email protected], www.henkel.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 5010266002163 | 2041672 |
* Price in Euro including VAT, plus forwarding charges.
In parentheses: price in Euro excluding VAT, plus forwarding charges.
Clients outside the EU as well as companies outside of Germany don't pay any VAT (excepting for shipping in Germany)!
