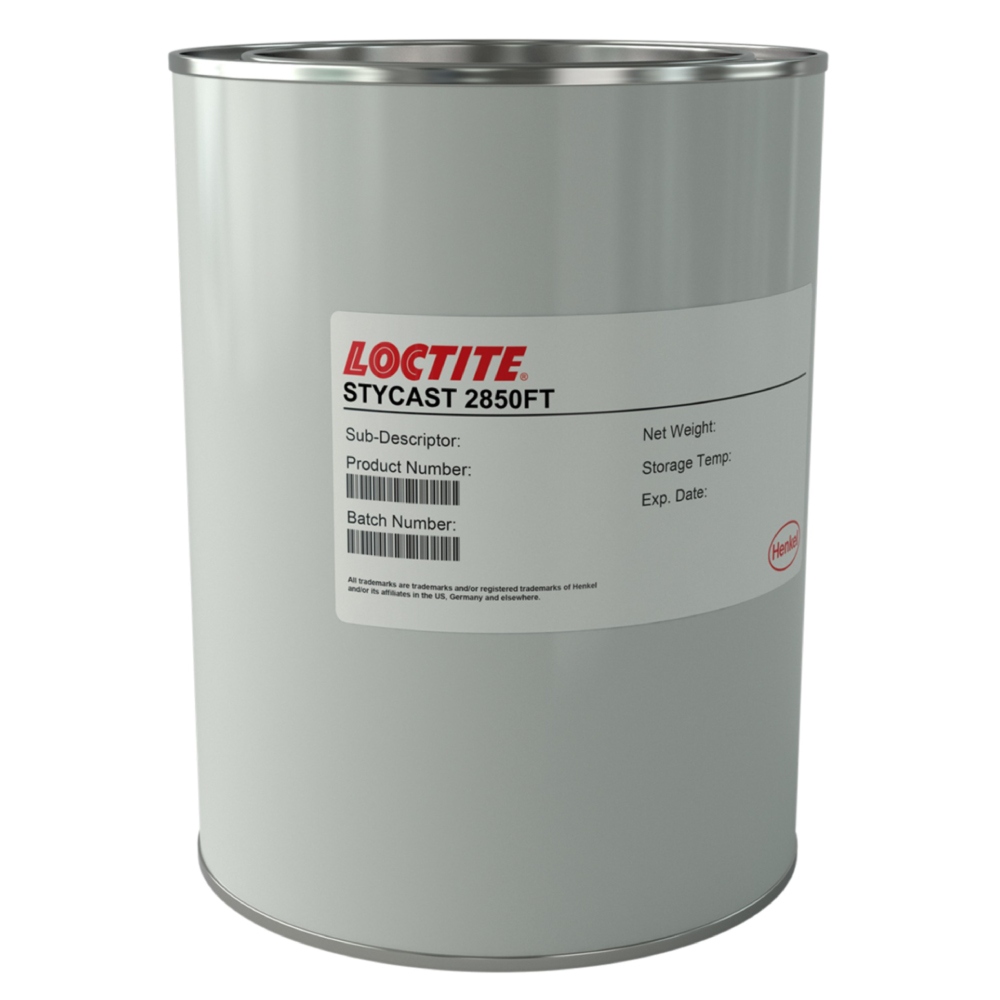

Loctite STYCAST 2850FT Epoxy encapsulant blue 1 kg can

Loctite STYCAST 2850FT Epoxy encapsulant blue 1 kg can

€ 178.44 178.44 incl. VAT (149.95 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 piece

More…

Manufacturer: Henkel

Country of origin: US/0400

Customs tariff number: 35061000

Weight per piece: 1.1 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

eight + one = ?

( Examples: two + three = 5, three - five = -2 )

LOCTITE STYCAST 2850FT - 2-component epoxy-based encapsulant

Thermally conductive epoxy encapsulant recommended for encapsulation of components that require heat dissipation and thermal shock properties.
LOCTITE® STYCAST 2850FT is a black, thermally conductive epoxy encapsulant recommended for encapsulation of components that require heat dissipation and thermal shock properties. It is also available in the unpigmented version.
It can be used with catalysts LOCTITE CAT 9, LOCTITE CAT 11, LOCTITE CAT 23LV or LOCTITE CAT 24LV which change its characteristics.

Application

For encapsulation of components that require heat dissipation and thermal shock properties

Characteristics

Thermally conductive
Electrically insulative
Low CTE
Thermal shock resistant

Technical Information

Technology	Epoxy
Colour	Black
Application	Thermally conductive epoxy encapsulant
Number of components	2 parts
Viscosity, Spindle 7, Speed 10 rpm	250000.0 mPa·s (cP)
Cure type	Room Temperature (Ambient) Cure
Cure time	Catalyst 9: 16 to 24h @ 25 °C; Catalyst 11: 8 to 16h @ 80 °C; Catalyst 23LV: 16 to 24h @ 25 °C
Dielectric strength	Catalyst 9: 14.4 kV/mm; Catalyst 11: 15 kV/mm; Catalyst 23LV: 14.8 kV/mm
Hardness	Catalyst 9, 11: 96 D; Catalyst 23LV: 92 D
Service temperature	Catalyst 9: -40 to 130 °C; Catalyst 11: -55 to 155 °C; Catalyst 23LV: -65 to 105 °C
Flash point	>93 °C
