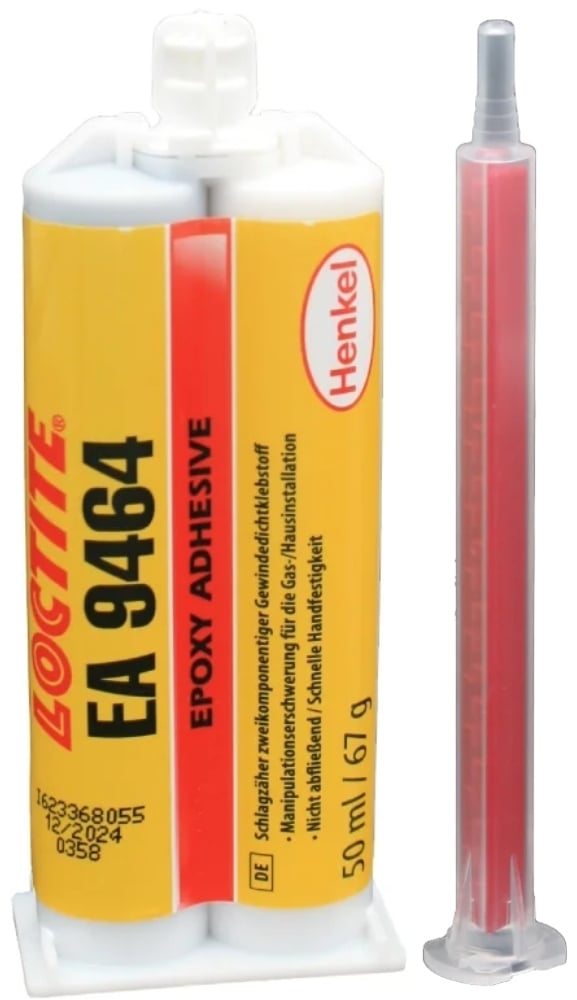

Loctite EA 9464 Two Part Epoxy Adhesive grey 50ml cartridge

Loctite EA 9464 Two Part Epoxy Adhesive grey 50ml cartridge

pics/Loctite/EA 9464/loctite-ea-9464-thixotropic-structural-bonding-epoxy-adhesive-50ml-01.jpg

€ 26.78 26.78 incl. VAT (22.50 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Henkel

Country of origin: DE/0004

Customs tariff number: 35061000

Weight per piece: 110 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

two + three = ?

( Examples: two + three = 5, three - five = -2 )

LOCTITE® EA 9464 (also known as Hysol 9464) is a 2-part, grey structural bonding epoxy adhesive that is fast curing at room temperature and provides a toughened bond. Its thixotropic properties make it good for gap filling and it provides both high peel and shear strength.

Pack Size: 50 ml double cartridge (Loctite no. 2058064)

Application

Good choice for dissimilar materials
It is therefore ideal for joining dissimilar substrate materials including metals, engineering thermoplastics and thermoset laminates such as SMC.

Characteristics

Fast-curing
Creates a tough bond
Good for gap filling
High peel and shear strength

Technical Information

Chemical basis	Epoxy
Color (resin / hardener / mixture)	White opaque / Black opaque / Gray opaque
Mix ratio (volume / weight)	1:1 / 100:100
Specific Gravity @ 25 °C (resin / hardener)	1.35 / 1.3 g/cm³
Viscosity @ 10 s⁻¹ (resin / hardener)	138,000 / 55,000 mPa·s
Pot life (100 g, 22 °C)	15–20 min
Fixture time (to 0.1 N/mm², 22 °C)	180 min
Glass transition temperature (Tg, DSC)	50 °C
Shore hardness (Durometer D)	80
Lap Shear Strength on Aluminum (abraded, 7 d @ 22 °C)	18 N/mm²

Recommended Accessories

Mixing nozzle: Loctite 984569, Teroson 2900614 (short)
Manual dispenser: Loctite 96001

Loctite EA9464, Loctite EA-9464

Hazard Information (CLP)

Signal Word:

Part A: Warning
Part B: Danger

Hazard Statements:

Part A:
- H315 Causes skin irritation.
- H317 May cause an allergic skin reaction.
- H319 Causes serious eye irritation.
- H411 Toxic to aquatic life with long-lasting effects.
Part B:
- H314 Causes severe skin burns and eye damage.
- H317 May cause an allergic skin reaction.
- H361 Suspected of damaging fertility or the unborn child.

Precautionary Statements:

Part A:
- Prevention:
  - P273 Avoid release to the environment.
  - P280 Wear protective gloves.
- Response:
  - P302+P352 IF ON SKIN: Wash with plenty of soap and water.
  - P333+P313 If skin irritation or rash occurs: Get medical advice/attention.
  - P337+P313 If eye irritation persists: Get medical advice/attention.
Part B:
- Prevention:
  - P280 Wear protective gloves/protective clothing/eye protection/face protection.
- Response:
  - P303+P361+P353 IF ON SKIN (or hair): Remove all contaminated clothing immediately. Wash skin with water [or shower].
  - P305+P351+P338 IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing.
  - P310 Immediately call a POISON CENTER/doctor.

Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,

Information on product safety (Manufacturer, Contact)

Henkel AG & Co. KGaA, Henkelstr. 67, 40589 Düsseldorf, GERMANY, +49 211 7970, [email protected], www.henkel.com

loctite-ea-9464-thixotropic-structural-bonding-epoxy-adhesive-datasheet.pdf (78.95 KB)
