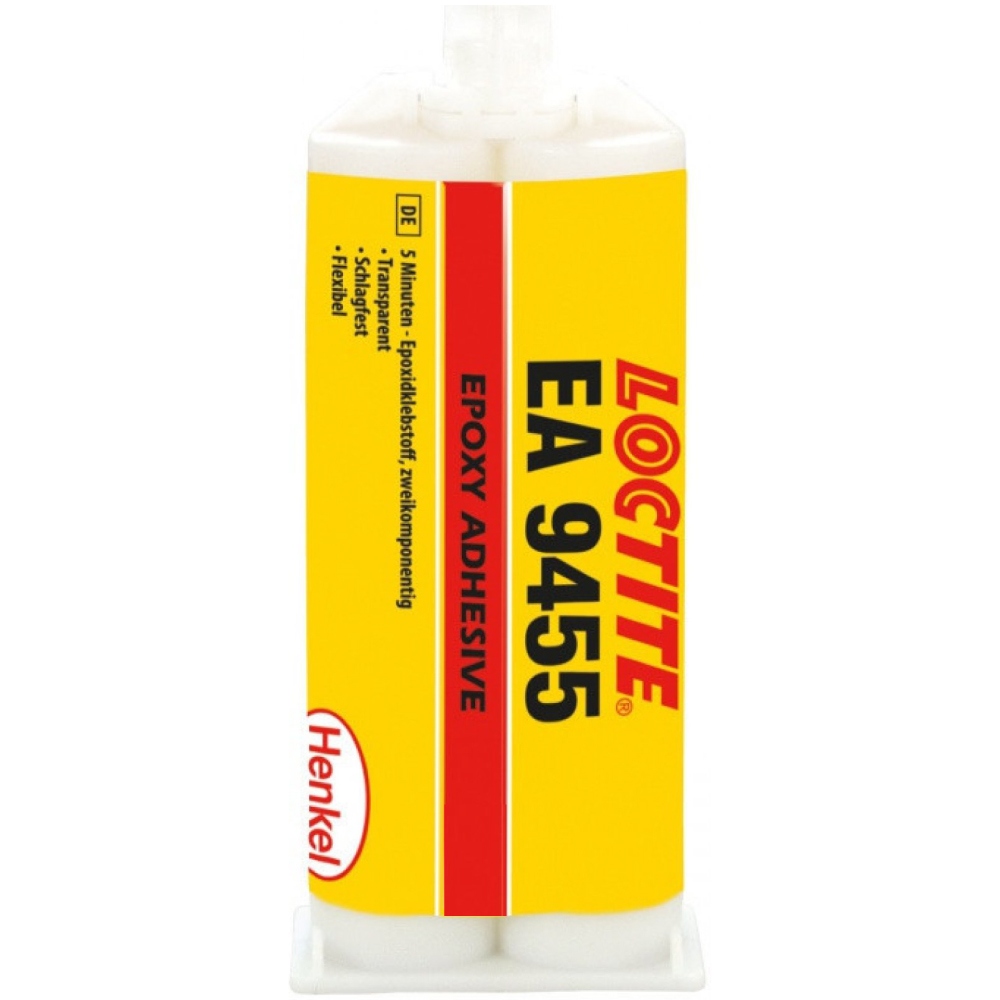

Loctite EA 9455 Two Part Epoxy Adhesive clear 50ml catridge
€ 27.97 27.97 incl. VAT (23.50 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Henkel
Country of origin: IT/0005
Customs tariff number: 35061000
Weight per piece: 80 g
No problem. Simply fill out the form and we will answer you as soon as possible.
LOCTITE® EA 9455 (also known as Hysol 9455) is a 2-part, clear, colourless, low viscosity, high strength, fast-curing, toughened, low viscosity, industrial grade liquid epoxy adhesive containing mercaptan.
- Pack size: 50ml double cartridge (Loctite no.2036183)
Application
- It is ideal for bonding and potting of optical components like sensors and lenses.
- It cures at room temperature after mixing. Key substrates include plastics, metals, glass, wood, ceramics and rubbers.
Characteristics
- Tough
- Excellent electrical insulator
- Low shrinkage properties
- Ultra clear adhesive bondline
- Good peel resistance
Technical Information
Chemical basis | Epoxy resin (Resin) / Mercaptan (Hardener) |
Color (Resin / Hardener / Mixture) | Clear colorless / Clear colorless / Ultra clear |
Mix ratio (volume / weight) | 1:1 / 100:105 |
Density (Resin @ 25 °C) | 1.09–1.15 g/cm³ |
Density (Hardener @ 25 °C) | 1.09–1.15 g/cm³ |
Viscosity (Resin @ 25 °C) | 1,200–2,750 mPa·s (cP) |
Viscosity (Hardener @ 25 °C) | 1,500–4,500 mPa·s (cP) |
Pot life (10 g, 25 °C) | 2–7 min |
Fixture time (0.1 N/mm² @ 22 °C) | approx. 15 min |
Service Temperature Range | -55 °C to +80 °C |
Shore Hardness (Cured 7 days @ 22 °C) | D 50 (or D 65 / D 80, depending on specific data source) |
Lap Shear Strength (Mild steel, grit blasted) | 14–16 N/mm² (Cured 7 days @ 22 °C) |
Recommended Accessories
- Mixing nozzle: Loctite 984569, Teroson 2900614 (short)
- Manual dispenser: Loctite 96001
Hazard Pictogram:
Signal Word:
- Warning (Part A) / Danger (Part B)
Hazard Statements:
- H315 Causes skin irritation. (Part A)
- H317 May cause an allergic skin reaction. (Part A & B)
- H319 Causes serious eye irritation. (Part A)
- H314 Causes severe skin burns and eye damage. (Part B)
- H332 Harmful if inhaled. (Part B)
- H411 Toxic to aquatic life with long-lasting effects. (Part A)
- H412 Harmful to aquatic life with long-lasting effects. (Part B)
Precautionary Statements:
Prevention:
- P273 Avoid release to the environment. (Part A & B)
- P280 Wear protective gloves. (Part A) / Wear protective gloves/protective clothing/eye protection/face protection. (Part B)
- P261 Avoid breathing vapor. (Part B)
Response:
- P302+P352 IF ON SKIN: Wash with plenty of water and soap. (Part A)
- P333+P313 If skin irritation or rash occurs: Get medical advice/attention. (Part A)
- P337+P313 If eye irritation persists: Get medical advice/attention. (Part A)
- P303+P361+P353 IF ON SKIN (or hair): Remove contaminated clothing immediately. Rinse skin with water [or shower]. (Part B)
- P305+P351+P338 IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing. (Part B)
- P310 Immediately call a POISON CENTER/doctor. (Part B)
Henkel AG & Co. KGaA, Henkelstr. 67, 40589 Düsseldorf, GERMANY, +49 211 7970, [email protected], www.henkel.com
Property | GTIN/EAN | MPN (Manufacturer Part Number) |
---|---|---|
- | 5010266367255 | 2036183 |
