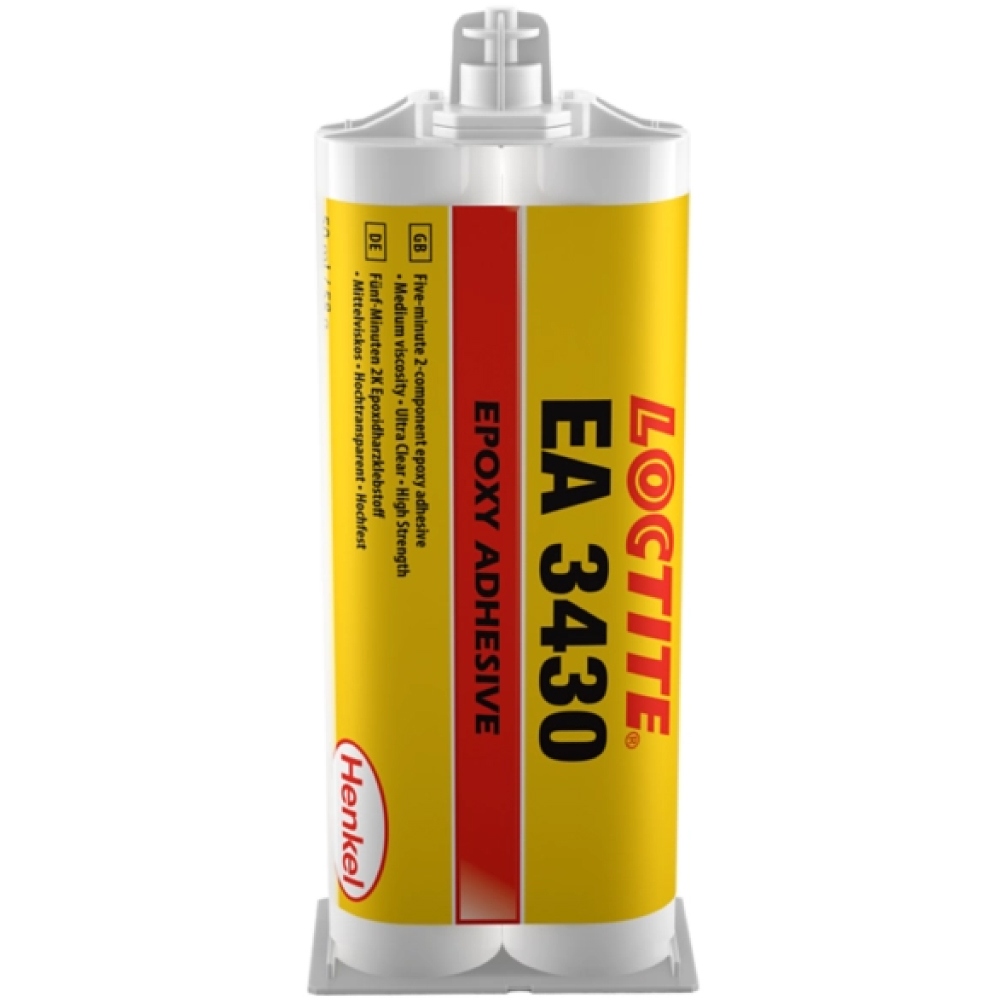

Loctite EA 3430 Two Part Epoxy Adhesive clear 50ml catridge

Loctite EA 3430 Two Part Epoxy Adhesive clear 50ml catridge

pics/Loctite/EA 3430/loctite-3430-two-component-epoxy-adhesive-clear-50ml-catridge.jpg

€ 32.73 32.73 incl. VAT (27.50 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Henkel

Country of origin: IT/0005

Customs tariff number: 35061000

Weight per piece: 95 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

four + three = ?

( Examples: two + three = 5, three - five = -2 )

LOCTITE® EA 3430 (known as Hysol® 3430 A&B) is a transparent, fast-curing two-component epoxy adhesive that reliably achieves high strength at room temperature. It provides an optically clear bond line and strong adhesion on a wide range of substrates, with good water resistance.

Pack size: 50 ml double catridge (Loctite no. 2035020)
Also available in: 24 ml double catridge

Application

Ideal for bonding rough or poorly fitting surfaces on materials such as metal, ceramics, thermosets, and wood.
Nearly invisible – perfect for glass, decorative panels, and displays

Characteristics

Ultra-clear bond line
Easy and fast to apply at room temperature
Water resistant

Technical Information

Chemical basis	Epoxy
Color (resin / hardener / mixture)	Ultra clear / Ultra clear / Ultra clear (Transparent)
Mix ratio (volume / weight)	1:1 / 100:100
Specific Gravity @ 25 °C (resin / hardener)	1.14–1.2 / 1.14–1.2 g/cm³
Viscosity @ 25 °C (resin / hardener)	18,000–28,000 / 18,000–28,000 mPa·s (cP)
Pot life (Gel Time @ 25 °C, 5 g/5 g)	5–10 min
Fixture time (0.1 N/mm²)	approx. 15 min (at 22 °C)
Glass transition temperature (Tg, ASTM E 1640)	58 °C
Shore hardness (Durometer D)	D 70
Lap Shear Strength on steel (grit blasted)	22 N/mm²

Recommended Accessories

Mixing nozzle: Loctite 984569, Teroson 2900614 (short)
Manual dispenser: Loctite 96001

Hazard pictogram:

Signal word: Warning (Part A) / Danger (Part B)
Hazard statements:

H302 Harmful if swallowed. (Part B)
H314 Causes severe skin burns and eye damage. (Part B)
H315 Causes skin irritation. (Part A)
H317 May cause allergic skin reactions.
H319 Causes serious eye irritation. (Part A)
H411 Toxic to aquatic life with long-lasting effects.

Precautionary statements:
For private consumers only:

P101 If medical advice is needed, have the product container or label at hand.
P102 Keep out of reach of children.
P501 Dispose of contents/container according to national regulations.

Prevention:

P273 Avoid release to the environment.
P280 Wear protective gloves (Part A) / Wear protective gloves/protective clothing/eye protection/face protection (Part B).

Response:

P302+P352 IF ON SKIN: Wash with plenty of water and soap. (Part A)
P303+P361+P353 IF ON SKIN (or hair): Remove contaminated clothing immediately. Wash skin with water [or shower]. (Part B)
P305+P351+P338 IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing. (Part B)
P333+P313 If skin irritation or rash occurs: Get medical advice/attention. (Part A)
P337+P313 If eye irritation persists: Get medical advice/attention. (Part A)
P310 Immediately call a POISON CENTER/doctor. (Part B)

Loctite EA3430, Loctite EA-3430

Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR, SA,

Information on product safety (Manufacturer, Contact)

Henkel AG & Co. KGaA, Henkelstr. 67, 40589 Düsseldorf, GERMANY, +49 211 7970, [email protected], www.henkel.com

loctite-3430-two-component-epoxy-adhesive-clear-datasheet.pdf (73.99 KB)
