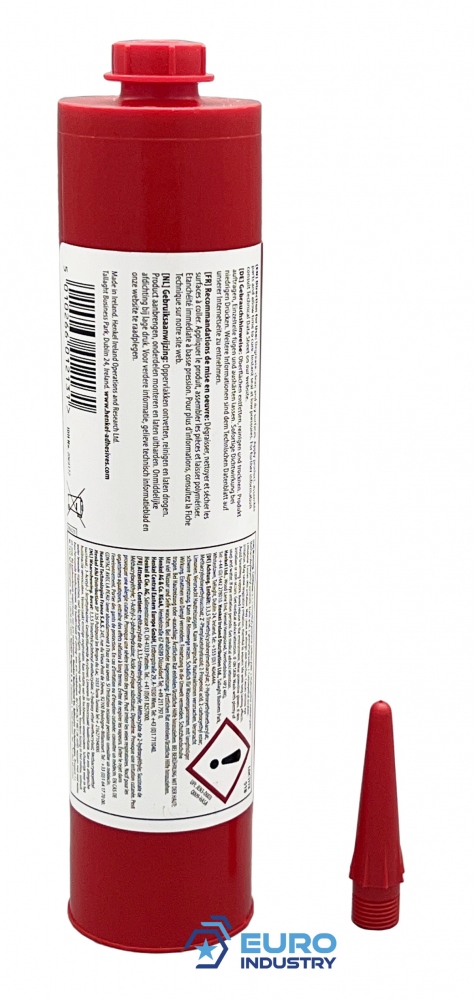

Loctite 518 Liquid Gasket Sealant medium strength red 300ml tube red

Loctite 518 is an anaerobic gasketing material designed for use on rigid iron, aluminum, and steel flanged mating surfaces. It cures when confined in the absence of air between close-fitting metal surfaces.

• Pack size: 300 ml cartridge (Loctite no. 2069177)
• Available as well in 25 ml syringe, 50 ml cartridge

Application

• It fills gaps up to 0.25mm and forms a flexible, chemical-resistant seal that will not tear or decay. Parts disassemble easily, even after extended service
• Typical applications include sealing close-fitting joints between rigid metal faces and flanges
• It is also used as a formed-in-place gasket on rigid flanged connections, e.g. transmissions and motor housings.

Characteristics

• Semi-flexible, medium-strength anaerobic flange gasket
• Easy to automate
• Reduces process costs – eliminates manual assembly of conventional gaskets
• NSF P1 Reg. No. 123758
• For active and inactive rigid metal flanges
• Cures through minor surface contamination
• Adapts to flange surface irregularities and gaps up to 0.25 mm
• Gel-type consistency
• Seals instantly against low pressure
• Reduces inventory costs – no need for large inventory of cut gaskets
• Resists high pressure when fully cured
• No compression set or misaligned gaskets
• Color: red
• Content: 300 ml cartridge
• Available as well in 25 ml and 50 ml
