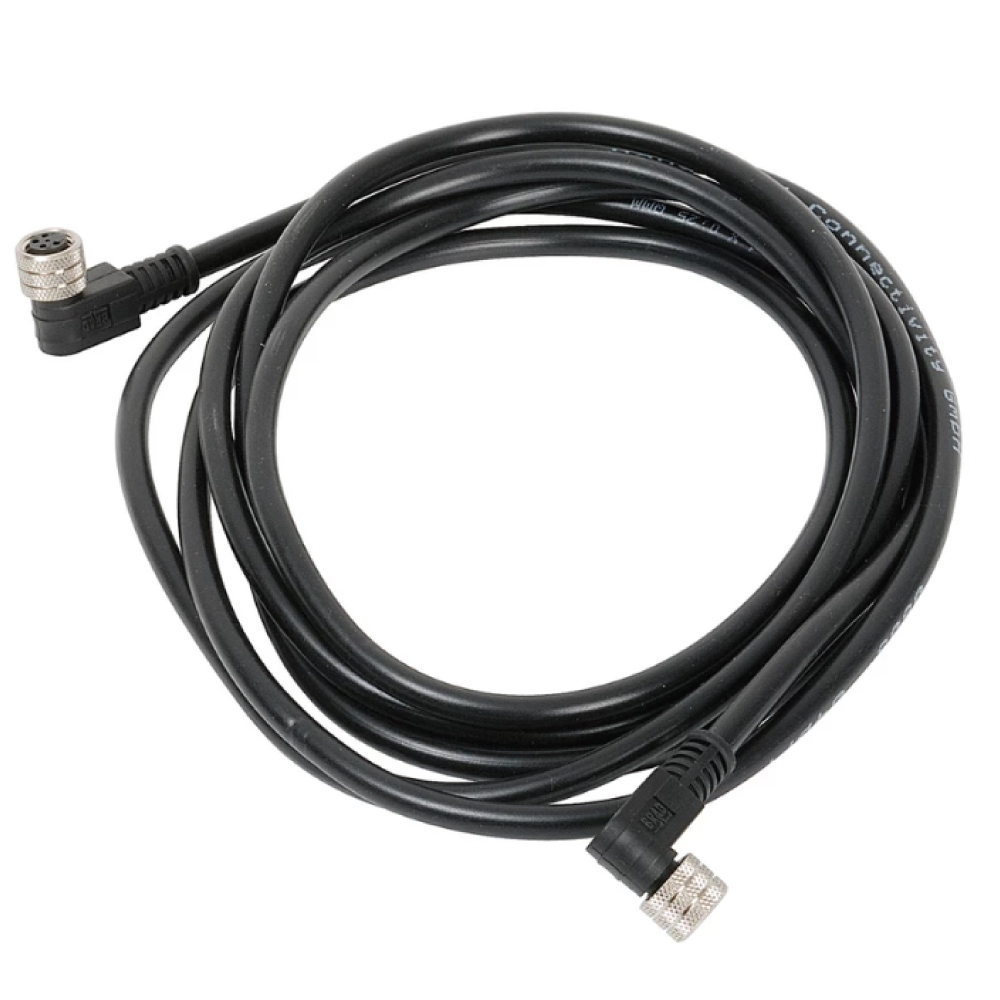

Perma 106941 PRO MP-6 Connecting cable 2m
Perma 106941 PRO MP-6 Connecting cable 2m
€ 18.98 18.98 incl. VAT (15.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Perma
Country of origin: DE/0004
Customs tariff number: 85444290
Weight per piece: 76 g
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
Connecting cable PRO MP-6 2m | N° 106941
- Outside material: Polyurethane
- Isolation material: Polypropylene
- Conduct material: Copper-Conducter
- Color: black
Dimensions
- Outer diameter: 4,4 mm
- Inner diameter: 3,0 mm
- Wall thickness: 0,7 mm
Technical data
- Cable type: Polyurethane
- Number of poles: 4
- Conducter cross-section: 4 x 0,25 mm²
- Wire color: Brown, white, blue, black
- Connector: M8 IEC61076-2-104
- Overvoltage category: II
- Cable weight: 25 kg/km
- Insolation resistance: >100 GΩ *km ( 20 °C)
- Conducter resistance: max. 78 Ω/km ( 20 °C)
- Minimum bending radius, static installation: 22 mm
- Minimum bending radius, flexible installation: 44 mm
- Operating temperature range, static installation: -40 °C - +80 °C
- Operating temerature range, flexible installation: -25 °C - +80 °C
- Protection class: IP 68
- Flammability class UL94: HB
- Absence of PWIS: confirmed
- Absence of silicone: confirmed
- Absence of halogen: confirmed
- Drag chain suitability: confirmed
- RoHS Konform: confirmed
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 4061201055806 | 106941 |
