Perma 101494 Tube ECOSY up to +100 °C, Ø 6/4mm
Perma 101494 Tube ECOSY up to +100 °C, Ø 6/4mm
from € 24.93 24.93 incl. VAT (20.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Perma
Country of origin: DE/0004
Customs tariff number: 39173100
Weight per piece: 16 g
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.

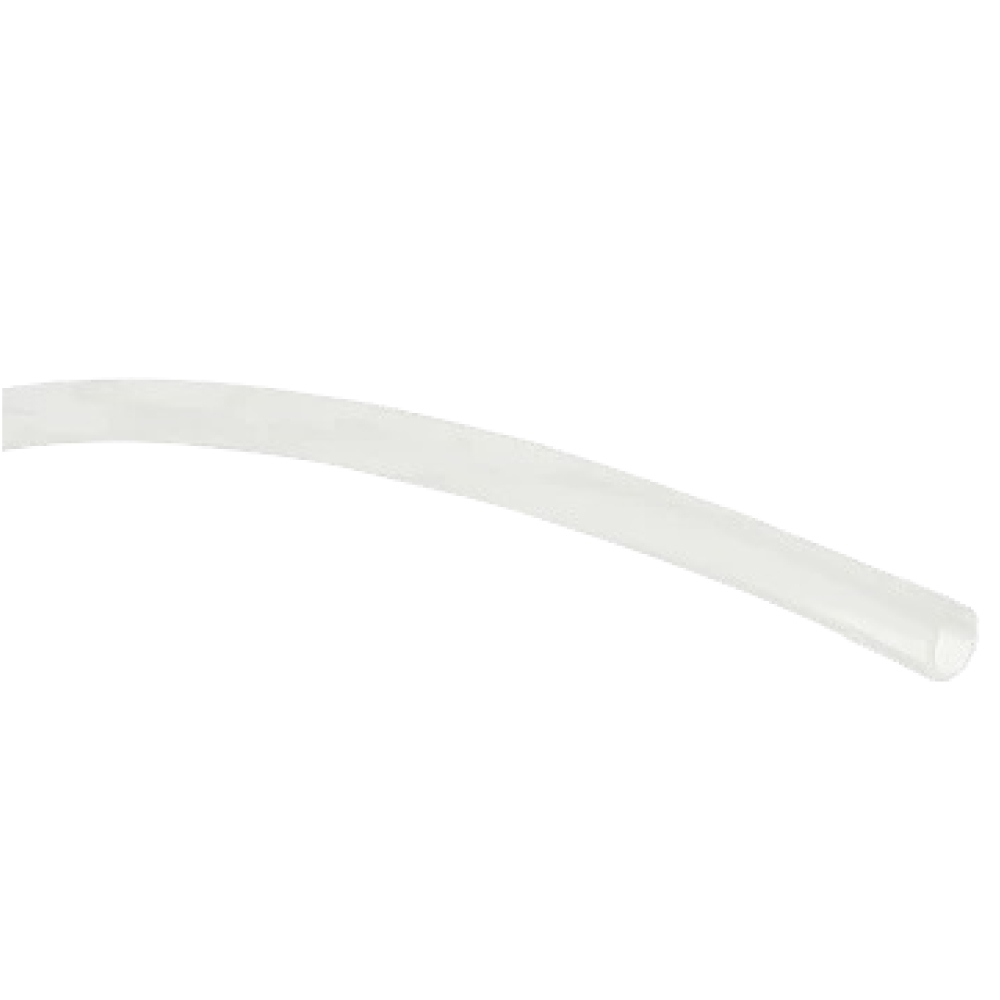

Tube up to +100 °C oØ 6 mm x iØ 4 mm | N° 101494
- Material: Polyamide 12W
- Color: translucent
- For Perma Ecosy
Dimensions
- Outer diameter: 6 mm
- Inner diameter: 4 mm
- Wall thickness: 1 mm
- Length: per 5 meters available (For custom length, please contact us here)
Chemical resistance: Resistant to most oils, greases, fuels, organic solvents, diluted acids, alkaline solutions and salts
Technical data
- Max. operating pressure at +20 °C: 390 psi
- Bursting pressure at +20 °C: 1160 psi
- Minimum bending radius at +20 °C: 35 mm
- Operating temperature range: -35 °C bis +100 °C
- Absence of silicone: Confirmed
- Absence of halogen: Confirmed
- Drag chain suitability: Min. bending radius of 10x tube-Ø
5 m, 10 m, 15 m, 20 m, 25 m
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| 5 m | - | 101494-5 |
| 10 m | - | 101494-10 |
| 15 m | - | 101494-15 |
| 20 m | - | 101494-20 |
| 25 m | - | 101494-25 |
