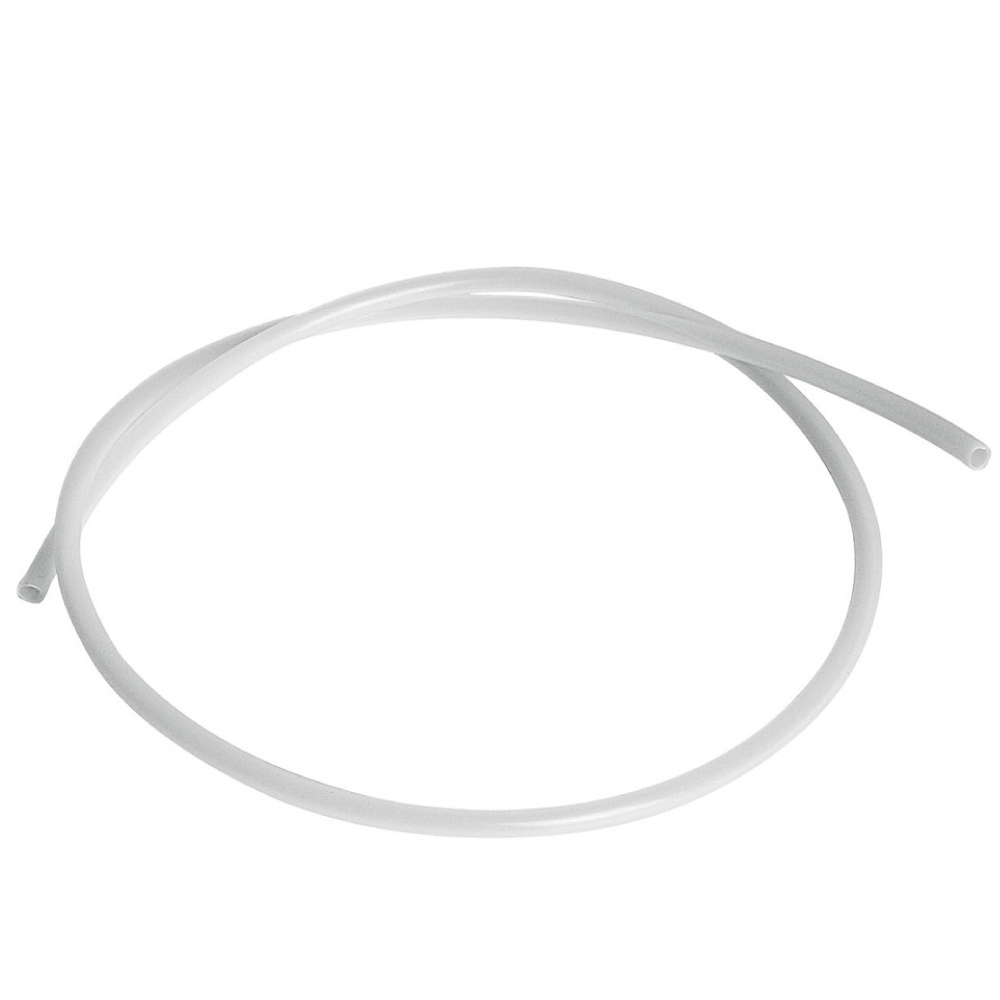

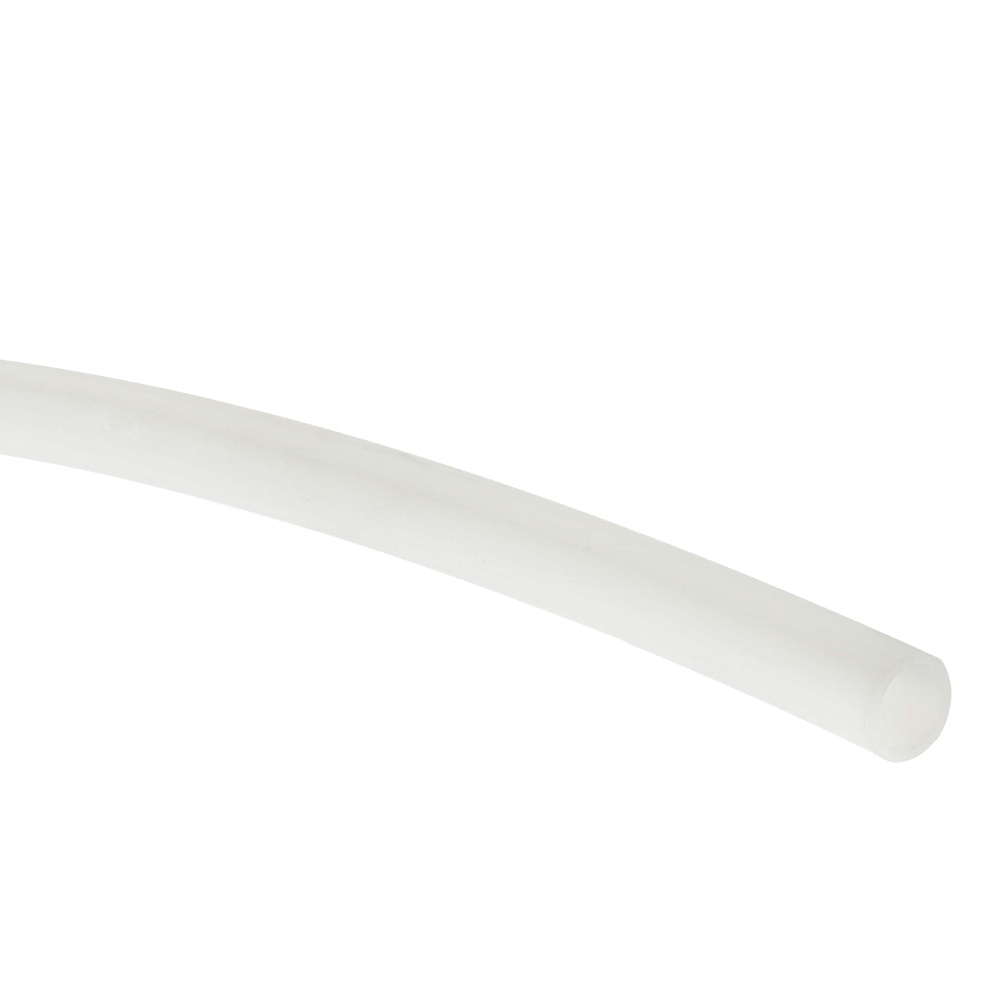

Perma 101394 PTFE tube up to +260 °C oØ 8 mm x iØ 6 mm
Perma 101394 PTFE tube up to +260 °C oØ 8 mm x iØ 6 mm
€ 14.22 14.22 incl. VAT (11.95 excl. VAT), per piece *
Availability: shipping in 3-5 working days
Packaging unit: 1 piece
Manufacturer: Perma
Country of origin: DE/0004
Customs tariff number: 74122000
Weight per piece: 50 g
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
Tube up to +260 °C oØ 8 mm x iØ 6 mm PTFE | N° 101394
- Material: PTFE
- Color: translucent
Dimensions
- Outer diameter: 8 mm
- Inner diameter: 6 mm
- Wall thickness: 1 mm
- Length: per meter available
Mechanical properties
- Good temperature resistance, noncombustible
Chemical resistance
- Resistant to all liquid, gaseous and corrosive media, including all acids, alkaline solutions, solvents, oils and
fuels. - PTFE tubes are suitable for food an beverages as they are unflavored an not toxic.
Technical specifications
- Max. operating pressure at +20 °C: 9 bar / 130 psi
- Minimum bending radius at +20 °C: 50 mm
- Operating temperature range: -70 °C to +260 °C
- Flammability class UL94: V-0 incombustible
- Absence of PWIS: Confirmed
- Absence of silicone: Confirmed
- FDA: Confirmed
- Drag chain suitability: Min. bending radius of 10x tube-Ø
1 M, 2 M, 3 M, 4 M, 5 M
No files available for download
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| 1 M | 4061201007812 | 968930038 |
| 2 M | - | 101394-2M |
| 3 M | - | 101394-3M |
| 4 M | - | 101394-4M |
| 5 M | - | 101394-5M |
