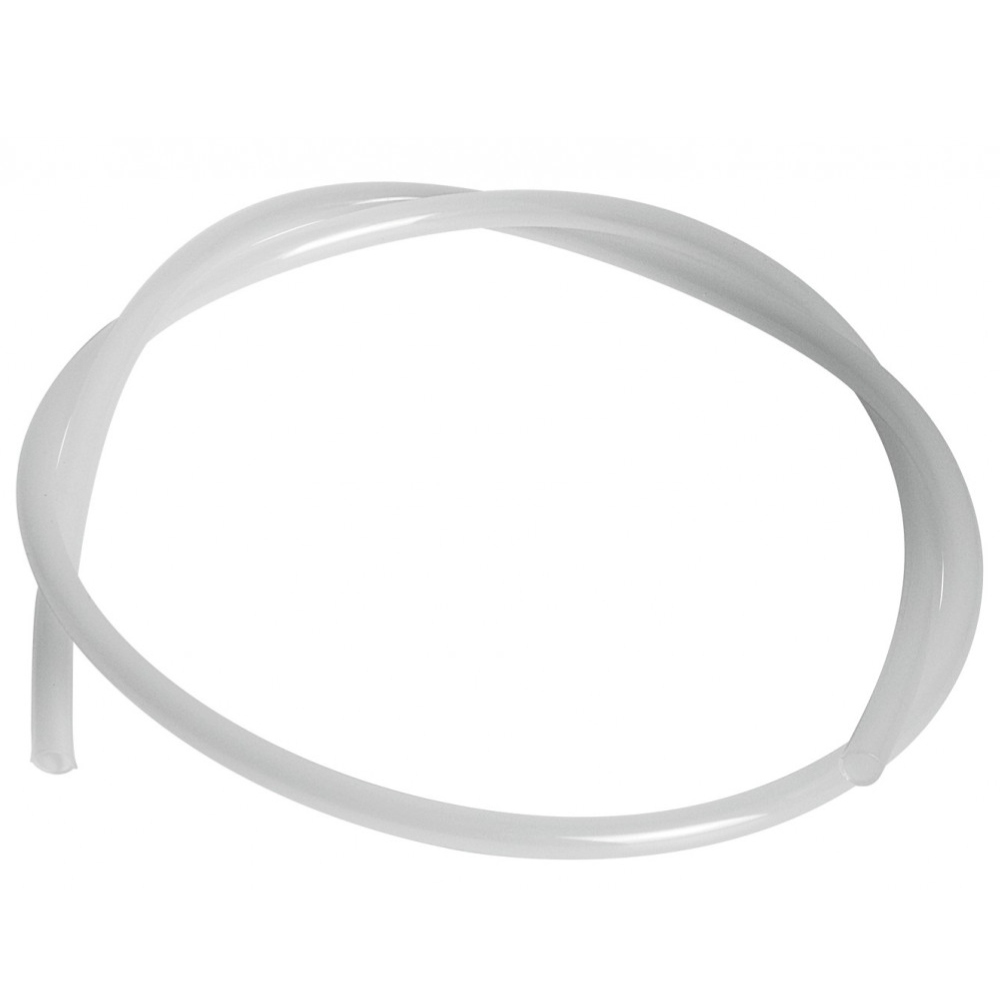

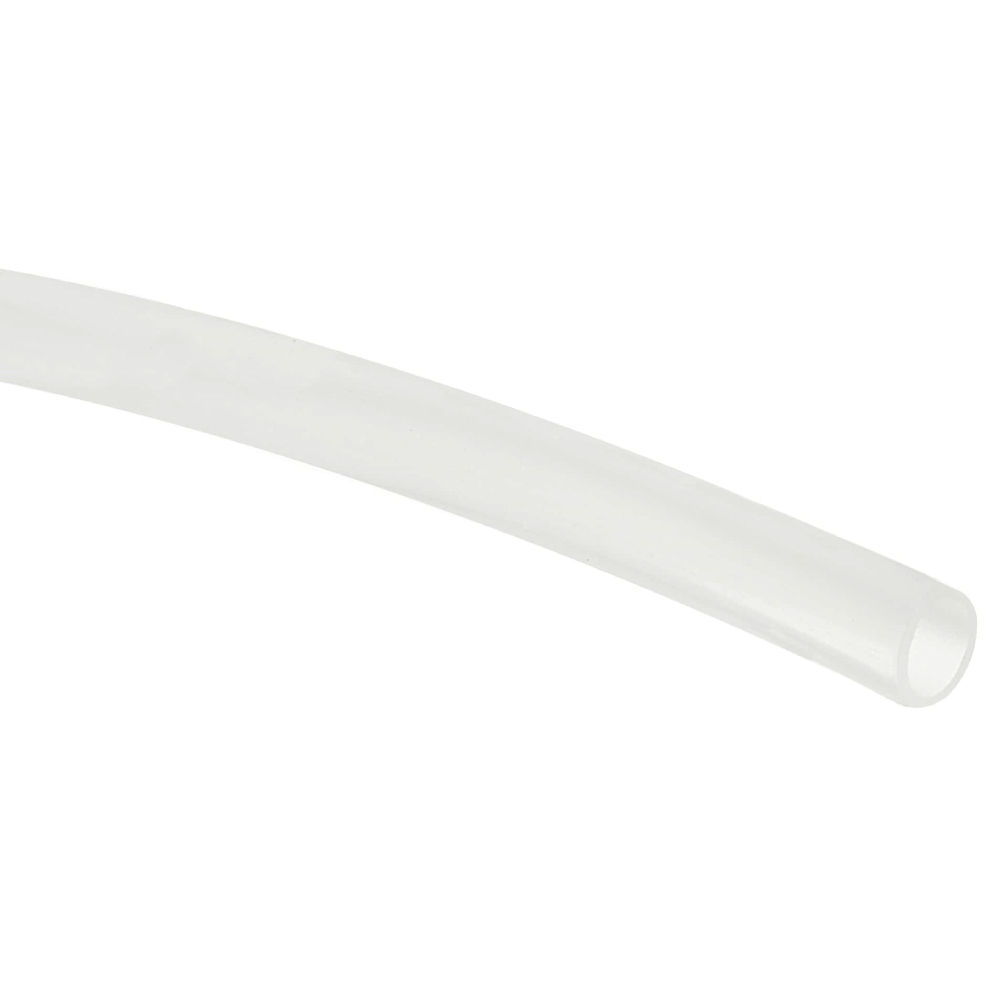

Perma 101393 PA - Tube up to +80 °C oØ 8 mm x iØ 6 mm PA
Perma 101393 PA - Tube up to +80 °C oØ 8 mm x iØ 6 mm PA
from € 5.71 5.71 incl. VAT (4.80 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Perma
Country of origin: DE/0004
Customs tariff number: 39173200
Weight per piece: 100 g
Please give the recipient email address, as well as your name and email address.
The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.
No problem. Simply fill out the form and we will answer you as soon as possible.
Tube up to +80 °C oØ 8 mm x iØ 6 mm (PA) | N° 101393
- Material: Polyamide 12
- Color: translucent
Dimensions
- Outer diameter: 8 mm
- Inner diameter: 6 mm
- Wall thickness: 1 mm
- Length: per meter available (For custom length, please contact us here)
Mechanical properties
- High temperature, pressure, chemical an stress cracking resistance, high impact strength, UV-resistant, high wear resistance, resistant to water, low ressure loss, calibrated
Chemical resistance
- Resistant to most oils, greases, fuels, organic solvents, diluted acids, alkaline solutions and salts.
Technical specifications
- Max. operating pressure at +20 °C: 19 bar / 27 psi
- Bursting pressure at +20 °C: 57 bar / 825 psi
- Minimum bending radius at +20 °C: 40 mm
- Operating temperature range: -40 °C to +80 °C
- Absence of silicone: Confirmed
- Absence of halogen: Confirmed
- Drag chain suitability: Min. bending radius of 10x tube-Ø
1 M, 2 M, 3 M, 4 M, 5 M
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| 1 M | 4061201007805 | 101393-1M |
| 2 M | - | 101393-2M |
| 3 M | - | 101393-3M |
| 4 M | - | 101393-4M |
| 5 M | - | 101393-5M |
