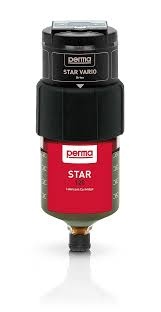

Perma 117222 STAR VARIO Gen 2.0 Precise automated lubricator

Perma STAR VARIO Gen. 2 - Enables automated and highly precise lubrication up to a distance of 5 m | N° 117222

Perma STAR VARIO operates fully automatically, independent of temperature and pressure with a very precise discharge. The system consists of an electromechanical drive, an LC with 60, 120 or 250 cm³ of lubricant, and a battery pack. Lubrication time can be automated up to 12 months. Pressure build-up to 6 bar allows remote mounting up to 5 m.

Characteristics

• Simple and self-explanatory operation
• Setting: 1, 2, 3 ... 12 months and LC size
• Precise settings according to requirements prevent lubrication starvation and over-lubrication
• LED (red / green) visible all round signals functioning and any errors
• Pressure build-up to 6 bar allows remote mounting up to 5 m
• Manual additional discharge via button on display (purge)
• Lubrication point can be purged to clear blockages

Field of application

• single-point lubrication of roller and sliding bearings, sliding guides
• open gears, gear racks, spindles, shaft seals, and chains

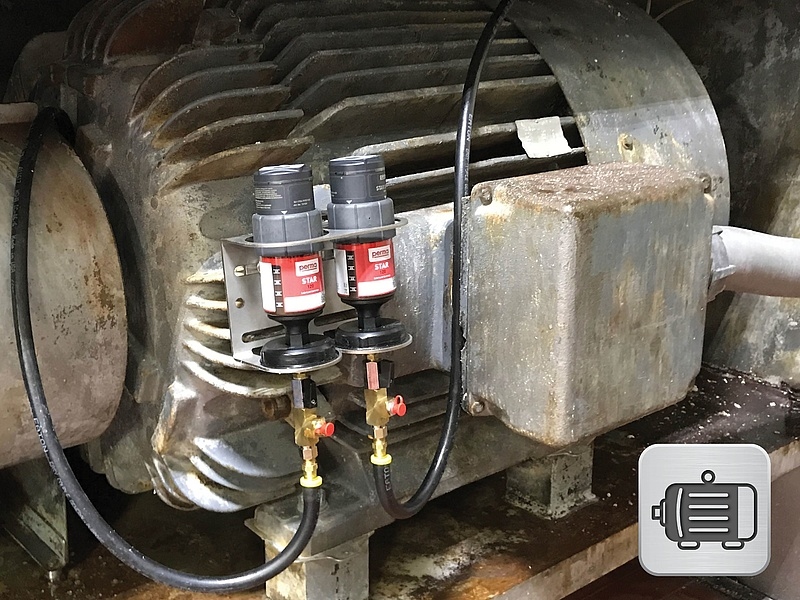

• electric motors with specified lubricant quantities

Technical specifications

• Power supply: Battery pack STAR VARIO 4.5 V
• Housing: Transparent plastic
• Discharge period: 1, 2, 3, ..., 12 months
• Lubricant volume: 60 cm³, 120 cm³, 250 cm³
• Operating temperature: -20 °C to +60 °C
• Pressure build-up: 6 bar
• Protection class: IP 65
• Lubricants: Grease up to NLGI 2 / oil
• Max. tube lengths: 5.00 m
• Perma Art. N° 117222 (replaces 107529)
• Batteries not included
• For detailed information view our datasheet here
