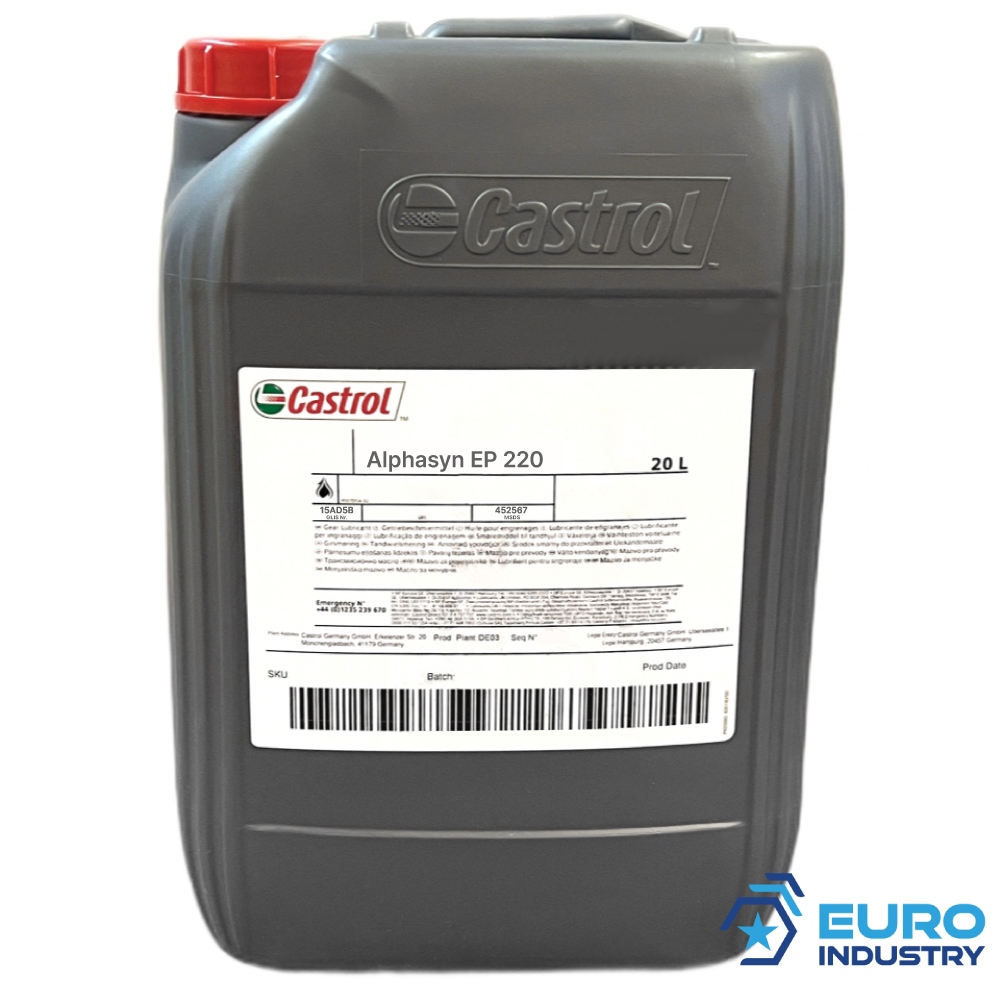

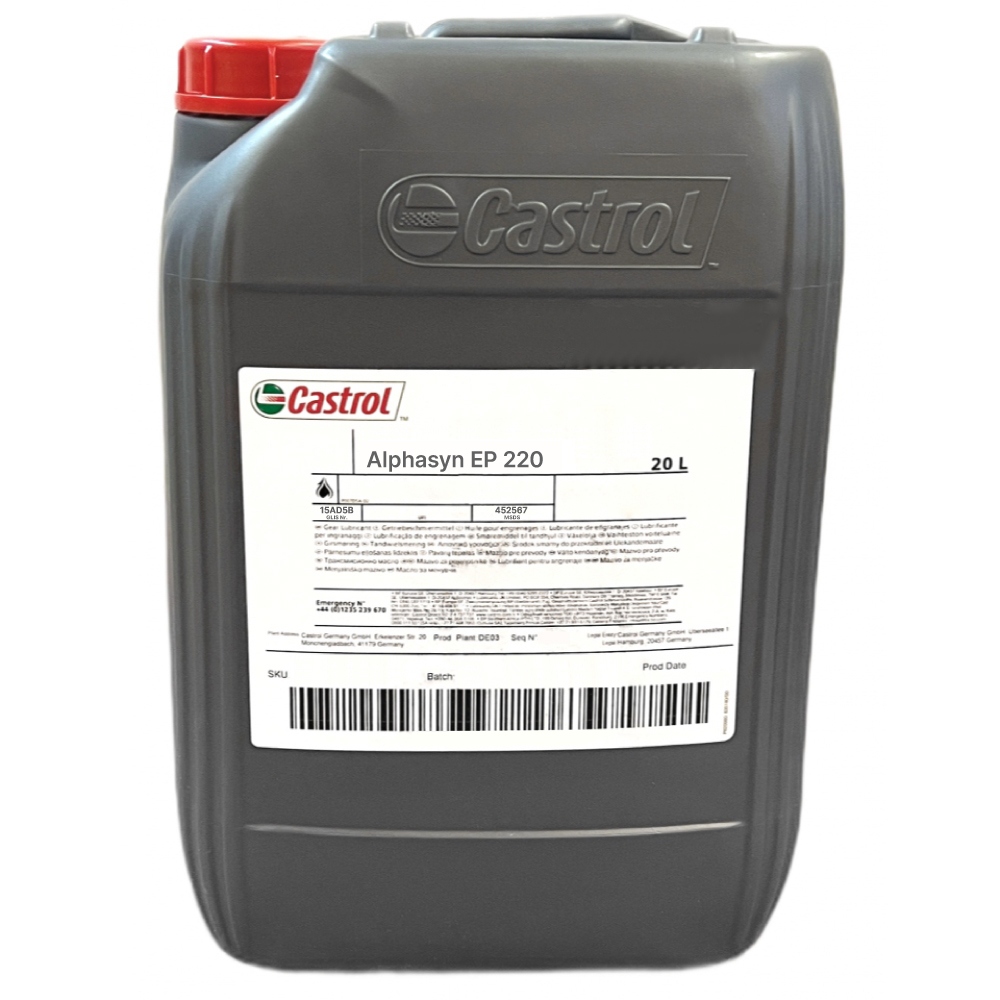

Castrol Alphasyn EP 220 Synthetic gear oil CLP 20L canister

Castrol Alphasyn EP 220 Synthetic gear oil CLP 20L canister

€ 267.69 267.69 incl. VAT (224.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Castrol

Country of origin: FR/0001

Customs tariff number: 34031980

Weight per piece: 18.1 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

two - five = ?

( Examples: two + three = 5, three - five = -2 )

Castrol Alphasyn EP 220 gear oils (CLP, ISO VG 220) are high quality synthetic lubricants based on polyalphaolefin (PAO) fluids and sulpur / phosphorus Extreme Pressure (EP) additive technology providing outstanding thermal stability and high load carrying capacity.

Application

Heavily loaded gearboxes subjected to extremes of temperature
Draw works transmissions on Mobile Offshore Drilling Units and Onshore sites
Top Drives on Mobile Offshore Drilling Units and Onshore sites

Specifications / Approvals

DIN 51517 Part 3 - CLP gear oils
AGMA 9005 - D94
US Steel 224
David Brown Type E
Hansen Transmissions
Flender
Lohmann & Stofferfoht

Features & Benefits

Full EP performance gives maximum protection of gears against wear and shock loading, including protection against micropitting.
Good thermal and oxidative stability provides reliable operation and extended operating life when compared to mineral oil based products.
Inherently high Viscosity Index makes the product suitable for operations operating over a wide temperature range.
Rapid air release and good performance in the Flender Foam Test prevents foaming and bearing damage.
PAO based lubricant provides good compatibilty with seals, paints and mineral oil based lubricants.
Excellent thermal stability and oxidation resistance.

Technical specifications

ISO Viscosity Grade: 220
Viscosity, Kinematic 40°C ASTM D445 mm²/s: 220
Viscosity, Kinematic 100°C ASTM D445 mm²/s: 25
Viscosity Index ASTM D2270: 140
Pour Point ASTM D97 °C: -42
Open Flash Point ASTM D92 °C: 220
Foaming Tendency / Stability mls / mls: 0/0
Rust Prevention, Sea Water ASTM D892: Pass
FZG Gear Test (A/16.6/90) DIN 51354 FLS: >12
FZG Gear Test (A/8.3/90) DIN 51354 FLS: >12
Size: 20l
Packaging type: canister
Also available in: 208l barrel
GLISS number: 15AD5B
MSDS code: 452567

Additional Information

Please note that the Castrol Alphasyn EP range of gear lubricants are are miscible with mineral but not compatible with PAG or any other type of synthetic gear lubricants.

Castrol Alphasyn EP220, Castrol Alphasyn EP-220, Castrol Alphasyn EP/220

castrol-alphasyn-ep-synthetic-gear-oil-tds-datasheet-en.pdf (79.77 KB)
