4-Pole Replacement Set for Big-Bag Handling System – Fits 1.70 m Bags

4-Pole Set for Indus Neva Decks 120 × 120 cm

• Ready to use – compatible with both the standard black deck and the grey food-grade deck
• For secure big bag transport, stackable storage, efficient filling, and clean discharge of bulk bag materials

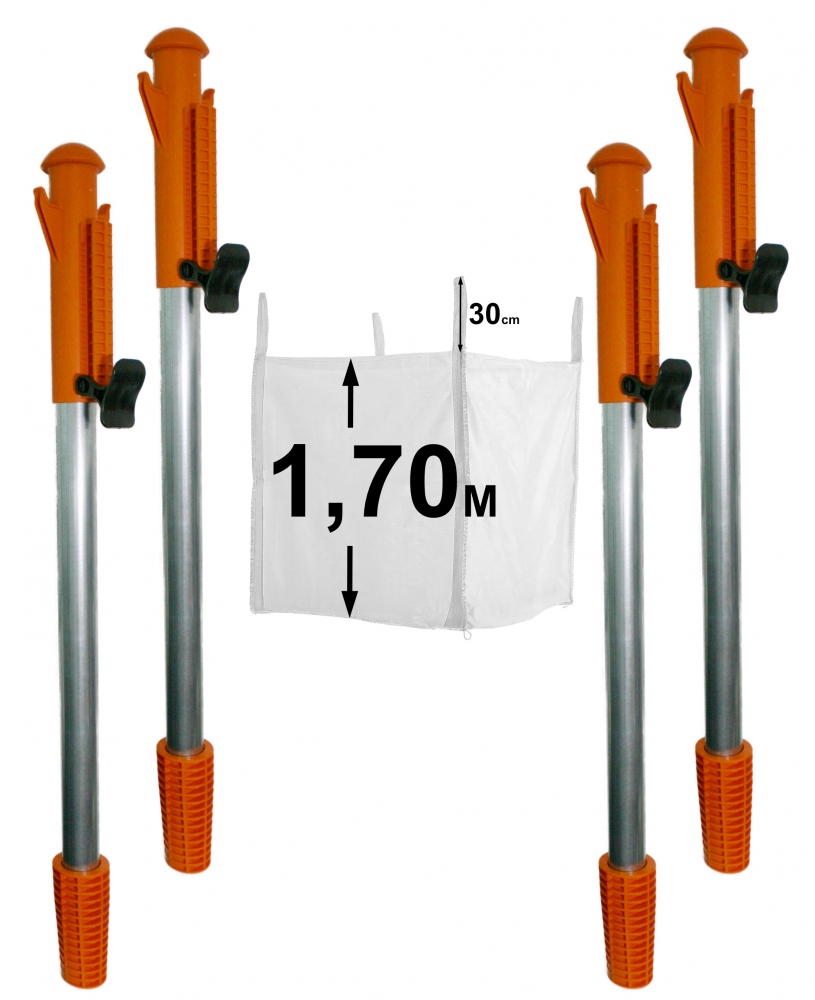

• Replacement pole set for the Indus Neva unique handling system for 1.70 m Big Bags

Select the head type and pole material to match your bag dimensions and handling process.

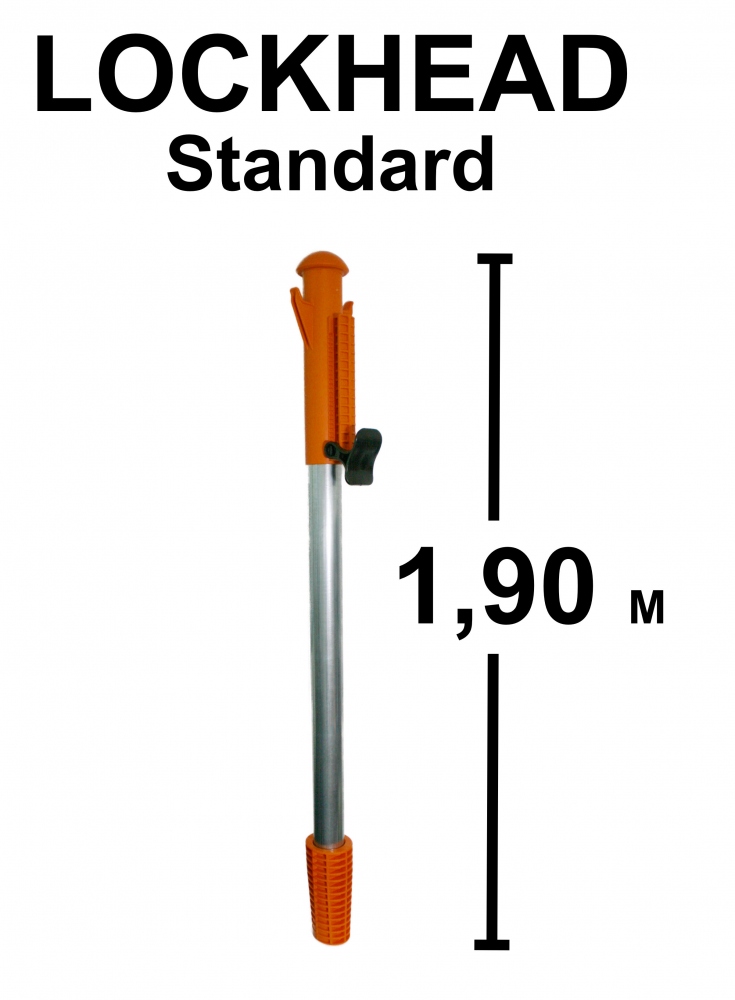

Head option	Lockhead (standard)	Springhead	Rolling Springhead
Illustration
Recommended use	Transport · storage · discharge Place filled Big Bags on the Neva deck. High holding force – also for long loops > 30 cm.	Fill empty bags inside the Neva frame system AND empty them via the Neva deck afterwards	Narrow bags Short loops < 30 cm
Feature	—	Automatic spring lift	Automatic spring lift +roller guide
Ideal bag bottoms	95 × 95 – 105 × 105 cm	95 × 95 – 105 × 105 cm	85 × 85 – 90 × 90 cm
Pole material *	Galvanized steel Ø 60 × 1.5 mm – standard for in-house logistics & industry Stainless steel 304 Ø 60 × 1.5 mm – for work processes with the highest hygienic standards in food & pharma industry. Best used with the grey food-grade Neva deck (Art. 23214107)

*Both materials available for all three head types – 4 poles per set, pre-assembled.

Technical data

*System height = pole length + 30 mm head/foot + 110 mm deck
**Weights ≈ galvanised steel / stainless steel.

• Material selection: as explained above – steel (standard) or stainless steel 304 (food grade); head and base made of impact-resistant plastic.
• Unit load unchanged: 1 500 kg (standard deck); stackable to 7 m / 6 t.

Not sure which head and pole length fits? → Fill in the form for a customised Neva solution!
