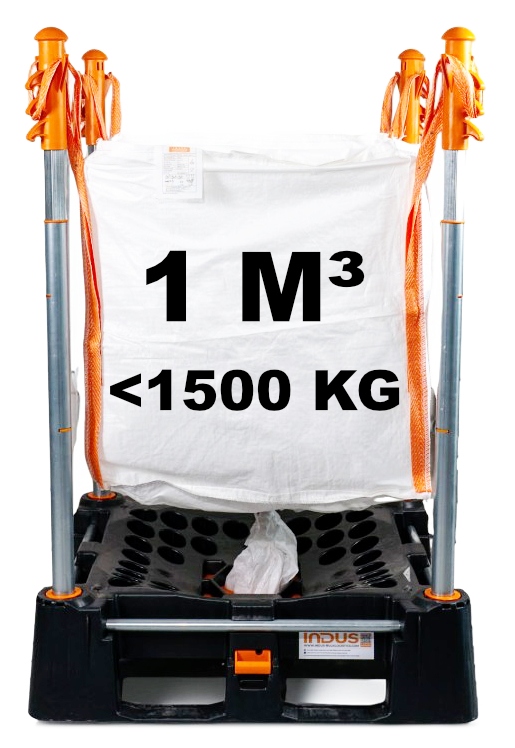

Indus Flow Unique handling and storage system for 1m3 Big Bags
€ 828.18 828.18 incl. VAT (695.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Indus Bulk Logistics
Country of origin: NL/0003
Customs tariff number: 73269098
Weight per piece: 50.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.

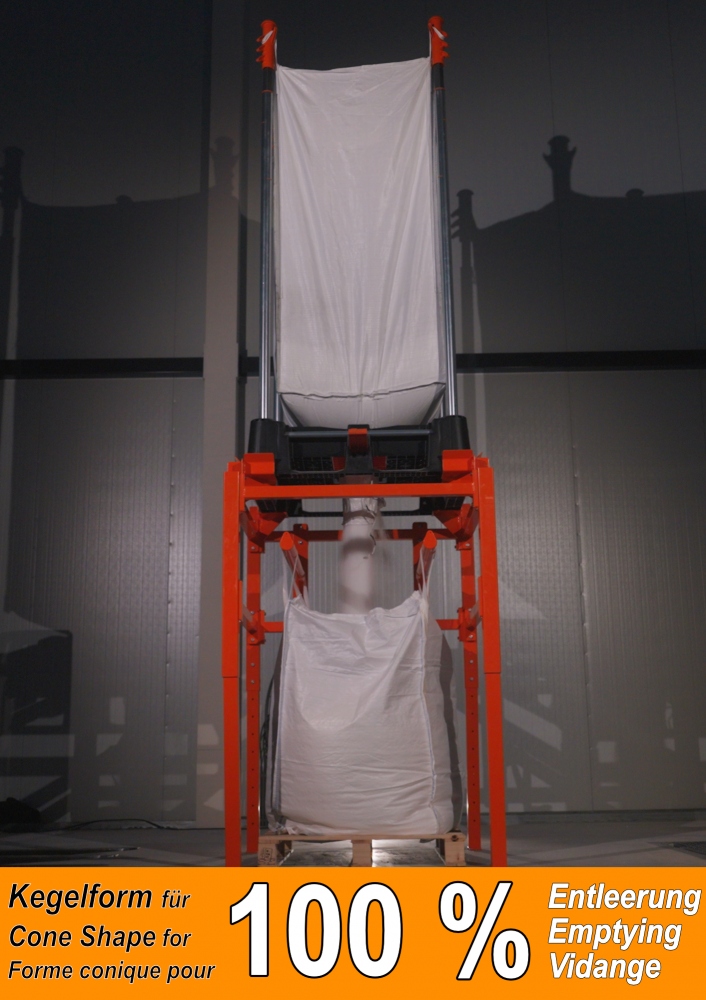

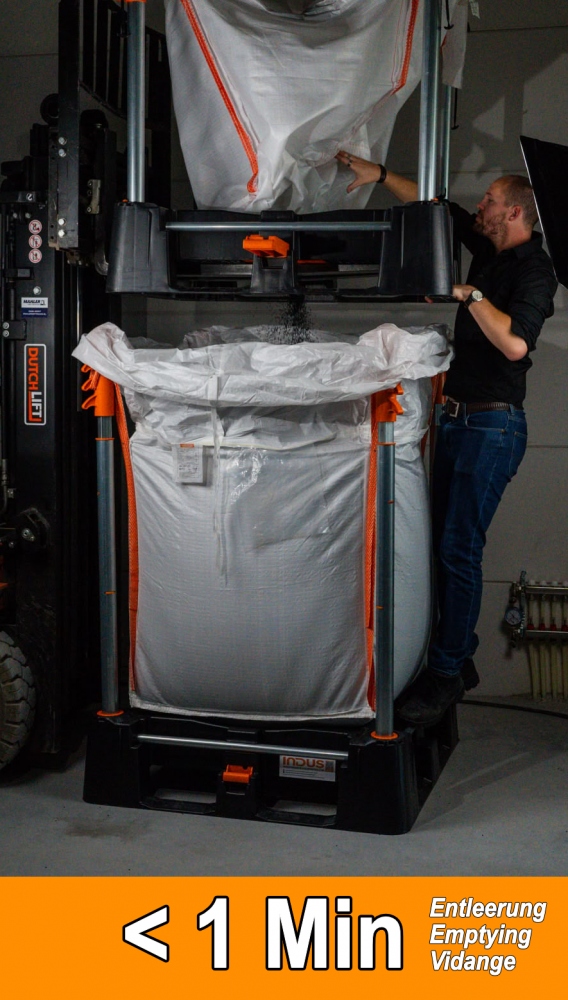

Indus Flow is the ideal solution for companies looking to simplify and automate the handling of 1m³ Big Bags, with a focus on Big Bag emptying. This innovative system provides a comprehensive all-in-one solution: from filling to transportation and finally to complete and safe emptying, everything can be done within a single system.
Applications
- Agricultural industry: Ideal for seeds, grains, fertilizers, and similar bulk materials.
- Food industry: Efficient handling of coffee beans, flour, sugar, spices, and other food products, also available in food-grade stainless steel options.
- Chemical and pharmaceutical industry: Perfect for powders, granules, and pills.
- Production and logistics: For companies that need to efficiently and safely fill, transport, empty, and store Big Bags.
Benefits
- All-in-one solution: Filling, transporting, and emptying in one system – efficient and reliable.
- Improved design: Integrated spring head with 200 kg spring force – four times stronger than previous models – making automatic filling and emptying significantly easier.
- Optimal storage: Allows stacking of Big Bags in up to two levels – for higher stacking up to 7 meters, the Indus Neva system is recommended.
- Flexibility: Suitable for a variety of materials such as seeds, coffee beans, powders, granules, pills, and more.
- Safety and stability: Robust galvanized steel construction for maximum load capacity and durability.
Technical Details
| Pole Material | Galvanized Steel (60 x 2.5 mm) |
| Pole Height | 1180 mm |
| Spring Force | 200 kg (4x stronger than the Neva spring head) |
| Total Height (normal / compressed) | 1560 mm / 1375 mm |
| Weight (Total / Pallet / Pole) | 60 kg / 30 kg / 7.5 kg |
| Maximum Load Capacity per System | 1500 kg |
| Stacking Capacity | Maximum 2 levels |
| Base Dimensions (Pallet) | 1200 x 1200 mm |
| Ideal Big Bag Bottom Dimensions | 950x950 mm - 1000x1000 mm |
| Ideal Big Bag Height / Loop Length | 1050 mm / 400 mm 1100 mm / 350 mm 1150 mm / 300 mm 1200 mm / 250 mm 1250 mm / 200 mm |
Why Indus Flow?
The Indus Flow system is an evolution of the proven Big Bag handling system, combining efficient filling with optimized emptying. The new, integrated spring head with 200 kg of force significantly simplifies Big Bag handling, saving time and costs. It is suitable for a wide range of materials, from seeds and coffee beans to granules and pills, while providing maximum safety and stability.
The system can be stacked in up to two levels, for higher storage heights up to 7 meters, the Indus Neva system is recommended.
Experience the next generation of Big Bag handling – efficient, safe, and automated.
INDUS INTEGRATED BULK LOGISTICS B.V., Botter 8, 2411 NM Bodegraven, NETHERLANDS, +31 172 72 71 69, [email protected], www.indus-bulklogistics.com
