Indus Neva Unique handling and storage system for 1m3 Big Bags
from € 459.28 459.28 incl. VAT (385.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Indus Bulk Logistics
Country of origin: NL/0003
Customs tariff number: 73269098
Weight per piece: 50.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.

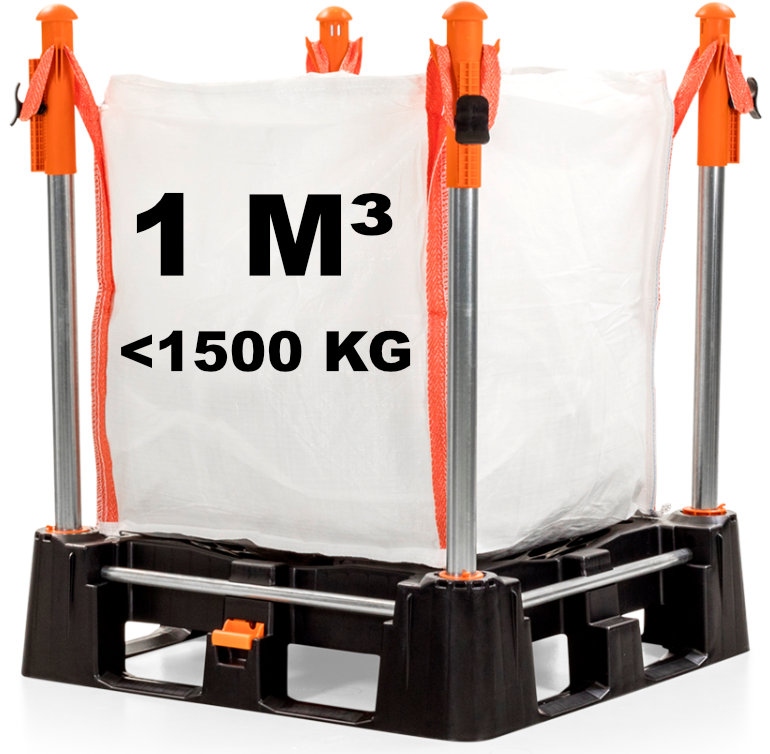

Neva All-in-One solution to store, transport, load and discharge your bulk material from big bags / FIBC
Ideal for 1m³ big bags (1 x 1 x 1m) with four corner loop size 30 cm → Complete the form for customized Neva Big Bag System
Indus Neva is a unique, versatile frame that frees up warehouse space, simplifies filling and emptying of Big Bags / FIBCs, streamlines material flow and boosts both food safety and workplace safety.
Smart alternative to racks, octabins or mini-silos in:- Plastics, food, chemicals, seed & agri-products
Key benefits
- Save up to 70 % floor space – stack Big Bags to 7 m / 6 t (certified by IBE-BVI, Sebert).
- One complete solution – stable filling, transport and discharge in a single product.
- Lower accident risk – frame stays rigid in transit and when stacked, unlike wooden pallets.
- Safety for staff, product and process – Big Bag remains upright at every step.
How it works
- Set a filled or empty Big Bag onto the Neva deck with a forklift, or hang an empty bag for filling.
- Store the units stacked – up to 7 m high / 6 t total.
- Move to production, discharge via the deck outlet or lift the bag out with the forklift.
Select the right head option
Each head type is pre-mounted on the pole and fits seamlessly onto the Neva deck. Choose the version that matches your bag dimensions and workflow:
Lockhead (Standard)
Mainly suited for customers who want to place already filled big bags in the system and use the system for further transport, handling, stacked storage, and discharging. This type of head is also advised for handling of big bags with long lifting loops.
Springhead
Ideal when you fill empty bags inside the frame and discharge through the deck later. The built-in spring lifts the loops automatically – less manual effort.
Rolling springhead
For narrow bags and short loops: Each pole has an internal roller hook that guides the lifting straps smoothly. While an empty bag is being filled and lowered onto the deck, the hooks keep the straps tensioned.
Quick selector
| Head type | Typical use | Ideal big bag bottoms (loop length) |
|---|---|---|
| Lock head | Transport · Storage · Discharge (insert filled bags) · loops > 30 cm | 95 × 95 – 105 × 105 cm (≥ 30 cm) |
| Spring head | Fill empty bags in frame AND discharge via deck | 95 × 95 – 105 × 105 cm (≈ 30 cm) |
| Rolling spring | Narrow bags / short loops < 30 cm | 85 × 85 – 90 × 90 cm (< 30 cm) |
- All heads pre-mounted on galvanised steel tube 60 × 1.5 mm.
- Head change = swap the complete pole, no tools required.

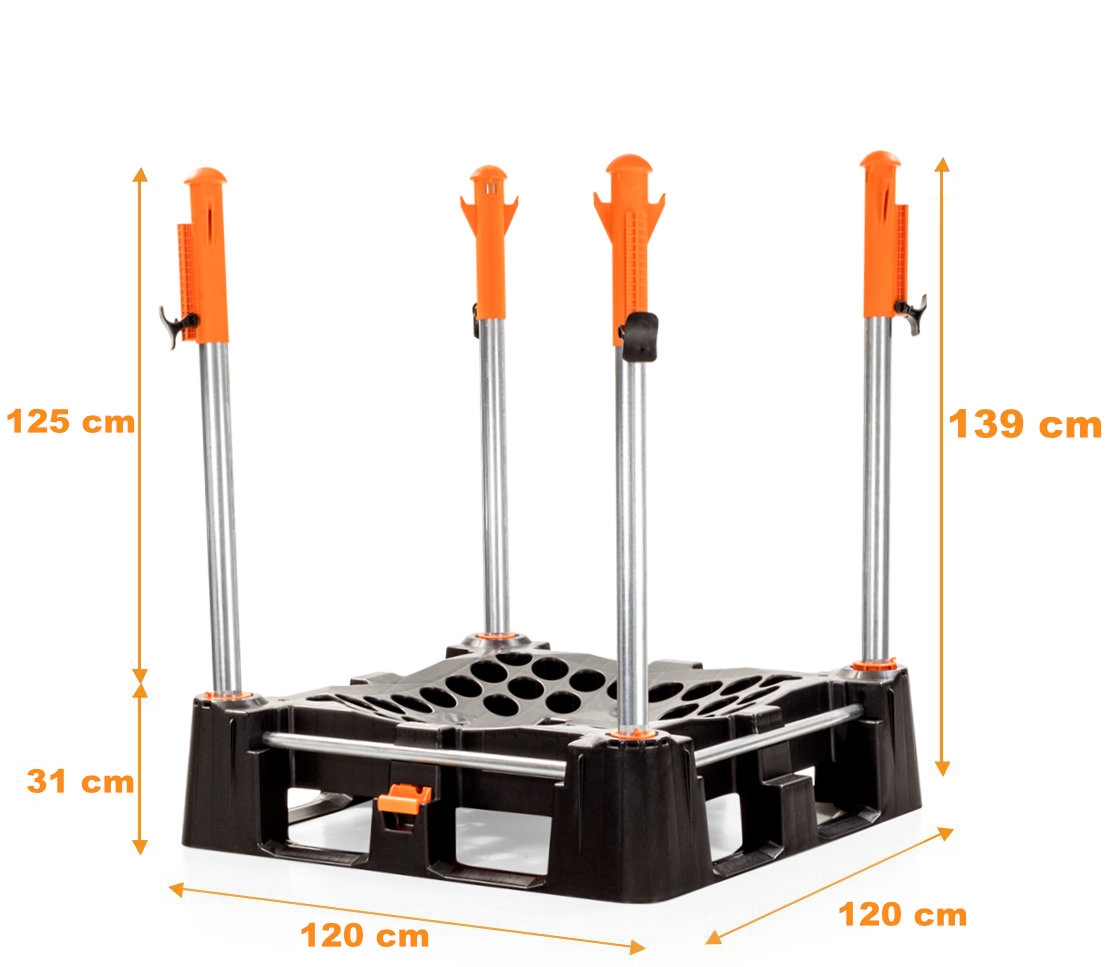

Technical data
| Parameter | Lockhead | Springhead | Rolling Springhead |
|---|---|---|---|
| Pole length | 1,250 mm | 1,300 mm | 1,200 mm |
| System height* (on deck) | ≈ 1,390 mm | ≈ 1,440 mm | ≈ 1,490 mm |
| Feature | — | Automatic spring lift | Spring + roller guide |
| Ideal bag bottoms | 95 × 95 cm – 105 × 105 cm | 95 × 95 cm – 105 × 105 cm | 85 × 85 cm – 90 × 90 cm |
| Common system data | |||
| Deck size (L × W × H) | 1,200 × 1,200 × 310 mm | ||
| Material (poles / deck) | Poles: galvanised steel + head/foot made of plastic, orange Deck: galvanised steel frame + HDPE boards, black | ||
| Ideal bag height | 100 cm ± 5 cm | ||
| Loop length | ≈ 30 cm | ||
| Load per unit | 1 500 kg | ||
| Max. stacking capacity | 6 t / 7 m | ||
*System height = pole length + 30 mm head/foot + 110 mm deck
Need a customised quote? → Complete the form and send it to [email protected].
Certifications
- IBE-BVE · Sebert
INDUS INTEGRATED BULK LOGISTICS B.V., Botter 8, 2411 NM Bodegraven, NETHERLANDS, +31 172 72 71 69, [email protected], www.indus-bulklogistics.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| Lockhead / 1250 mm (Standard) | - | BB105-lock-1250mm |
| Springhead / 1300 mm | - | BB105-spring-1300mm |
| Rolling Springhead / 1200 mm | - | BB105-roll-1200mm |
