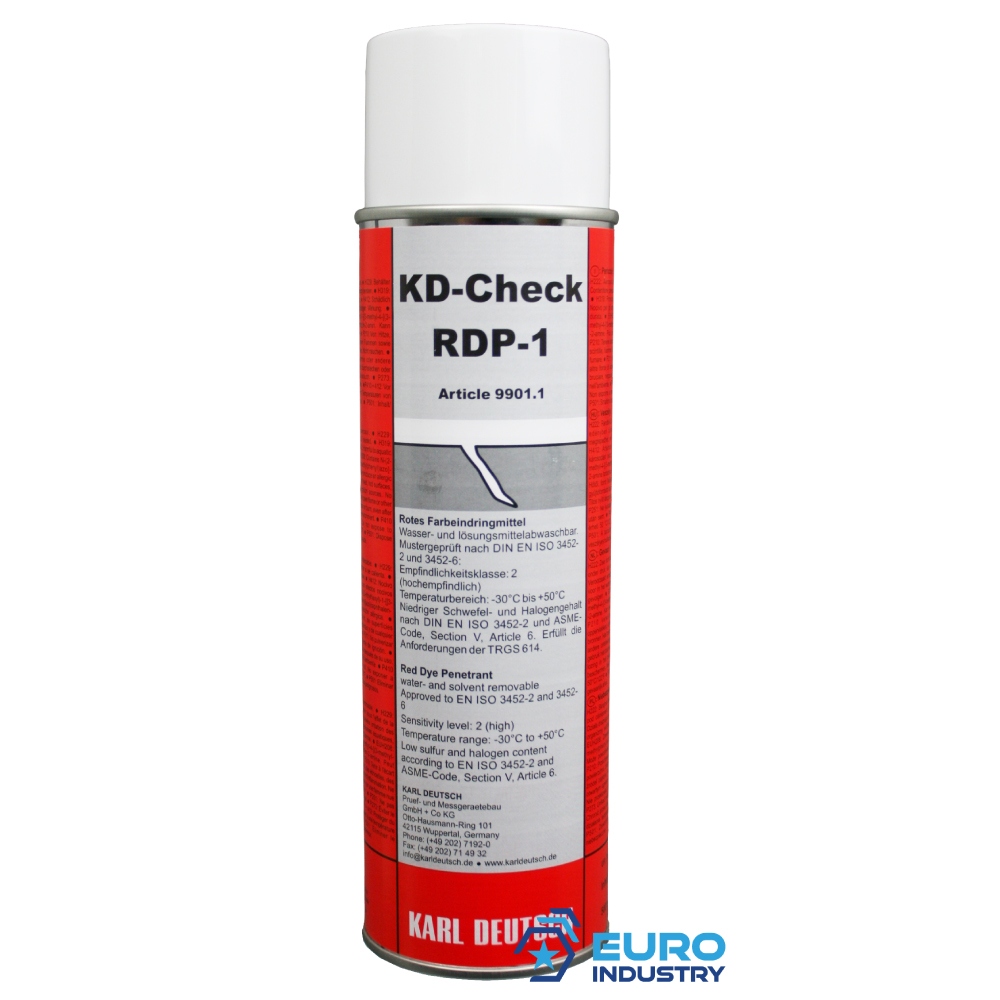

KD-CHECK RDP-1 Red dye penetrant for crack detection 500ml spray

KD-CHECK RDP-1 Red dye penetrant for crack detection 500ml spray

€ 18.98 18.98 incl. VAT (15.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Karl Deutsch

Country of origin: DE/0004

Customs tariff number: 38249992

Weight per piece: 500 g

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

four - zero = ?

( Examples: two + three = 5, three - five = -2 )

Karl Deutsch KD-CHECK RDP-1 red crack detection spray allows non-destructive testing for surface cracks and pores, using the dye penetration test method.

Advantages

Efficient testing with minimum effort: Only one spray of penetrant, cleaner (KD-Check PR-1) and developer (KD-Check SD-1) are required for successful testing.
Reduced consumption: Low viscosity and optimum dripping properties lead to reduced test agent consumption
Easy evaluation: Evaluation is carried out in normal daylight or under daylight lamps
High test reliability: Strong contrast formation, sample tested according to DIN EN ISO 3452-2 and 3452-6, approved according to AREVA NP TLV 9017

Application

Particularly suitable for construction sites, repairs, spot checks and series testing
Suitable for almost all metallic and non-metallic material surfaces such as steel, aluminum, brass or plastics (Suitability for plastics must be checked beforehand)

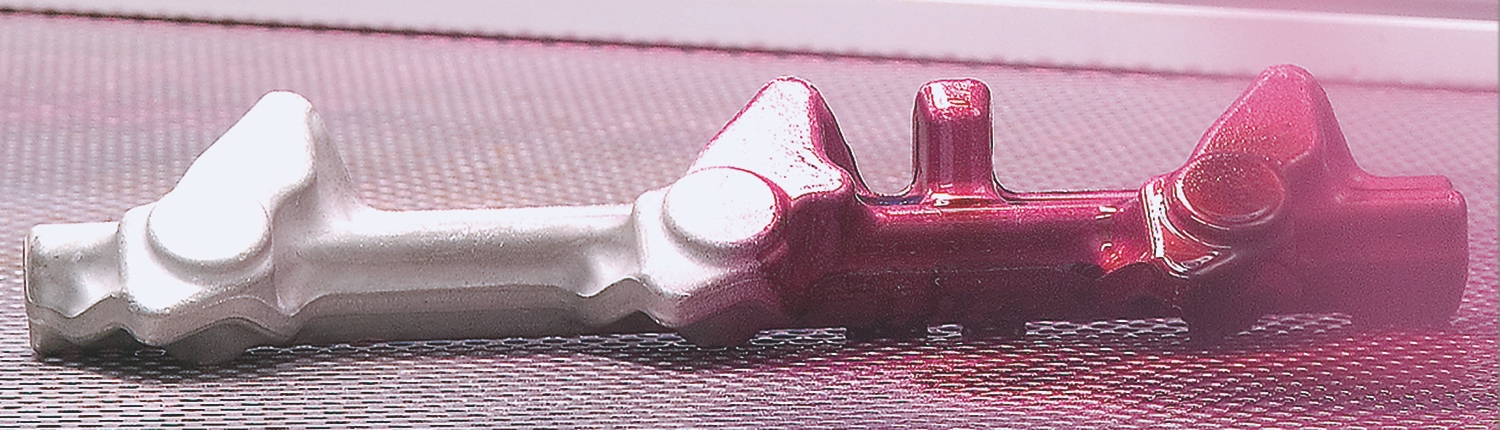

The red dye penetrant seeps into cracks by capillary action. The processing time (5 - 10 minutes) depends on the crack / pore geometry.

Characteristics

Red oil-based dye penetrant ensures high efficiency
Crack detection system is approved according to DIN EN ISO 3452 and meets the requirements of TRGS 614.
No additional auxiliaries required for the dye penetrant process
Red dye penetrant effectively penetrates the crack by capillary action
Exposure time (5 - 10 minutes) varies depending on crack / pore geometry
Sensitivity class 2
Water and solvent washable for easy cleaning
Easy to wash off for clean results
Excellent wetting properties, especially on smooth surfaces
Strong contrast formation
Low sulfur and halogen content according to DIN EN ISO 3452-2 and ASME Code, Section V, Article 6
Can be used in a temperature range from -30 °C to +50 °C
Quality tested: Sample tested according to DIN EN ISO 3452-2 and 3452-6, approved according to AREVA NP TLV 9017.
Size: 500ml
Packaging type: aerosol spray

Hazardous materials. The forwarding charges may be raised, if shipping to: DE, AT, NL, GB, CH, CZ, IT, ES, FI, NO, BE, IE, RO, PL, FR, PT, LU, DK, LI, GR, SE, SK, BG, SI, CA, LT, EE, LV, HR,
