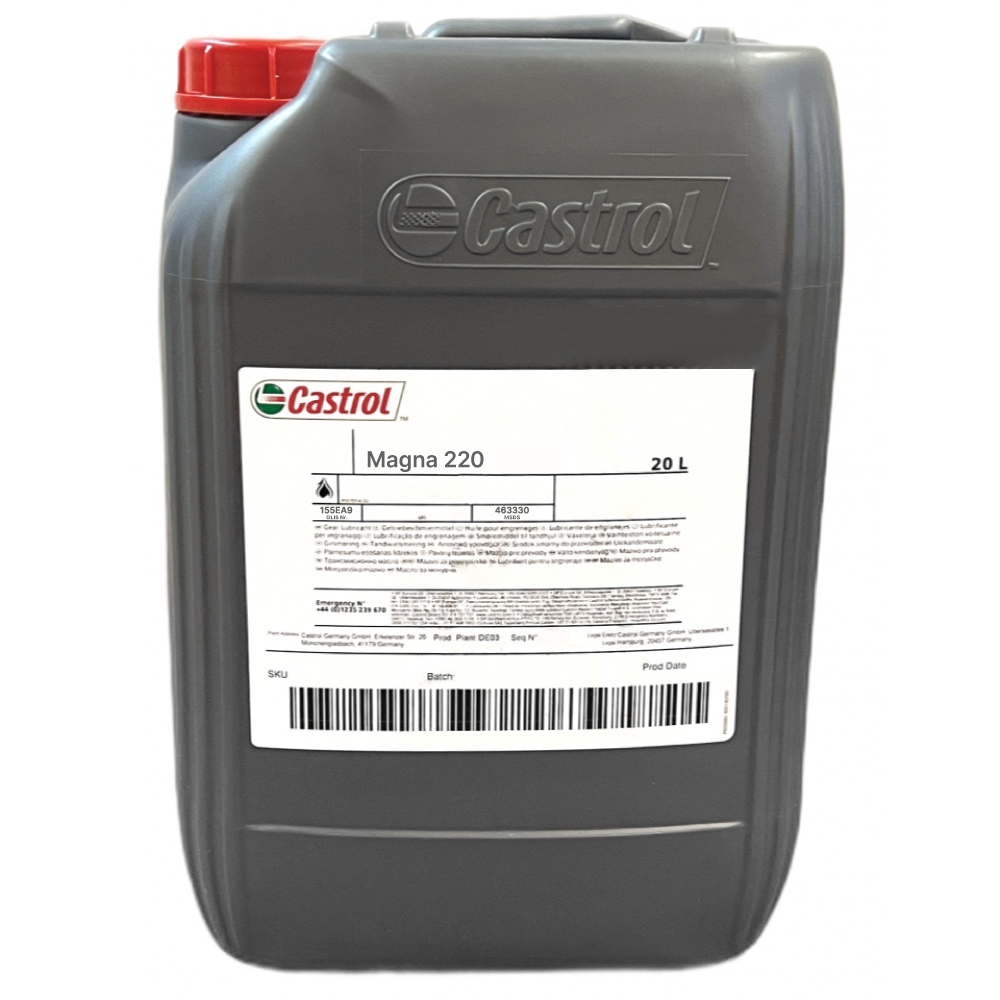

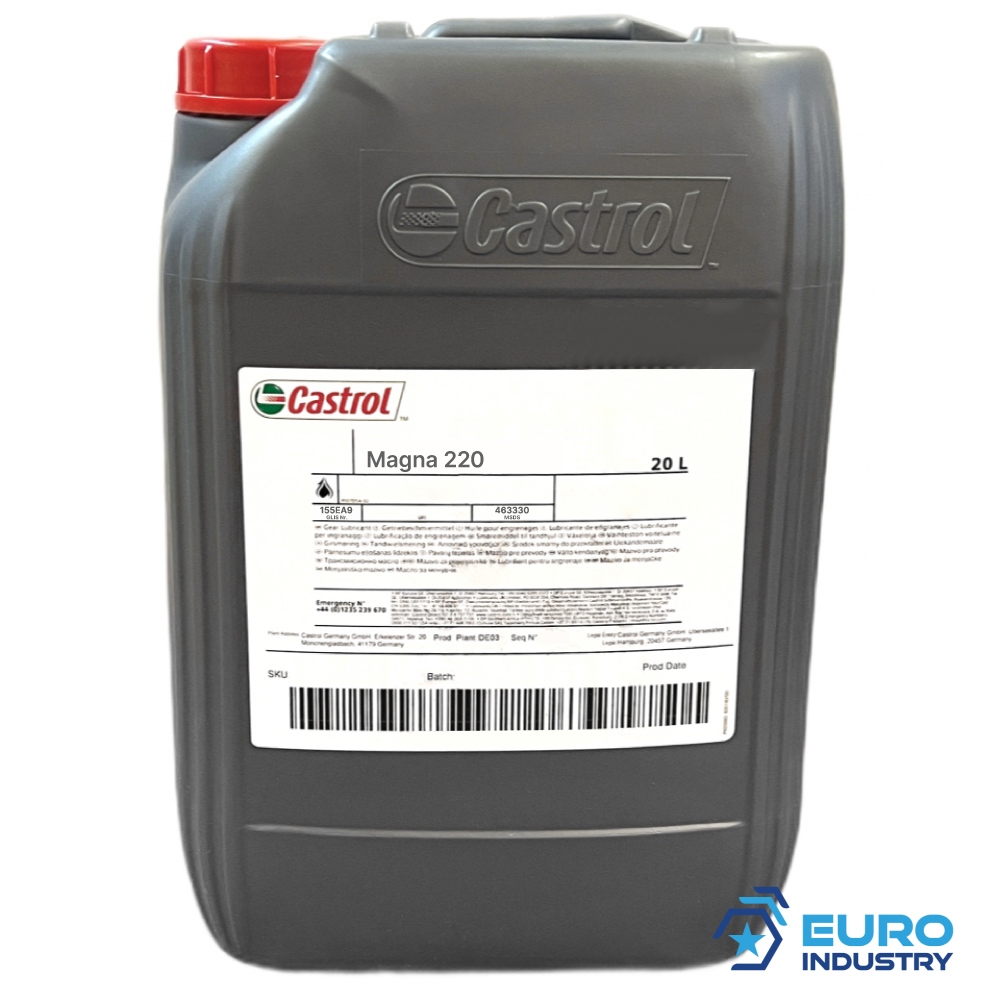

Castrol Magna 220 Lubricating oil type HH 20L canister

Castrol Magna™ 220 is a highly refined mineral oil lubricant (type HH, ISO VG 220) primarily intended for the lubrication of bearings, spindles and, using the heavier viscosity grades, moderately loaded gearboxes.

Application

• Bearings, spindles and, using the heavier viscosity grades, moderately loaded gearboxes
• Vacuum pumps and hydraulic systems where an ‘ISO HH’ fluid type is required.
• Magna lubricating oils are available in a range of viscosities from 320 cSt for gear lubrication down to 2 cSt for use on fine clearance high speed spindles.
• Magna range is fully compatible with nitrile, silicone and fluropolymer seal materials

Specifications / Approvals

• ISO 6743/4 type HH

Advantages

• Highly refined mineral oil makes the product suitable for applications where non-additivated oils can be used
• Good quality mineral oil enables long service life
• Low pour point provides trouble-free operation in cold conditions

Technical specifications

• Density at 15°C: 890 kg/m³
• Kinematic Viscosity at 40°C: 220 mm²/s
• Kinematic Viscosity at 100°C: 18.7 mm²/s
• Viscosity Index: 97
• Pour Point: -15°C
• Flash Point - closed cup method: 264°C
• Size: 20 Liter
• Packaging type: canister
• Also available in: 208l barrel
• GLIS number: 155EA9
• MSDS Code: 463330
