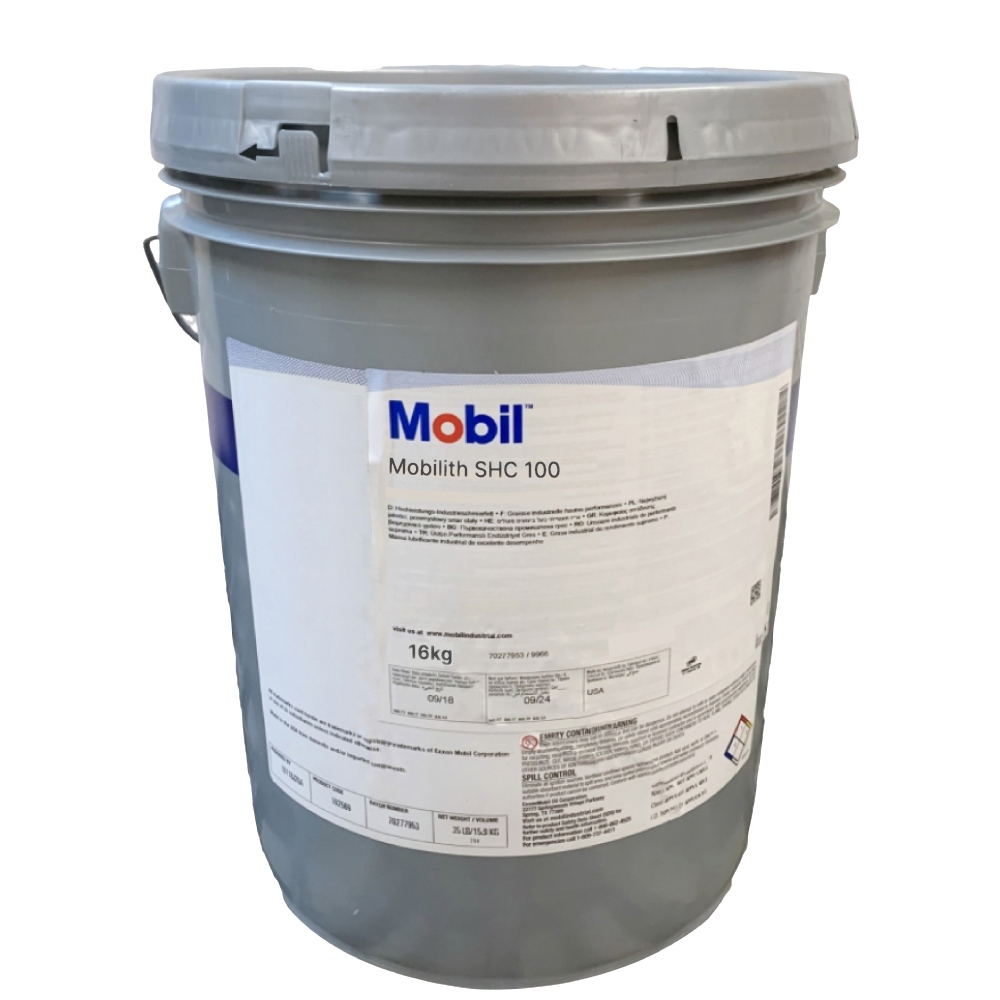

Mobil Mobilith SHC 100 Extreme pressure grease 16kg bucket

Mobil Mobilith SHC 100 is an anti-wear and extreme pressure grease (KP HC 2 N -40) primarily recommended for higher speed applications such as electric motors, where reduced friction, low wear and long service life are required.

Mobilith SHC 100 is an NLGI 2 Grade red grease with a synthetic base fluid (ISO VG 100). Its operating temperature range is -40º C* to 150º C.

• Size: 16 kg bucket
• Also available in: 380 g cartridge, 174 kg Fass

Specifications & Approvals

• DIN 51825:2004-06 - KP HC 2 N -40
• AAR-M942
• CEN EN 12081:2017

Benefits & Characteristics

• Wide application temperature ranges, with excellent protection at high temperatures and low torque, easy start-up at low temperatures
• Reduced downtime and maintenance costs because of reduced wear, rust and corrosion
• Extended service life with longer intervals between relubrication and improved bearing life
• Potential to improve mechanical life and reduced energy consumption
• Options for outstanding protection of slow speed, heavily loaded bearings, and options for good low temperature performance
• Retains excellent grease performance in hostile aqueous environments
• Helps resists viscosity increase at high temperatures to maximize relubrication intervals and bearing life

Technical specifications

Manufacturer Part Number	124398
Property	100
Grade	NLGI 2
Thickener Type	Lithium Complex
Color, Visual	Red
Corrosion Preventive Properties, Rating, ASTM D1743	PASS
Dropping Point, °C, ASTM D2265	265
Four-Ball Extreme Pressure Test, Weld Load, kgf, ASTM D2596	250
Four-Ball Wear Test, Scar Diameter, mm, ASTM D2266	0.5
Four-Ball Wear Test, Scar Diameter, 40 kg, 1200 rpm, 1 h, 75 C, mm, ASTM D2266
Penetration, 60X, 0.1 mm, ASTM D217	280
Rust, Rating, ASTM D1743
SKF Emcor Rust Test, Distilled Water, ASTM D6138
SKF Emcor Rust Test, Distilled Water, Bearing 1, ASTM D6138	0
SKF Emcor Rust Test, Distilled Water, Bearing 2, ASTM D6138	0
US Steel Mobility @ -18 C, g/min, AMS 1390	20.0
Viscosity @ 100 C, Base Oil, mm2/s, ASTM D445	16.3
Viscosity @ 40 C, Base Oil, mm2/s, ASTM D445	100
Viscosity Index, ASTM D2270	175
Water Washout, Loss @ 79 C, wt%, ASTM D1264	6

Product description Mobilith SHC™ Series

Exxon Mobil Mobilith SHC™ Series greases are superior performance products designed for a wide variety of applications at extremes of temperature. They combine the unique features of synthetic base fluids with those of a high quality lithium complex thickener. The wax-free nature of synthetic fluids and the low coefficient of traction (compared with mineral oils), provide excellent low temperature pumpability and very low starting and running torque. These products offer the potential for energy savings and can reduce operating temperatures in the load zone of spherical roller and ball bearings. The lithium complex thickener contributes excellent adhesion, structural stability and resistance to water. The greases have a high level of chemical stability and are formulated with special additive combinations to provide excellent protection against wear, rust and corrosion, and providing operating viscosity at high and low temperatures. Mobilith SHC Series greases are available in seven grades, varying in base oil viscosity from ISO VG 100 to 1500 and in NLGI grade from 2 to 00.
