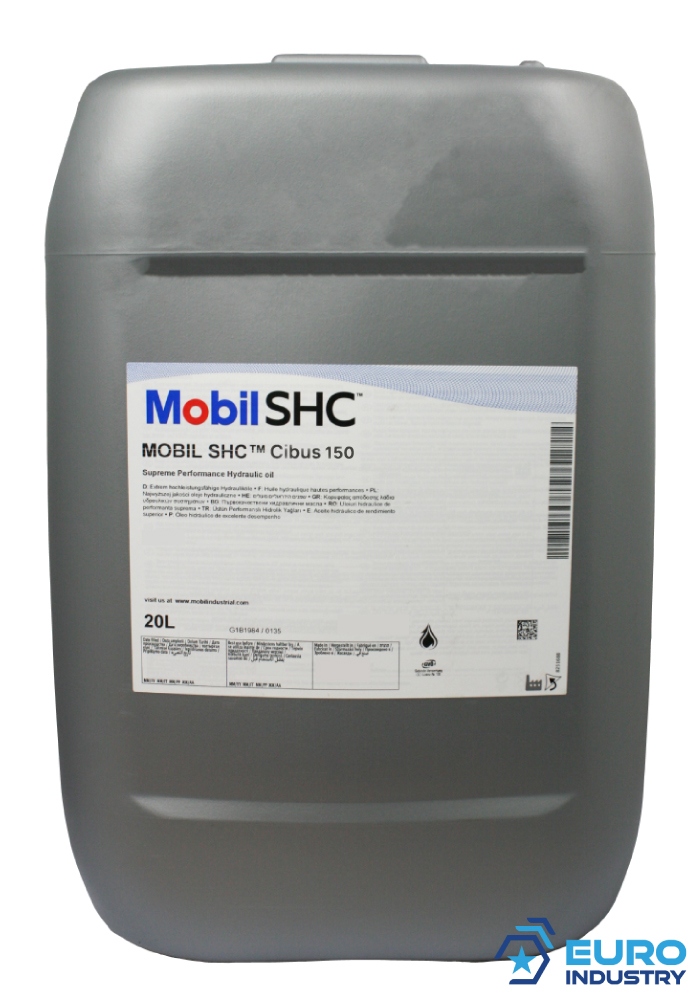

Mobil SHC Cibus 150 High performance food machinery oil 20L canister

Mobil SHC Cibus™ 150 is a mineral-oil-based high performance lubricant (ISO VG 150​) for the food processing industry (NSF H1 registered).

Application

• Intended for gear, bearing and circulating systems
• Recommended for use in a wide variety of hydraulic, compressor, gear and bearing applications within food and beverage processing, packaging and pharmaceuticals
• For use in food preparation in accordance with Kosher and Halal regulations
• Applications where maintenance costs of component replacement, system cleaning and lubricant changes are high

Specifications & Approvals

• DIN 51517-3:2018-09 (CLP gear oils)
• NSF H1
• FDA 21CFR 178.3570 - For accidental contact of lubricant with food only
• Canadian Food Inspection Agency Acceptance
• Halal
• Kosher (Parve)

Features

• High viscosity index
• High load carrying capability
• Good seal compatibility
• Excellent oxidation stability
• Excellent water separation and good corrosion protection
• Size: 20l canister
• Also available in: 208l drum

Advantages and Potential Benefits

• Allows use in food and beverage packaging and processing applications
• Product integrity assurance through independent verification
• Maintains viscosity and film thickness at high temperatures to help protect equipment
• Exceptional low temperature performance, including low power consumption at start-up
• Helps reduce potential oil leakage
• Helps prevent internal systems from corrosion even where large quantities of water are present
• Maintains lubrication performance even after high pressure wash downs

Technical specifications

Manufacturer number	150821
Viscosity class	ISO 150
Copper Strip Corrosion, 3 h, 100 C, Rating, ASTM D130	1A
Density @ 15 C, kg/l, ASTM D4052	0.843
Flash Point, Cleveland Open Cup, °C, ASTM D92	226
Kinematic Viscosity @ 100 C, mm2/s, ASTM D445	20.7
Kinematic Viscosity @ 40 C, mm2/s, ASTM D445	162
Pour Point, °C, ASTM D97	-21
Rust Characteristics, Procedure A, ASTM D665	PASS
Viscosity Index, ASTM D2270	150

Product Description Mobil SHC Cibus™ Series

Mobil SHC Cibus™ Series lubricants are outstanding performance hydraulic, compressor, gear and bearing oils designed to provide outstanding equipment protection, long oil life and problem-free operation in the food and beverage processing and packaging industries. They are formulated from FDA and NSF registered hydrocarbon base fluids and additives. The combination of the naturally high viscosity index and the proprietary additive system enables the Mobil SHC Cibus series lubricants to provide outstanding performance in a wide range of service applications at high and low temperatures, high loading and in areas of high wash-down well beyond the capabilities of typical mineral oils.

Mobil SHC Cibus lubricants are NSF H1 registered lubricants and also comply with Title 21 CFR 178.3570 by the Food and Drug Administration (USA) for lubricants with incidental food contact. Also, the Mobil SHC Cibus Lubricants are manufactured at ISO 22000 certified facilities that also meet the requirements of ISO 21469 helping to ensure that the highest levels of product integrity are maintained. They are also suitable for Kosher and Halal food preparation for multi faith applications and to offer processing engineers maximum flexibility during operations. The products are pale in color with low odour and are formulated to be free of animal derived materials and allergens from nuts, wheat or gluten.

The Mobil SHC Cibus Series products have low traction coefficients, derived from the molecular structure of the base stocks used.  This results in low fluid friction in the load zone of non-conforming surfaces.  Low fluid friction produces lower operating temperatures and improved equipment efficiency, which potentially translates into reduced power consumption.  The carefully engineered products also help to extend the service life of machinery components and allow for more economical equipment design.  Moreover, the additive system used in these oils has been selected to provide good wear protection, excellent oxidation stability, protection against rust and corrosion even in moist environments and provide good system cleanliness.  The Mobil SHC Cibus Series oils are also compatible with seals and other construction materials used in equipment normally lubricated with mineral oils.

The Mobil SHC Cibus Series oils can be used as hydraulic, gear, bearing and circulating oils in all areas within the food processing plant and can be included as part of a HACCP plan.   The products meet the most rigorous performance requirements of a range of component manufacturers using various multi-metallurgy designs that help allow a single product series to lubricate effectively.  Because they offer productivity and NSF H1 registration benefits, the Mobil SHC Cibus products can be used both above and below the processing line to reduce inventory costs and reduce the risks of non H1 registered lubricants being dispensed in high contamination risk areas.

Through outstanding traction properties, Mobil SHC Cibus Series lubricants have demonstrated the potential to provide significant energy savings — 3.6% in gear applications* and 3.5% in hydraulic applications** — versus conventional oils in statistically validated field and laboratory tests.

Mobil SHC Cibus 150-460 will not contribute to MOAH content in food when used in accordance with FDA 21CFR178.3570 limitations
