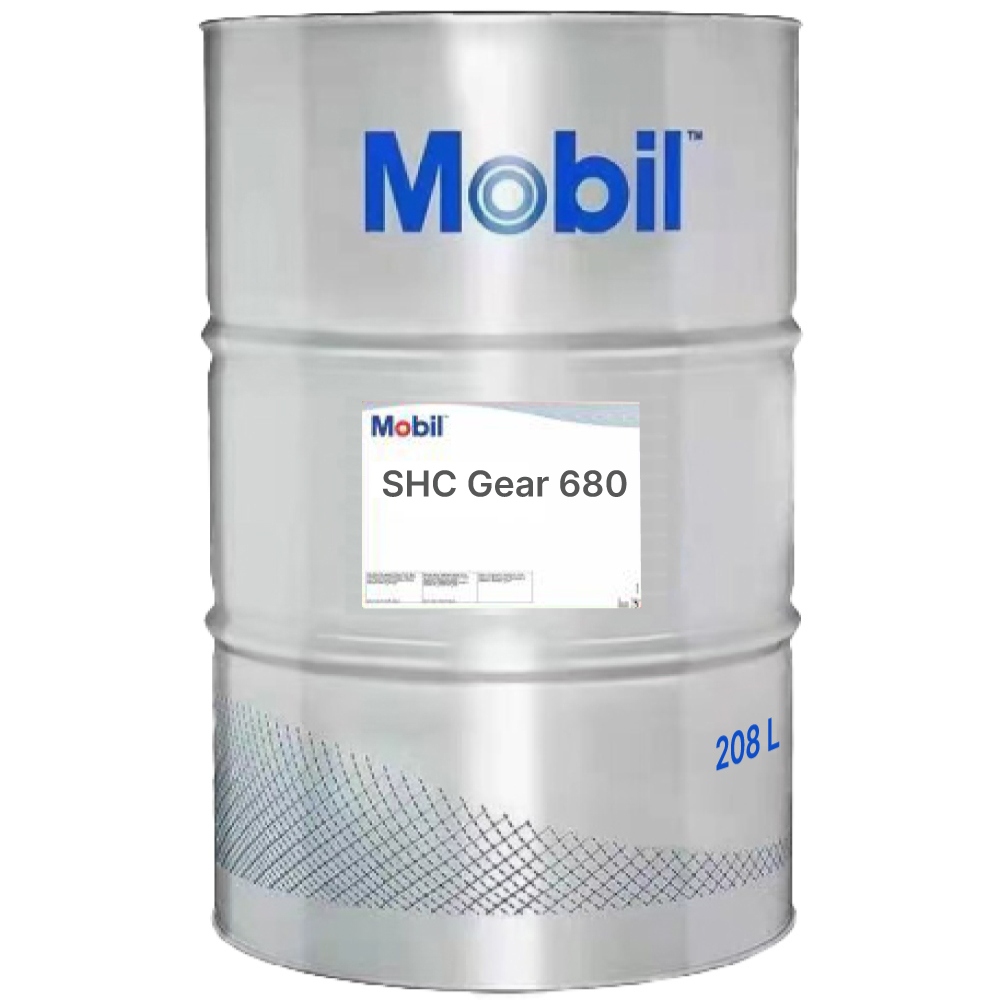

Mobil SHC Gear 680 Synthetic high performance gear oil VG 680, 208L

Mobil SHC Gear 680 Synthetic high performance gear oil VG 680, 208L

€ 3930.87 3,930.87 incl. VAT (3,303.25 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Mobil

Country of origin: DE/0004

Customs tariff number: 34039900

Weight per piece: 208.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

zero + two = ?

( Examples: two + three = 5, three - five = -2 )

Mobil SHC™ Gear 680 is an exceptional performance, synthetic industrial gear oil (ISO VG 680) designed to provide outstanding protection of gears and bearings and extended oil life even under extreme conditions.

Pack size: 208 L drum
Also available in: 20 L pail

Applications

Enclosed industrial gear drives including steel-on-steel spur, helical, and bevel gears
Applications that may be subject to micropitting, especially heavily loaded gearboxes with surface-hardened tooth metallurgies
Gear applications where extreme low and/or high temperatures are encountered
Applications where corrosion may be severe
Modern, highly loaded gearboxes used in the paper, steel, oil, textile, lumber and cement industries where gear protection and optimum oil life are required
Plastic extruder gearboxes
Off-highway vehicle motorized wheel gearbox applications (GE D50E35)

Specifications & Approvals

Flender
GE OHV D50E35A/B/C/D/E
SEW-Eurodrive
ZF TE-ML 04H
AGMA 9005-F16
DIN 51517-3:2018-09
ISO L-CKD (ISO 12925-1:2024)
ISO L-CTPR (ISO 12925-1:2024)

Characteristics

Superb protection from micropitting fatigue wear as well as high resistance to traditional scuffing wear
Helps extend gear and bearing life in enclosed gear drives operating under extreme conditions of load, speed and temperature
Helps reduce unplanned downtime; less maintenance - especially critical for difficult to access gearboxes
Excellent resistance to degradation at high temperatures
Low traction
High viscosity index equating to reduced viscosity change with temperature
Excellent resistance to rust and corrosion and very good demulsibility
Excellent compatibility with a variety of soft metals
Excellent shear stability
Resistence to filter plugging, even in the presence of water
Excellent seal compatibility
Excellent compatibility with common gearbox materials and with mineral-based gear oils
Easy changeover from many mineral products

Technical specifications

Grade	ISO 680
Brookfield Viscosity @ -17.8 °C, mPa.s, ASTM D2983	41000
Brookfield Viscosity @ -29 °C, mPa.s, ASTM D2983	156000
Copper Strip Corrosion, 24 h, 121 °C, Rating, ASTM D130	1B
Demulsibility, Total Free Water, for EP Oils, ml, ASTM D2711	87
Density @ 15.6 °C, g/ml, ASTM D4052	0.86
Emulsion, Time to 37 mL Water, 82 °C, min, ASTM D1401	25
FZG Micropitting, Fail Stage, Rating, FVA 54	10
FZG Micropitting, GFT-Class, Rating, FVA 54	High
FZG Scuffing, Fail Load Stage, A/16.6/90, ISO 14635-1(mod)	>14
FZG Scuffing, Fail Load Stage, A/8.3/90, ISO 14635-1(mod)	14
Flash Point, Cleveland Open Cup, °C, ASTM D92	234
Foam, Sequence II, Stability, ml, ASTM D892	0
Foam, Sequence II, Tendency, ml, ASTM D892	0
Four-Ball Extreme Pressure Test, Load Wear Index, kgf, ASTM D2783	51
Four-Ball Extreme Pressure Test, Weld Load, kgf, ASTM D2783	200
Kinematic Viscosity @ 100 °C, mm²/s, ASTM D445	75.5
Kinematic Viscosity @ 40 °C, mm²/s, ASTM D445	680
Pour Point, °C, ASTM D5950	-42
Rust Characteristics, Procedure B, ASTM D665	PASS
Total Acid Number, mgKOH/g, ASTM D664	0.9
Viscosity Index, ASTM D2270	192

Product Description

Application Considerations: While the Mobil SHC Gear Series are compatible with mineral oil based products, admixture may detract from their performance. Consequently it is recommended that before changing a system to one of the Mobil SHC Gear Series, it should be thoroughly cleaned out and flushed to achieve the maximum performance benefits.

Information on product safety (Manufacturer, Contact)

EXXONMOBIL CENTRAL EUROPE HOLDING GMBH, Ericusspitze 2, 20457 Hamburg, GERMANY, +49 40 6393 0, [email protected], www.exxonmobil.de

mobil-shc-gear-synthetic-high-performance-gear-oil-tds-datasheet-en.pdf (81.62 KB)
