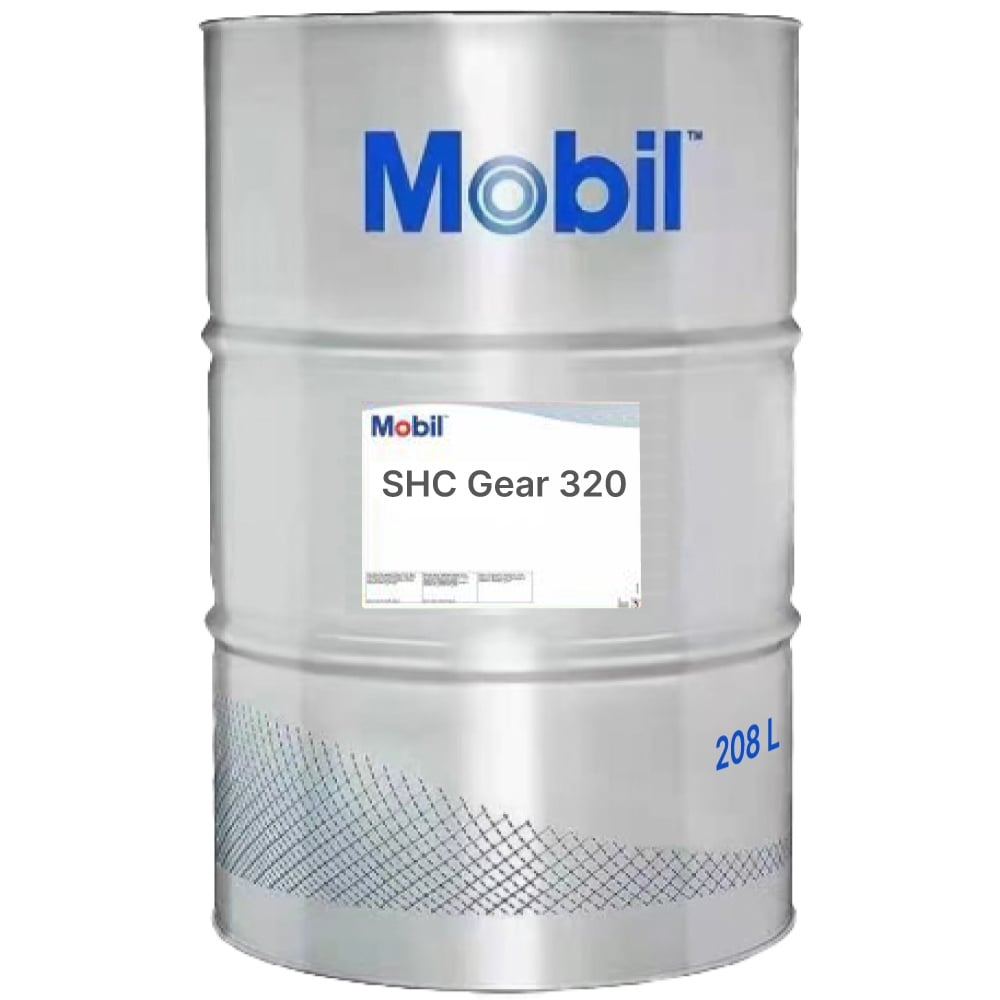

Mobil SHC Gear 320 Synthetic high performance gear oil VG 320, 208L

Mobil SHC™ Gear 320 is an exceptional performance, synthetic industrial gear oil (ISO VG 320) designed to provide outstanding protection of gears and bearings, extended oil life even under extreme conditions, helping to enable problem-free operation of equipment and increased customer productivity.

• Pack size: 208 L drum
• Also available in: 20 L canister

Applications

• Application Considerations: While the Mobil SHC Gear Series are compatible with mineral oil based products, admixture may detract from their performance. Consequently it is recommended that before changing a system to one of the Mobil SHC Gear Series, it should be thoroughly cleaned out and flushed to achieve the maximum performance benefits.
• Modern, highly loaded gearboxes used in the paper, steel, oil, textile, lumber and cement industries where gear protection and optimum oil life are required.
• Plastic extruder gearboxes
• Mobil SHC Gear Series ISO VG 150, 220, 320, 460 and 680 are approved under General Electric's (GE) gear oil specification D50E35 for use in off-highway vehicle motorized wheel gearbox applications.

Specifications & Approvals

• Flender
• GE OHV D50E35A/B/C/D/E
• SEW-Eurodrive
• AGMA 9005-F16
• DIN 51517-3:2018-09
• ISO L-CKD (ISO 12925-1:2024)

Characteristics

• Superb protection from micropitting fatigue wear as well as high resistance to traditional scuffing wear
• Helps extend gear and bearing life in enclosed gear drives operating under extreme conditions of load, speed and temperature
• Helps reduce unplanned downtime; less maintenance - especially critical for difficult to access gearboxes.
• Excellent resistance to degradation at high temperatures
• Helps extend oil life and drain intervals and reduce oil consumption, which can lower maintenance costs
• Low traction
• Helps reduce energy consumption and lower operating temperatures
• High viscosity index equating to reduced viscosity change with temperature
• Ability to operate at both high and low temperatures: especially critical in remote applications with no oil cooling or heating
• Excellent resistance to rust and corrosion and very good demulsibility
• Helps to ensure smooth, trouble-free operation at high temperatures or in applications subject to water contamination
• Excellent compatibility with a variety of soft metals
• Excellent shear stability
• Helps extend gear and bearing life
• Resistence to filter plugging, even in the presence of water
• Fewer filter changes; which can help reduce maintenance costs
• Excellent seal compatibility
• Less contamination and lower potential for oil leakage
• Excellent compatibility with common gearbox materials and with mineral-based gear oils
• Easy changeover from many mineral products

Technical specifications

Product Description

These scientifically engineered synthetic lubricants are formulated from synthetic base fluids that have exceptional oxidation and thermal properties and excellent low temperature fluidity.

The high viscosity index of these oils deliver less change in viscosity with changes in temperature, enabling wider operating temperature range and improved low temperature startup. Mobil SHC Gear Series lubricants contain an advanced proprietary additive system designed to provide excellent protection against conventional wear modes such as scuffing as well as a high level of resistance against micropitting fatigue.

Mobil SHC Gear Series products offer outstanding rust and corrosion protection relative to conventional gear oils, even in the presence of seawater contamination. They show no tendency to plug fine filters even when wet and have excellent compatibility with ferrous and non-ferrous metals even at elevated temperatures.

Mobil SHC Gear Series also exhibit outstanding compatibility with elastomers in static seal tests. They have outstanding EP properties that provide protection even under shock load conditions.

Mobil SHC Gear lubricants are recommended for enclosed industrial gear drives including steel-on-steel spur, helical, and bevel gears. They are especially recommended for applications that may be subject to micropitting: especially heavily loaded gearboxes with surface-hardened tooth metallurgies. It may also be used in gear applications where extreme low and/or high temperatures are encountered and applications where corrosion may be severe.
