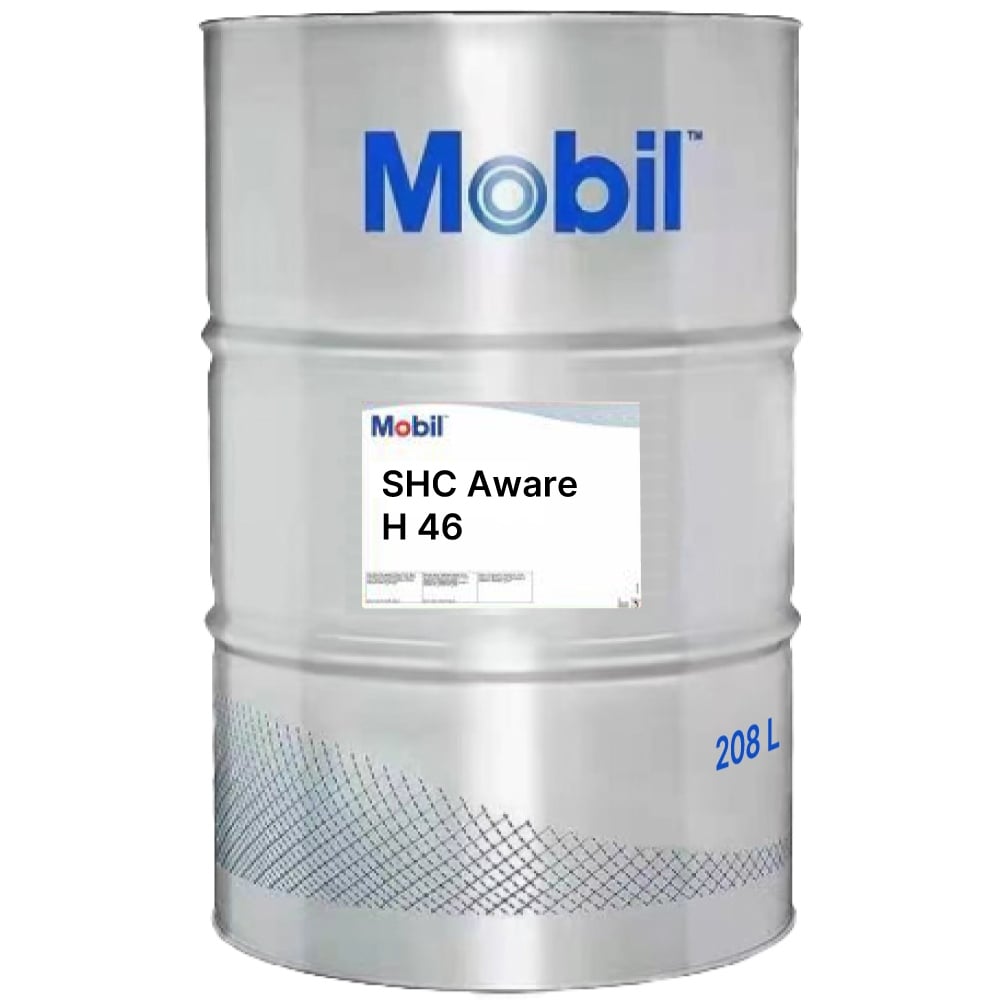

Mobil SHC Aware H 46 Hydraulic oil for marine applications 208L

Mobil SHC Aware™ H 46 lubricant is a high performance, anti-wear hydraulic oil  (ISO VG 46) for modern high pressure hydraulic systems that meet the U.S. Environmental Protection Agency (EPA) 2013 Vessel General Permit (VGP) guidelines for "environmentally acceptable lubricants".

• Size: 208 L drum
• Also available in: 20 L canister

Applications

•  Marine controllable pitch propellers (CPP) systems, fin stabilizers, deck equipment, hydraulic systems where spills or leakage could result in adverse environment impact
• In systems where readily biodegradable and minimally toxic fluids may be required

•

  Circulation systems containing gears and bearings where mild extreme-pressure characteristics are desired
• Systems containing servo-valves
• Hydraulic systems operating with oil temperatures in the range of -30C to +100C
• Marine and mobile equipment operating in environmentally sensitive areas
• Circulation systems operating under mild to moderate service conditions
• Industrial hydraulic systems where leaked or spilled fluids could get into plant effluent
• Air line oilers and some limited oil-mist generating systems

Specifications & Approvals

• Denison HF-1
• Denison HF-2
• Denison HF-6
• Eaton Brochure No. 03-401-2010, Rev 1
• FINCANTIERI HEES Oil for Stabilizer X X
• FINCANTIERI HEES Oil for Thrusters

Features

• Meets US EPA 2013 Vessel General Permit requirements for environmentally acceptable lubricants
• Outstanding load-carrying and anti-wear properties which protects system components against wear and scuffing and helps provide long equipment life
• Shear stable high viscosity index help sustain component protection over a wide temperature
• Excellent thermal /oxidation stability that can help reduce maintenance downtime and costs by contributing to system cleanliness and deposit reduction, enable long oil and filter life
• Excellent demulsibility ensures ease of water removal in below waterline applications
• Good elastomer compatibility, it works well with same elastomers used with conventional mineral hydraulic oils

Technical specifications

Manufacture number	152372
Grade	ISO 46
Density @ 15 C, kg/m3, DIN 51757	0.905
Flash Point, Cleveland Open Cup, °C, ASTM D92	185
Kinematic Viscosity @ 100 C, mm2/s, ASTM D445	8.2
Kinematic Viscosity @ 40 C, mm2/s, ASTM D445	46
Pour Point, °C, ASTM D5950	-36
Viscosity Index, ASTM D2270	140







Information on product safety (Manufacturer, Contact)

EXXONMOBIL CENTRAL EUROPE HOLDING GMBH, Ericusspitze 2, 20457 Hamburg, GERMANY, +49 40 6393 0, [email protected], www.exxonmobil.de
