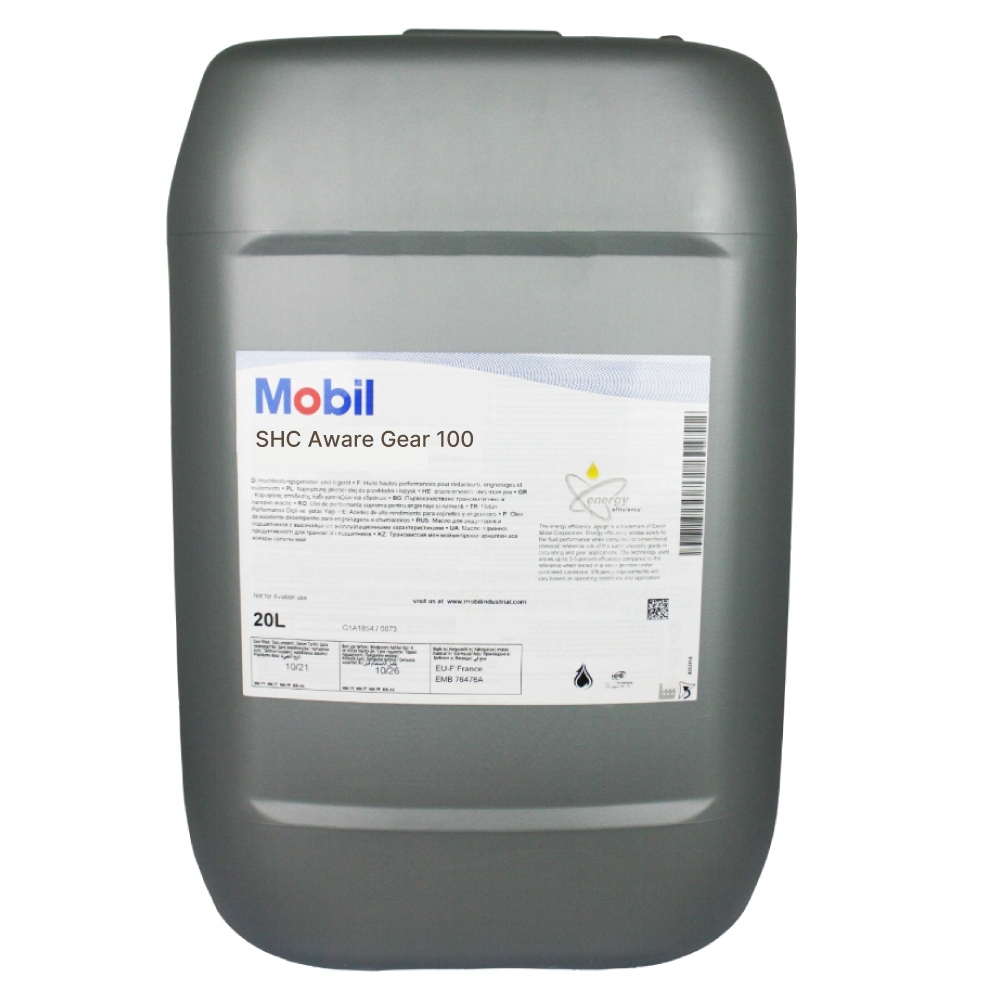

Mobil SHC Aware Gear 100 High Performance Marine Gear Oil 20L

Mobil SHC Aware™ Gear 100 are a range of high performance, anti-wear gear oils (ISO VG 150) for use in marine applications and meet the U.S. Environmental Protection Agency (EPA) 2013 Vessel General Permit (VGP) guidelines for “environmentally acceptable lubricants”.

Applications

• Marine controllable pitch propeller and thruster applications
• Suitable for enclosed gear drives including steel-on-steel spur, helical and bevel designs
• In systems where readily biodegradable and minimally toxic fluids may be required
• Marine and mobile equipment operating in environmentally sensitive areas
• Can be used in select Stern Tube applications

Specifications & Approvals

• SKF Marine Environmental Acceptable Lubricant (EAL) for SIMPLEX Stern Tube Bushes and Seals.
• AGMA 9005-E02-EP
• ISO L-CKC (ISO 12925-1:2024)
• ISO L-CKD (ISO 12925-1:2024)
• US EPA VGP:2013

Mobil SHC Aware Gear Series have the following Thruster builder approvals:

• Nakashima
• HHI Hyundai
• KTE Nakashima Korea
• KHI

Features

• Meets US EPA 2013 Vessel General Permit requirements for environmentally acceptable lubricants
• Outstanding load-carrying and anti-wear properties which protects system components against micropitting and scuffing and helps provide long equipment life
• Shear stable high viscosity index help sustain component protection over a wide temperature
• Excellent resistance to high temperatures degradation
• Very good demulsibility and resistance to rust and corrosion
• Size: 20 l canister
• Also available in: 208 l barrel

Technical specifications

Manufacture number
Grade	ISO 100
Density @ 15 C, kg/m3, DIN 51757	921.5
Flash Point, Cleveland Open Cup, °C, ASTM D92	287
Kinematic Viscosity @ 100 C, mm2/s, ASTM D445	13.3
Kinematic Viscosity @ 40 C, mm2/s, ASTM D445	100
Pour Point, °C, ASTM D5950	-36
Rust Characteristics, Procedure B, ASTM D665	PASS
Viscosity Index, ASTM D2270	137
