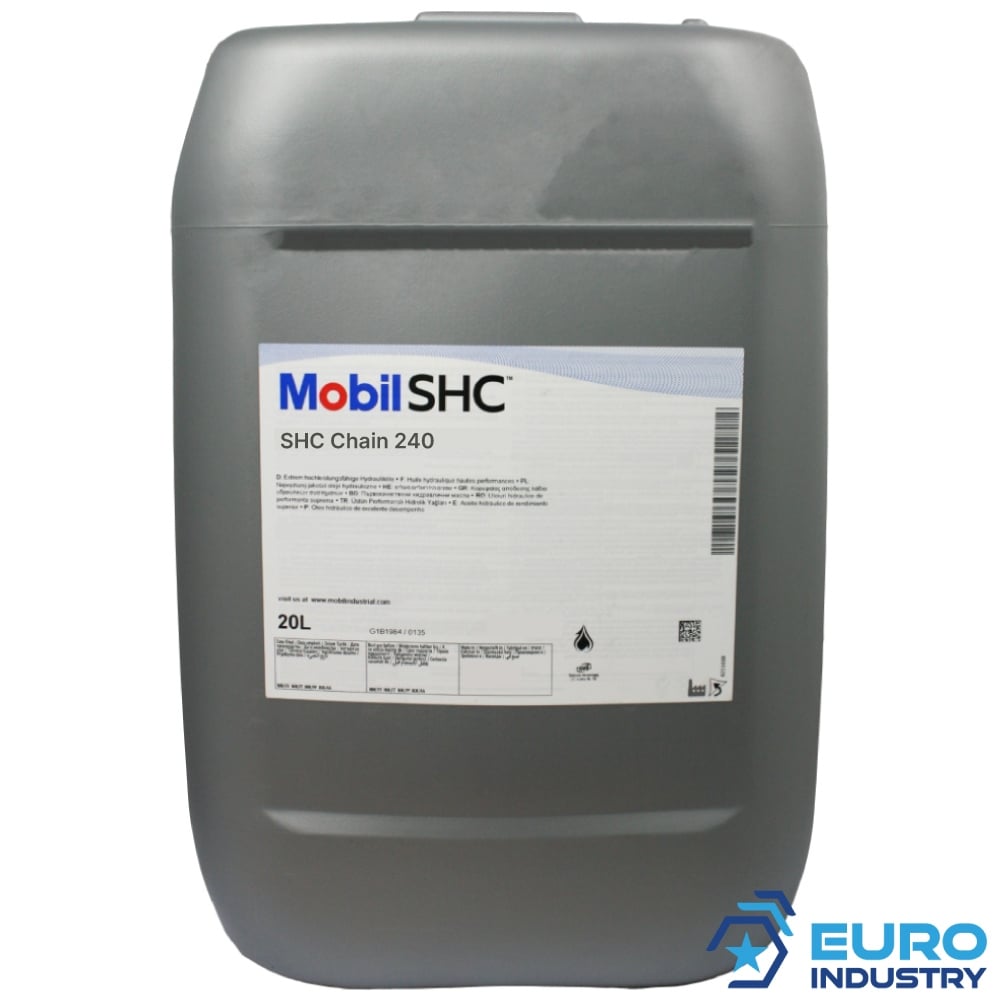

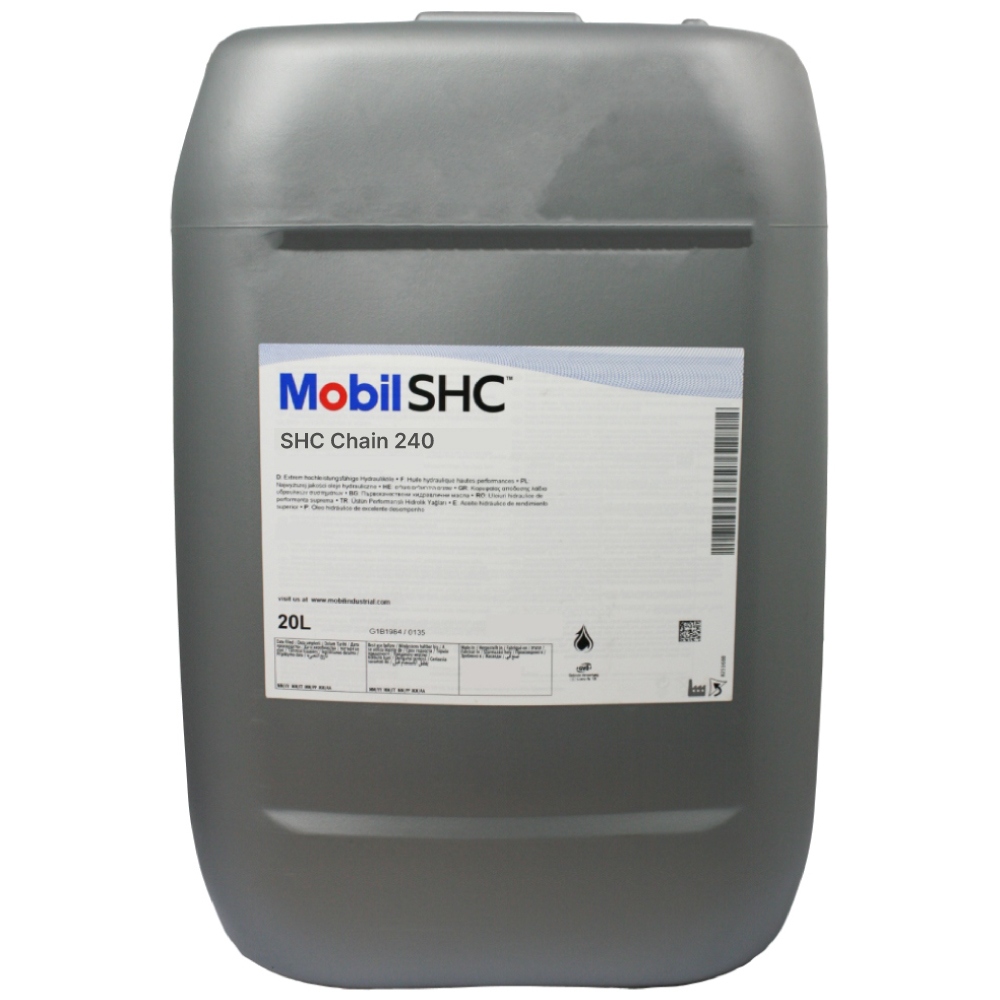

Mobil SHC Chain 240 High temperature chain lubricant 20L canister

Exxon Mobil SHC™ Chain 240 is an exceptional performance chain lubricant designed for lubrication of high temperature conveyor chains at temperatures up to 290°C / 555°F. It is designed to provide excellent wear protection and resistance to evaporation, thermo-oxidation and coking.

Application

• Mobil SHC Chain 240 is specifically designed for the lubrication of oven conveyor chains at temperatures up to 290ºC (555⁰ F)
• Suitable for high temperature chain applications in
  • Fiber glass insulation manufacture
  • Particleboard (OSB , MSB) manufacture
  • Plastics and textiles manufacture
  • Paint oven operations

Features

• Provide a degree of equipment protection beyond the capabilities of conventional chain lubricants
• Provide extra reassurance of trouble-free equipment protection at very high temperatures
• Extend equipment life, reduce costs, improve total system performance
• Prevent wear of chains, sprockets, and other system components
• Reduce deposit formation thereby reducing chain sticking
• Provide lasting lubrication of chains at high temperatures
• Reduce lubricant consumption compared to conventional chain lubricants
• Size: 20l canister
• Also available in: 208l drum

Technical specifications

Manufacturer number	153772
Copper Corrosion, 3 Hrs @ 100C, Rating, ISO 2160	1A
Density @ 20C, kg/m3, ISO 12185	968
Evaporation Loss, 6.5 h, 204 C, mass%, ASTM D972(mod)	1
Flash Point (COC), C, EN ISO 2592	290
Foam, Sequence I, Stability, 24 C, ml, ISO 6247	0
Foam, Sequence I, Tendency, 24 C, ml, ISO 6247	50
Four-Ball Extreme Pressure Test, Weld Load, kgf, ASTM D2783	160
Four-Ball Wear Test, Scar Diameter, 40 kg, 1200 rpm, 1 h, 75 C, mm, ASTM D4172	0.4
Kinematic Viscosity @ 100 C, mm2/s, ISO 3104	19
Kinematic Viscosity @ 40C, mm2/s, ISO 3104	245
Pour Point, °C, ISO 3016	-24
Viscosity Index, ISO 2909	86
