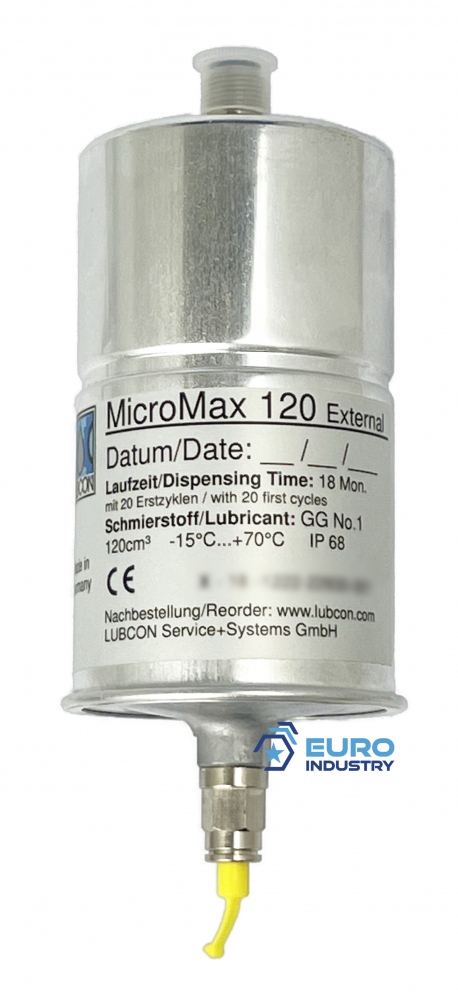

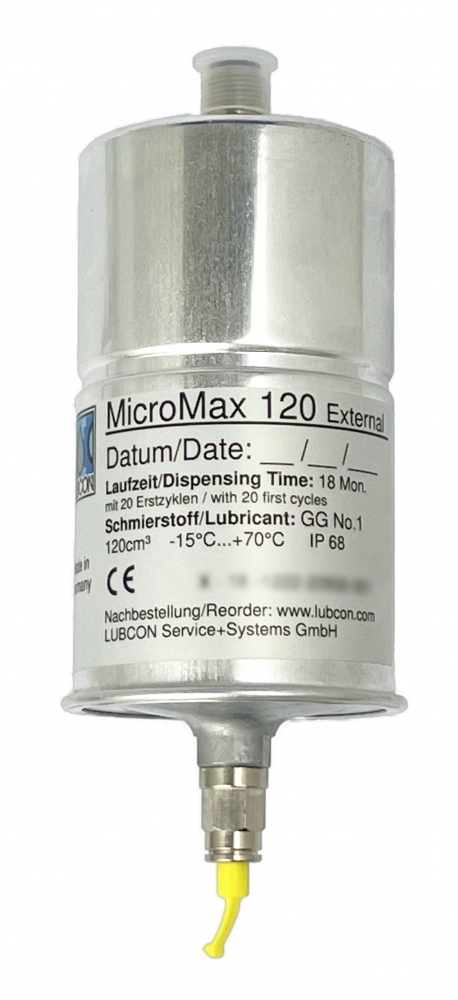

LUBCON MicroMax 120 Solution for automatic lubrication

The lubricator LUBCON MicroMax 120 is an economical solution for automatic long term lubrication. The self-sustaining electro-mechanical lubricator enables the lubrication of components in extreme operating conditions over long periods, even in areas which are hard to access.

Economical

• Easy installation and activation
• Automatic lubricant supply 24/7
• Optimum metering of the lubricant
• Combination of premium lubricant and intelligent lubrication device
• Battery driven, no external power needed

Robust and reliable

• Closed metal housing
• Completely sealed unit
• Performs in extreme environmental conditions (dust, water, heat)
• Installation in any position

Lubrication over long periods

• Individually adjustable operating time
• Possible operating range up to 36 months
• Lubrication device for minimum quantities e. g. at 3 years operating time: 40 cm3 per year

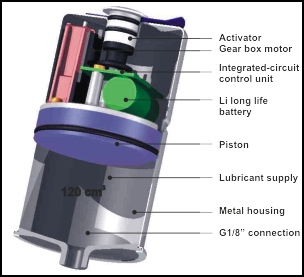

The MicroMax 120 is an electro-mechanical lubricator for automatic lubrication with grease or oil. The aluminium body of the MicroMax 120 contains 120 cm³ of lubricant. A linear progressive piston pushes the lubricant through the outlet to the lubrication point. The forward motion of the piston is generated by a geared motor and a spindle drive. The control of this motion as well as the activation and control of the gear motor is governed by a micro processor. A fixed, non-removable lithium battery supplies the electronic circuit and motor with power. The maximum operating time of the MicroMax 120 is three years.

Duration: 18 months
Lubricant: Grease Grizzly No. 1
We recommend a maximum storage 6 months






Lubricant Consult GmbH, Gutenbergstraße 13, 63477 MAINTAL (GERMANY), +49 6109/7650-0, [email protected], www.lubcon.com
