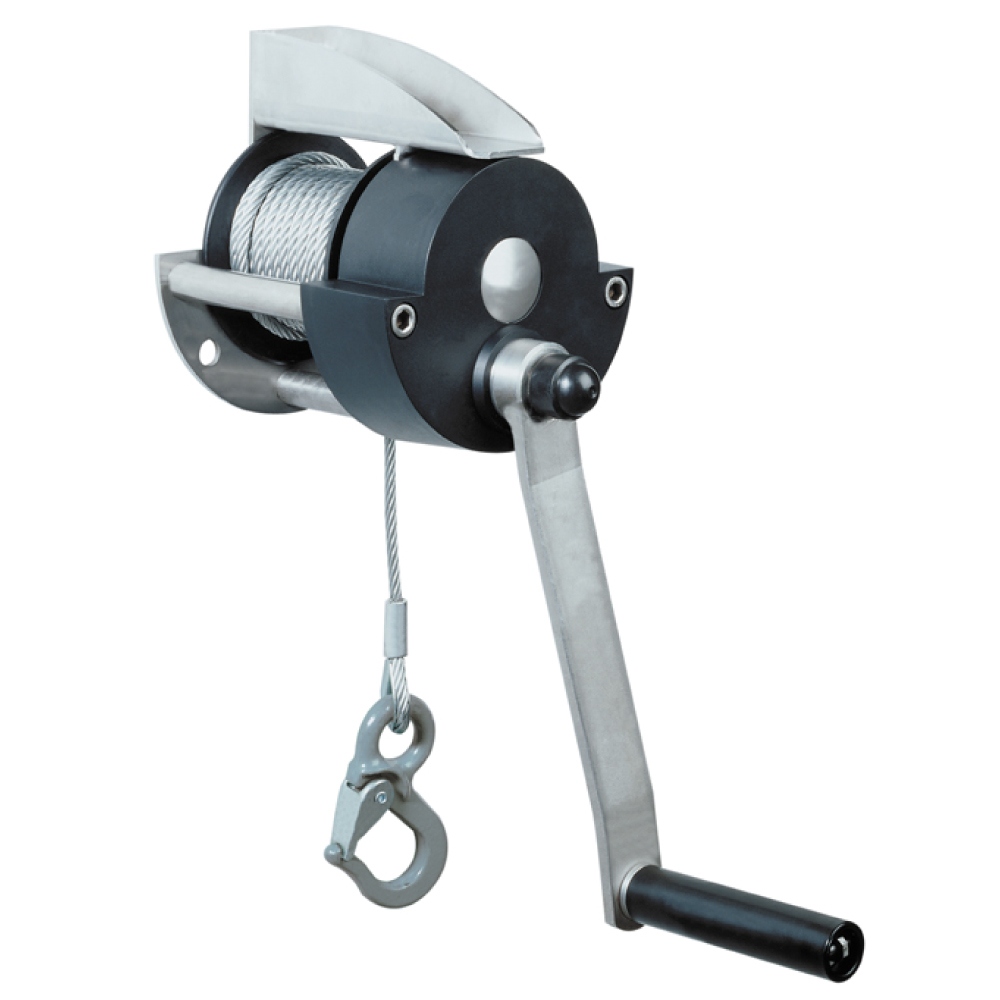

Haacon TANGO Wall-mounted winch WV 300kg 4mm

Haacon TANGO Wall-mounted winch WV 300kg 4mm

€ 423.58 423.58 incl. VAT (355.95 excl. VAT), per piece *

Availability: Available

Packaging unit: 1 piece

More…

Manufacturer: Hacoon

Country of origin: DE/0004

Customs tariff number: 84253900

Weight per piece: 10.0 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

six - six = ?

( Examples: two + three = 5, three - five = -2 )

Wall cable winch type Tango 300kg 4mm

Characteristics

Corrosion resistant
Large rope holder
Direction-independent rope exit
Encapsulated housing
Self-locking
Folding crank handle

Technical specifications

Material	Steel
Drum type	Smooth
Rope included	No
Surface treatment	Galvanized
Max. operating temperature	50 °C
Min. operating temperature	-20 °C
Rope diameter	4,00 mm
Minimum Load	30,00 kg
Crank force	160,00 N
Lift per crank rotation	64,00 mm
Perm. load capacity 1st stage	300,00 kg
Perm. load capacity top pos.	185,00 kg
Drum diameter	60,00 mm
Rope capacity	29,00 m

haacon-tango-wall-mounted-winch-wv-tds-datasheet-en.pdf (659.40 KB)

Property	GTIN/EAN	MPN (Manufacturer Part Number)
-	-	15181000015048

* Price in Euro including VAT, plus forwarding charges.
In parentheses: price in Euro excluding VAT, plus forwarding charges.
Clients outside the EU as well as companies outside of Germany don't pay any VAT (excepting for shipping in Germany)!
