Klübermatic KD hand sprayer

Klübermatic KD hand sprayer

€ 1011.44 1,011.44 incl. VAT (849.95 excl. VAT), per piece *

Availability: shipping in 4-6 weeks

Packaging unit: 1 piece

Manufacturer: Klüber

Country of origin: DE/0004

Customs tariff number: 84248970

Weight per piece: 12.0 kg

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

four - six = ?

( Examples: two + three = 5, three - five = -2 )

Benefits for your application

Low investment costs
High reliability
Easy handling - no special training required for operation
High flexibility - shoulder strap provided for ease of transport (weight with complete fill: approx. 11 kg)
Corrosion-resistant materials – long equipment life
Not subject to EC pressure equipment – no regular pressure inspection required sure equipment directive

Description

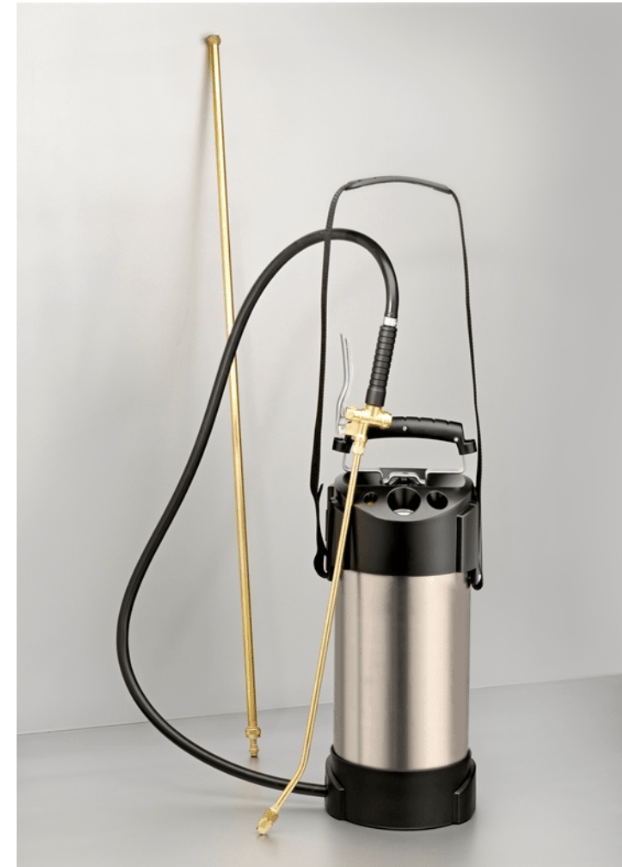

The manual spraying equipment comprises a stainless steel reservoir and a hand pump used to build up a compressed air
cushion above the lubricant level up to a maximum operating pressure of 6 bar.
In addition to the standard spraying tube of 450 mm with a bent nozzle end, an extension tube is provided that can be
continuously adjusted from 1070 to 2000 mm. The usability of the equipment has been tested, and it has been adjusted to the
requirements in practice. It does not require a stationary compressed air connection. Klübermatic KD is TÜV and GS certified.

Application

Klübermatic KD is primarily used for loose kiln riding rings lubricated with WOLFRACOAT C FLUID.

Application notes

The built-in air pump is screwed out anti-clockwise to fill the pressure vessel.
Caution: Prior to filling, the lubricant container should be well shaken to activate the solid lubricants.
When the pressure vessel has been filled with lubricant (5 l max.), the air pump is fitted again and screwed fast to ensure an air-tight seat.
For safety during transport, the air pump handle can be locked.
Do not screw fast too tight to facilitate release when activating the pump.

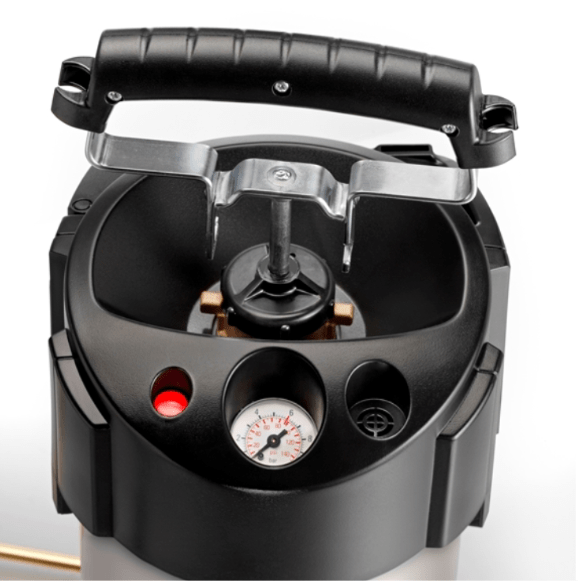

The pump is used to build up a compressed air cushion. The maximum permissible pressure is 6 bar, which can be checked
on the pressure gauge, red mark. Upon pumping, Klübermatic KD is ready for use.
The lubricant jet is activated by brief actuation of the hand valve.
The jet nozzle is directed onto the friction point, i.e. the inside of the kiln riding ring.
If the pressure inside the pressure vessel exceeds 6 bar, the safety relief valve must open automatically.
To relieve the pressure manually - e.g. when the pump is to be dismounted for refilling –– open the dearation valve.

Refilling
Press red button of the deaeration valve and keep depressed until complete pressure relief; monitor pressure relief on pressure gauge.
