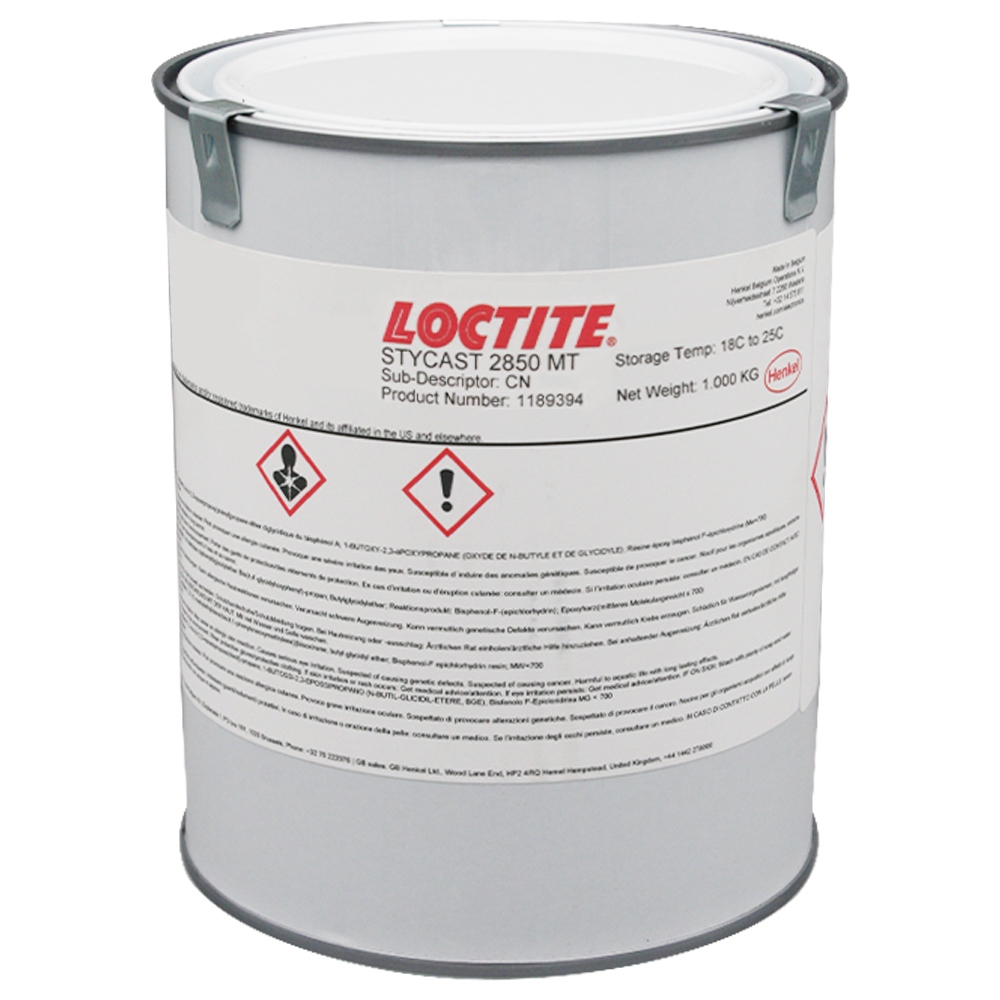

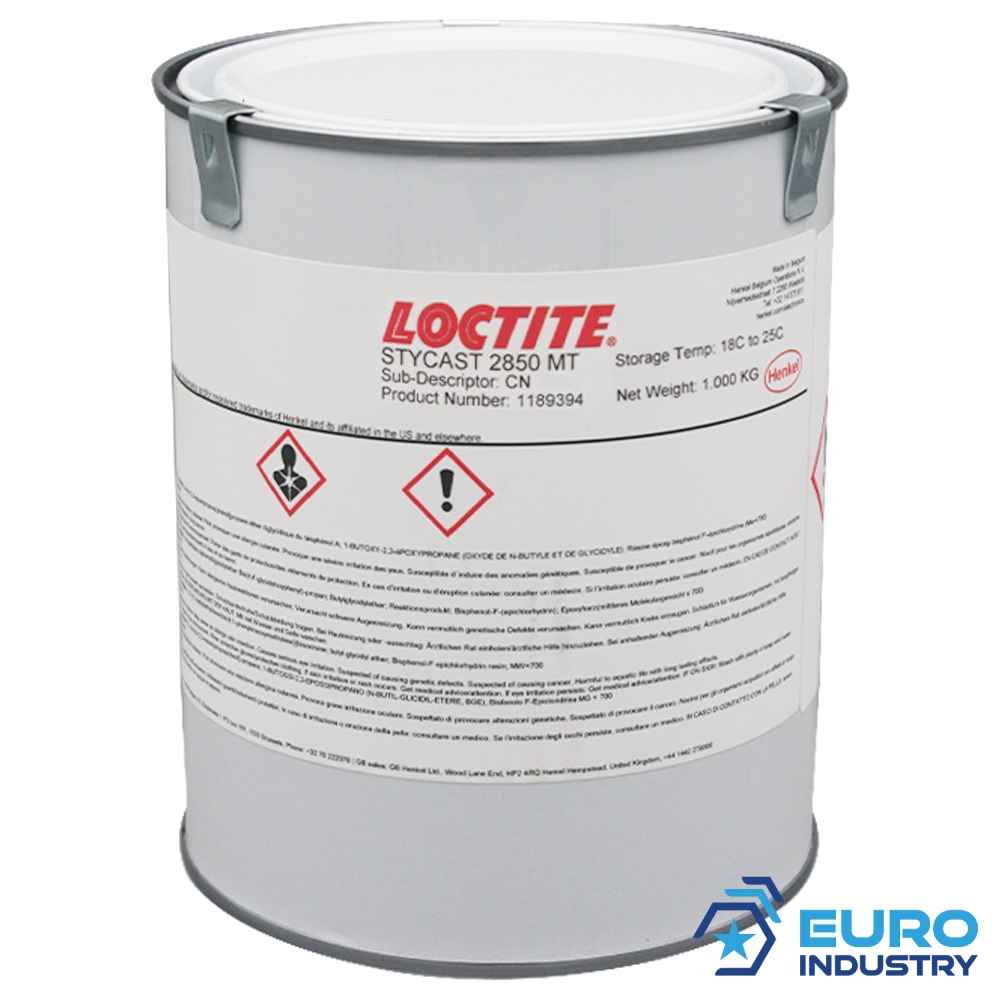

Loctite Stycast 2850 MT Electrically insulating encapsulant 1kg

Loctite Stycast 2850 MT Electrically insulating encapsulant 1kg

€ 190.34 190.34 incl. VAT (159.95 excl. VAT), per piece *

Availability: on request

Packaging unit: 1 piece

More…

Manufacturer: Henkel

Country of origin: US/0400

Customs tariff number: 35061000

Weight per piece: 1.2 kg

Recommend this product

Questions about the product

The product description does not help you?
No problem. Simply fill out the form and we will answer you as soon as possible.

Questions about the product

Title ×

Mr. Ms.

First name ×

Last name ×

e-mail ×

Telephone

Message ×

The fields marked with (×) are required.

Security (ANTI-SPAM)

eight - seven = ?

( Examples: two + three = 5, three - five = -2 )

LOCTITE® Stycast 2850 MT Electrically insulating encapsulant

LOCTITE STYCAST 2850 MT is a two component, electrically insulating general purpose encapsulant. It is recommended for encapsulation of components that require heat dissipation and thermal shock properties. It is also recommended for use in high voltage applications where surface arcing or tracking is a concern. It has a slightly grainy consistency due to the filler size.

Application

Recommended for encapsulation of components that require heat dissipation and thermal shock properties.

Characteristics

High thermal conductivity
Low CTE
Long pot life
Excellent chemical resistance
Good physical and chemical properties at elevated temperatures

Technical specifications

Technology	Epoxy
Appearance (Resin)	Blue
Components	Two components - requires mixing
Mix Ratio, by weight - Material:Catalyst	100 : 3
Mix Ratio, by Volume - Material:Catalyst	100 : 7.5
Operating Temperature Range	-55 to +155ºC
Cure	Heat cure
