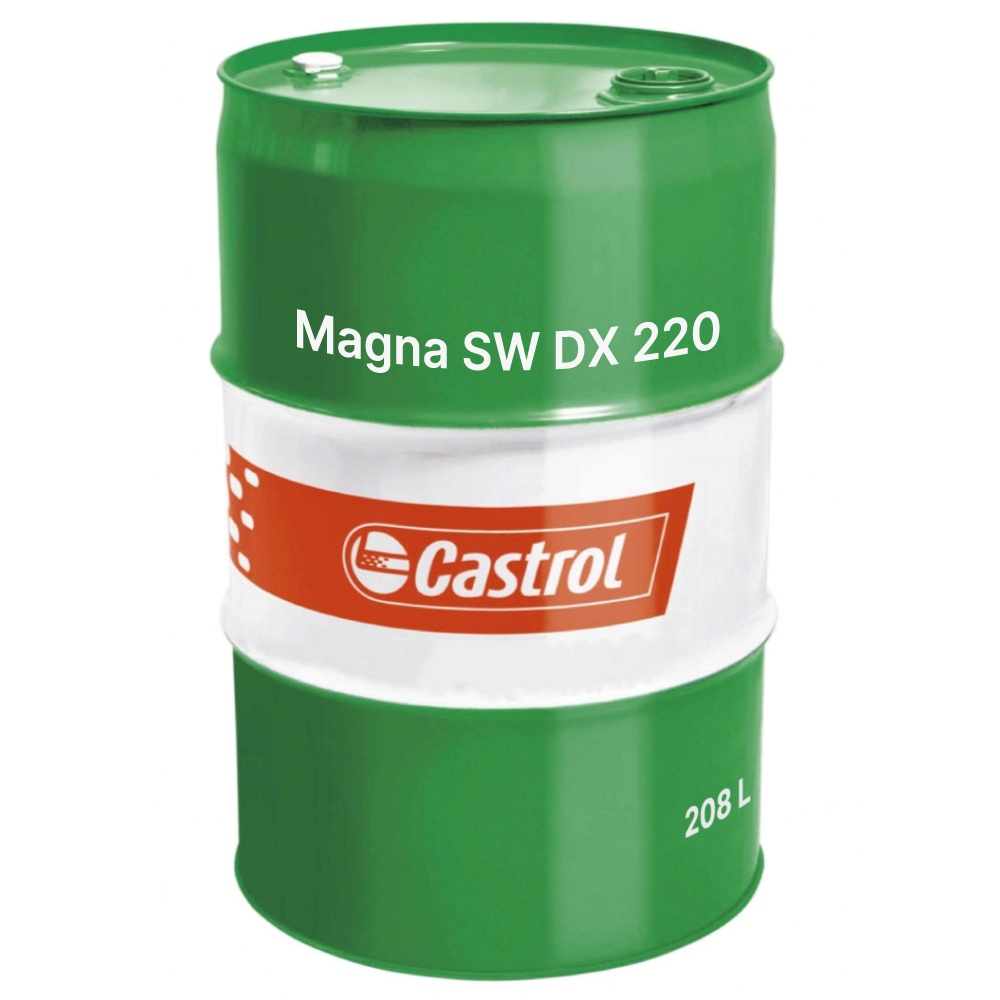

Castrol Magna SW DX 220 Slideway Oil type CGLP for machine-tools 208L
€ 1047.14 1,047.14 incl. VAT (879.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Castrol
Country of origin: DE/0004
Customs tariff number: 27101999
Weight per piece: 208.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
Castrol Magna SW DX 220 is a slideway oil (ISO VG 220, CGLP, ISO-L-G) based on highly refined mineral oil with an extreme pressure and lubricity additive package, designed for the lubrication of horizontal and vertical slideways on machine tools.
- Pack size: 208 L drum
- Also available in: 20 L canister
Applications
- For horizontal and vertical slideways on machine tools
- Suitable where a high quality demulsifying lubricant is required for slideway protection and to maximise coolant life
- Suitable for planers, grinders, horizontal boring machines, shapers, jig borers and milling machines
- Especially suitable for plastic coated guideways
Standards & approvals
- Cincinnati Lamb (Milacron) P-47, P-50 and P-53 (depending on viscosity grade)
- DIN 51517-3 CLP
- DIN 51524-2 HLP
- DIN 51502 CGLP
- ISO 6743-13 ISO-L-G
Features
- Exceptional frictional characteristics help prevent stick-slip even under high loads and support repeatable machining accuracy
- Excellent demulsifying and adhesive properties help prevent mixing with water miscible cutting fluids and reduce washing off of the lubricating film
- Helps minimise extrusion and washing off of the lubricating film during use
- Reliable protection against staining and corrosion
- Very good filtration property helps keep filters unblocked
Technical data
| manufacturer number | 1591A7 |
| MSDS number | 469007 |
| ISO Viscosity Grade (ISO 3448) | 220 |
| Colour - Saybolt (ASTM D156 / ISO 2049) | 2.5 |
| Density @ 15°C / 59°F (ASTM D4052 / ISO 12185) | 0.89 g/ml |
| Kinematic Viscosity @ 40°C / 104°F (ASTM D445 / ISO 3104) | 219 mm²/s |
| Kinematic Viscosity @ 100°C / 212°F (ASTM D445 / ISO 3104) | 18.8 mm²/s |
| Viscosity Index (DIN ISO 2909) | 96 |
| Flash Point - open cup method (ASTM D92 / ISO 2592) | 260 °C / 500 °F |
| Pour Point (ASTM D97 / ISO 3016) | -12 °C / +10 °F |
| Neutralisation Number (ASTM D974 / ISO 6618) | 0.5 mgKOH/g |
| Copper corrosion, 3 hrs @ 100°C / 212°F (ASTM D130 / ISO 2160) | 1b |
| Rust test - distilled water, 24 hrs (ASTM D665A / ISO 7120) | 0 - A |
| Wear Protection FZG A/8.3/90 (ISO 14635-1) | > 12 Load Stage |
Product description
Castrol Magna SW DX 220 is formulated for machine tool slideway lubrication where controlled friction behaviour, adhesion and demulsifying performance are required. It is designed to reduce stick-slip motion, support machining accuracy and help extend coolant life.
Handling & storage
- Keep the container or drum tightly sealed.
- Store in a cool, dry place away from direct sunlight.
- Prevent exposure to frost and avoid water ingress.
- For optimum product stability, indoor storage between 5°C and 45°C is preferable.
BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 4008177091353 | 1591A7 |
