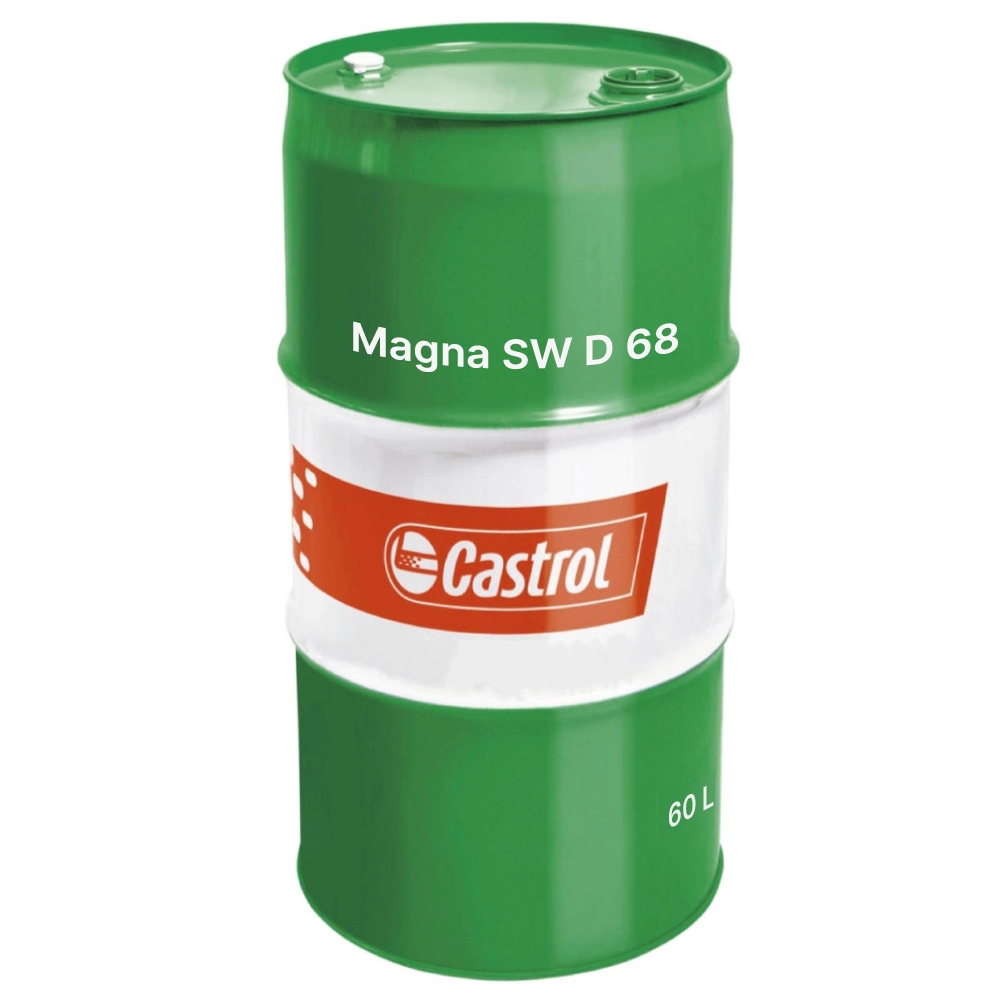

Castrol Magna SW D 68 Slideway Oil type CGLP for machine tools 60L
€ 327.19 327.19 incl. VAT (274.95 excl. VAT), per piece *
Availability: Available
Packaging unit: 1 piece
Manufacturer: Castrol
Country of origin: DE/0004
Customs tariff number: 27101999
Weight per piece: 66.0 kg
No problem. Simply fill out the form and we will answer you as soon as possible.
Castrol Magna™ SW D 68 is a slideway oil (ISO VG 68, CGLP) based on highly refined mineral oil and formulated for the lubrication of horizontal and vertical machine-tool slideways where a demulsifying lubricant is required.
- Pack size: 60 L barrel
- Also available in: 20 L canister, 208 L drum
Applications
- For horizontal and vertical slideways on machine tools
- For applications where a high quality demulsifying lubricant is required for slideway protection and to maximize coolant life
- Suitable for planers, grinders, horizontal boring machines, shapers, jig borers and milling machines
- Especially suitable for plastic coated guideways
Standards & approvals
- Cincinnati Machine P-47
- DIN 51524-2, HLP
- CGLP according to DIN 51502
Features
- Excellent demulsification and compatibility with metalworking fluids
- High load carrying capacity to help prevent wear of highly loaded slideways
- Frictional characteristics designed to help prevent stick-slip
- Good adhesion to help resist squeeze-out of the lubricant
- Corrosion protection and ageing resistance
- Very good filtration properties
Technical data
| ISO Viscosity Grade (ISO 3448) | 68 |
| Density @ 15°C / 59°F (ASTM D4052 / ISO 12185) | 0.88 g/ml |
| Kinematic Viscosity @ 40°C / 104°F (ASTM D445 / ISO 3104) | 68 mm²/s |
| Kinematic Viscosity @ 100°C / 212°F (ASTM D445 / ISO 3104) | 8.6 mm²/s |
| Viscosity Index (ASTM D2270 / ISO 2909) | 101 |
| Pour Point (ASTM D97 / ISO 3016) | -28 °C / -18 °F |
| Flash Point - open cup method (ASTM D92 / ISO 2592) | 246 °C / 475 °F |
| Rust test - distilled water, 24 hrs (ASTM D665A / ISO 7120) | Pass |
| Rust test - synthetic seawater, 24 hrs (ASTM D665B / ISO 7120) | Pass |
| Copper corrosion, 3 hrs @ 100°C / 212°F (ASTM D130 / ISO 2160) | 1b |
| Four Ball Wear test - Wear Scar Diameter, 400N / 75°C / 1200 rpm / 1 hr (ASTM D2266) | 0.35 mm |
| Four Ball Weld Load test - Weld Point (ASTM D2783) | ≤ 200 kgf |
| Stick-slip ratio (Cincinnati Machine) | < 0.80 |
| Cincinnati Machine Specification | P-47 |
Product description
It is formulated to provide constant glide behaviour, adhesion, wear protection, corrosion protection and resistance to ageing in machine-tool slideway applications.
Handling & storage
- Keep the container tightly sealed.
- Store in a cool, dry place away from direct sunlight.
- Prevent exposure to frost.
- Avoid water ingress.
- For optimum product stability, indoor storage between 5°C and 45°C is preferable.
BP Europa SE, Erkelenzer Straße 20, 41179 Mönchengladbach, GERMANY, +49 800 7235 074, [email protected], www.bp.com
| Property | GTIN/EAN | MPN (Manufacturer Part Number) |
|---|---|---|
| - | 4008177167928 | 15F44E |
